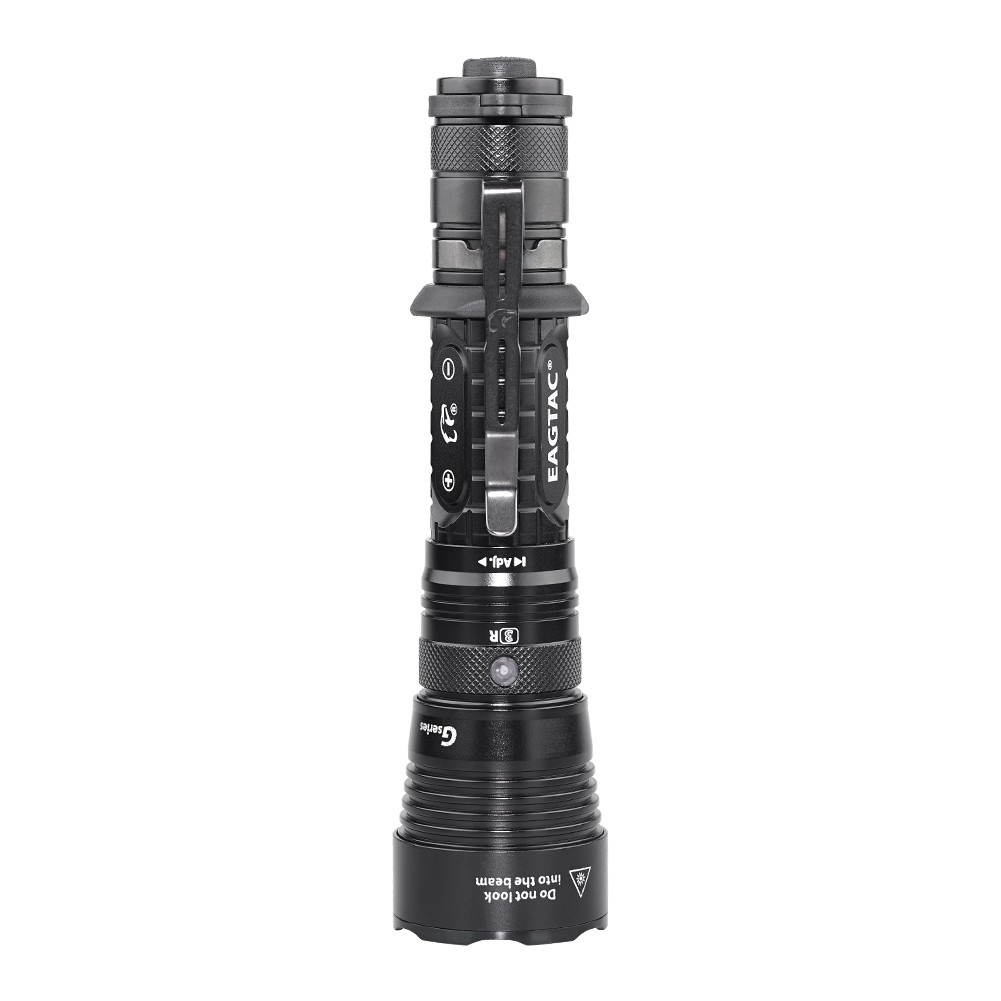

G3L

  • 3200 LED lumen powered by XHP70.2 LED
  • Type-C USB rechargeable; Battery level indicator
  • Three brightness levels; Four hidden AUX modes; Programmable tailcap strobe feature
  • Pre-select any output for start-up; Momentary on-off
  • Programmable medium and low brightness level
  • Tactical forward clicky tailcap switch
  • Uses protected 18650 li-ion battery (included)
  • 269 yards / 247 meters maximum beam distance
  • Up to 1 hrs on MAX output, 135 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

CREE XHP70.2 P2 Cool White LED

Max output

3200 LED lumen / 2600 ANSI lumen

Center lux @ 1 meter

15,200 lux

Beam distance

269 yards / 247 meters

Output levels

3200-2000/1350/950/455/115/60/18 LED lumen /2600-1650/1125/790/385/98/50/15 ANSI lumen

Runtime

0.6-1/1.5/2.4/4.9/22/42/135 hours

Battery
Battery Type

18650*1

Battery included

Built-in rechargeable

Operating voltage

2.7V – 4.2V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

Disorienting strobe/Flash/S.O.S./Beacon

Dimensions
Body Diameter

1 inch (25.4 mm)

Head Diameter

1.6 inches (39.5 mm)

Length

6.2 inches (157 mm)

Weight w/ battery

6.6 ounces (189 grams)

Constructions
Flashlight Body Material

HAIII hard anodization aerospace aluminum

Lens

Harden waterwhite glass lens with anti-reflective coating on both side

Reflector

Smooth aluminum reflector

Waterproof

IPX-8

Optional LED1
LED (1)

CREE XHP70.2 N4 Neutral White LED

Max output (1)

2976 LED lumen / 2418 ANSI lumen

Center lux @ 1 meter (1)

13100 lux

Beam distance (1)

250 yards / 229 meters

Output levels (1)

2976-1860/1256-884-423/107-56-17 LED lumen / 2418-1535/1046-735-358/91-47-14 ANSI lumen

Runtime (1)

0.6-1/1.5-2.4-4.9/22-42-135 hours

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light by pressing the tailcap button until it clicks.
  • Twist the head to select between three output levels.
  • Pre-selected output level before turning on the light.
  • Cycle through auxiliary modes: tight the head (1st level), and loose the head (3rd level) and then tight the head within one second to enter auxiliary setting. Repeat to cycle through all settings. Turn off the light or loose the head to quit.



Advanced operations:

  • Choose one of the four levels as the default medium output: Switch to medium output and turn the flashlight on and off for 20 times to cycle through the next output setting.
  • Choose one of the four levels as the default low output: Switch to low output and turn the flashlight on and off for 20 times to cycle through the next output setting.
  • Tail strobe feature (off by default): With this enabled, you can access strobe output at the tailcap switch button . To toogle this function, switch to 1st level and turn the flashlight on and off 20 times. With the tailcap strobe setting enabled, a double press of the switch button will activate the strobe output.



Charging:

  • Remove the waterproof cover and insert the included type-c charging cable to charge the battery. User must turn on the flashlight switch at the tailcap to charge.
  • Blue side LED indicates the battery is being charged. It reports charging percentage by blinking.
  • Maximum charging time for a depleted battery: 2.5-3 hrs (2600mAH 18650 li-ion), 3.5-4 hrs (3400mAh 18650 li-ion)
