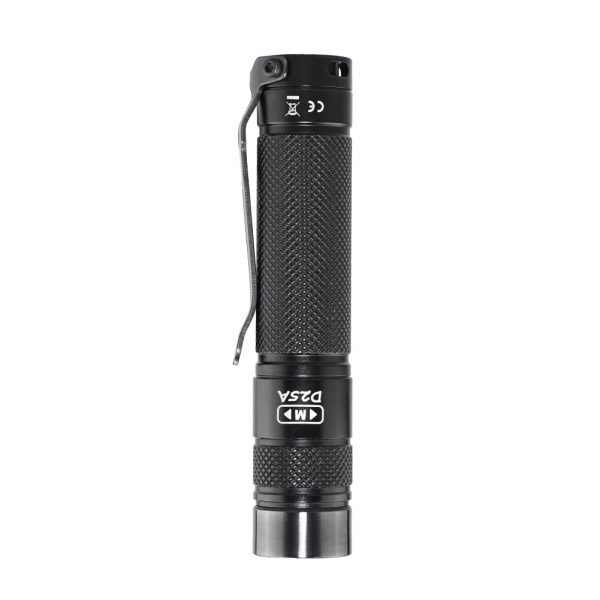

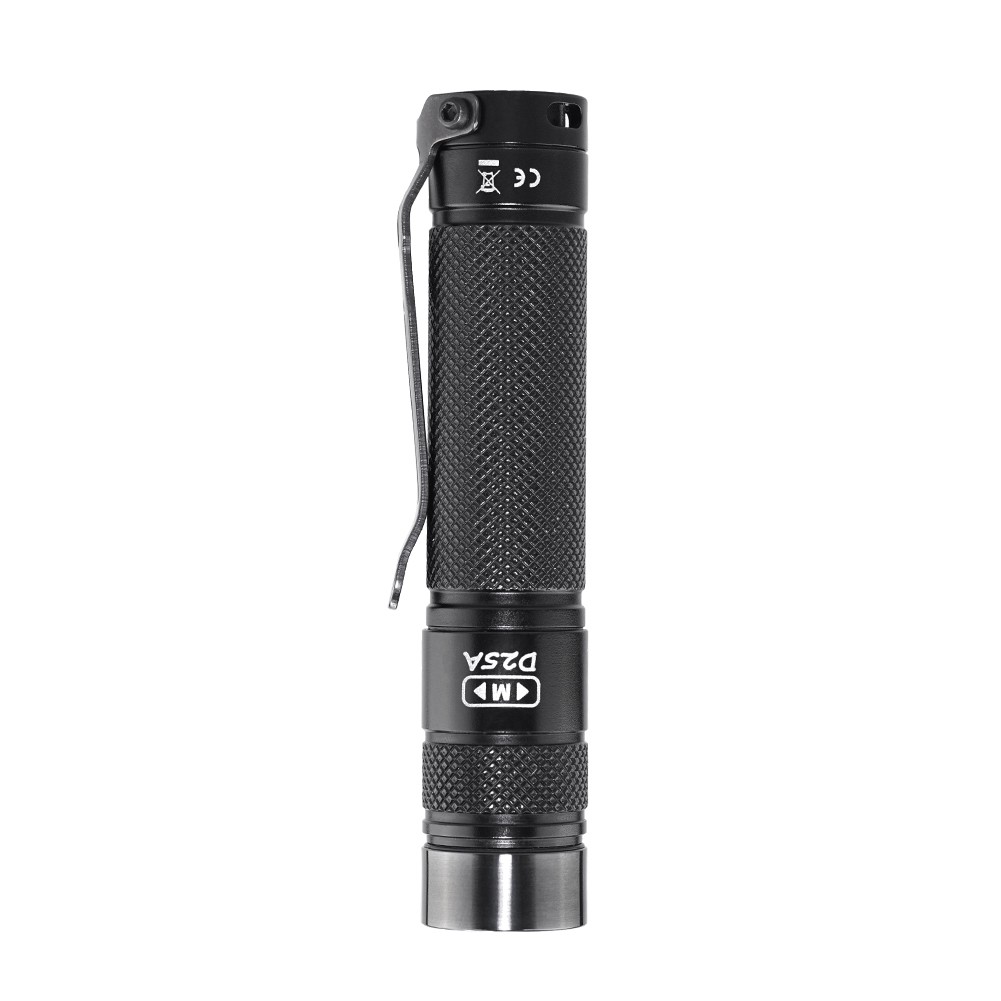

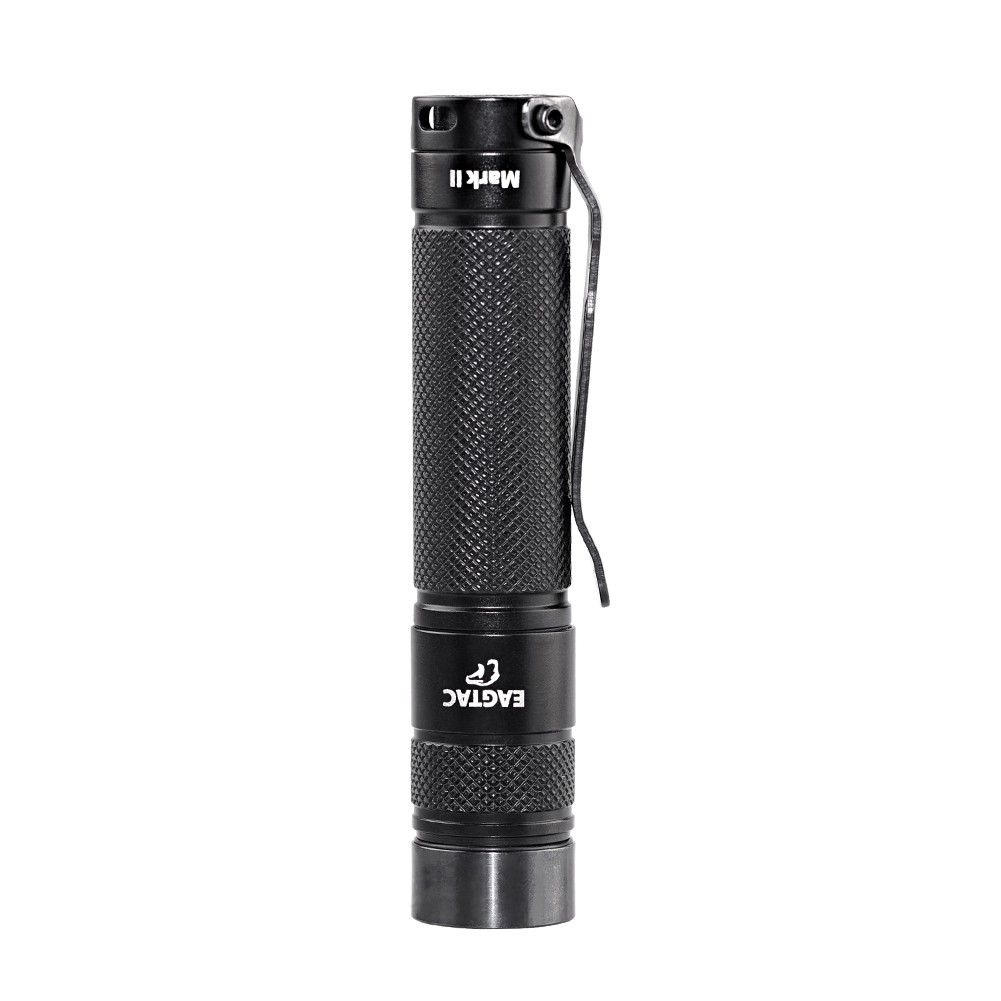

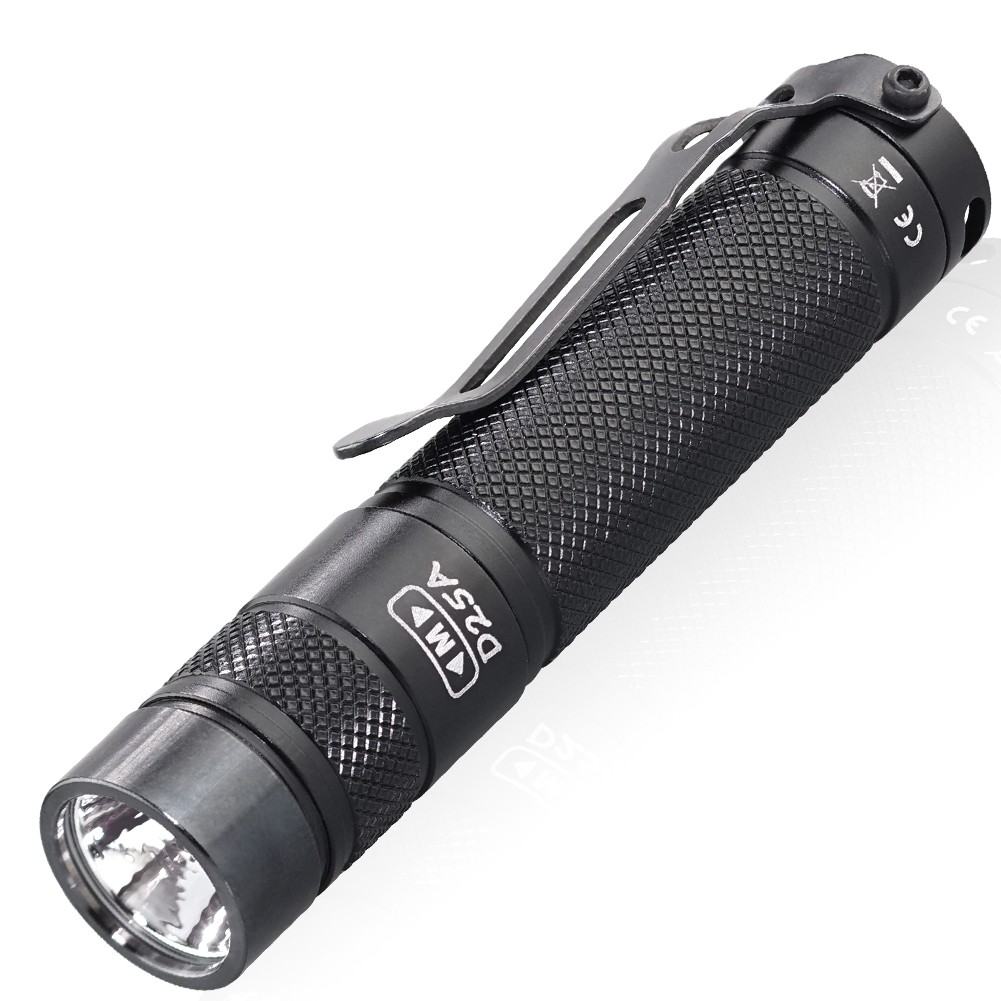

D25A Clicky MKII

  • 405 LED lumen powered by XM-L2 U4 LED
  • Five brightness levels twisty head

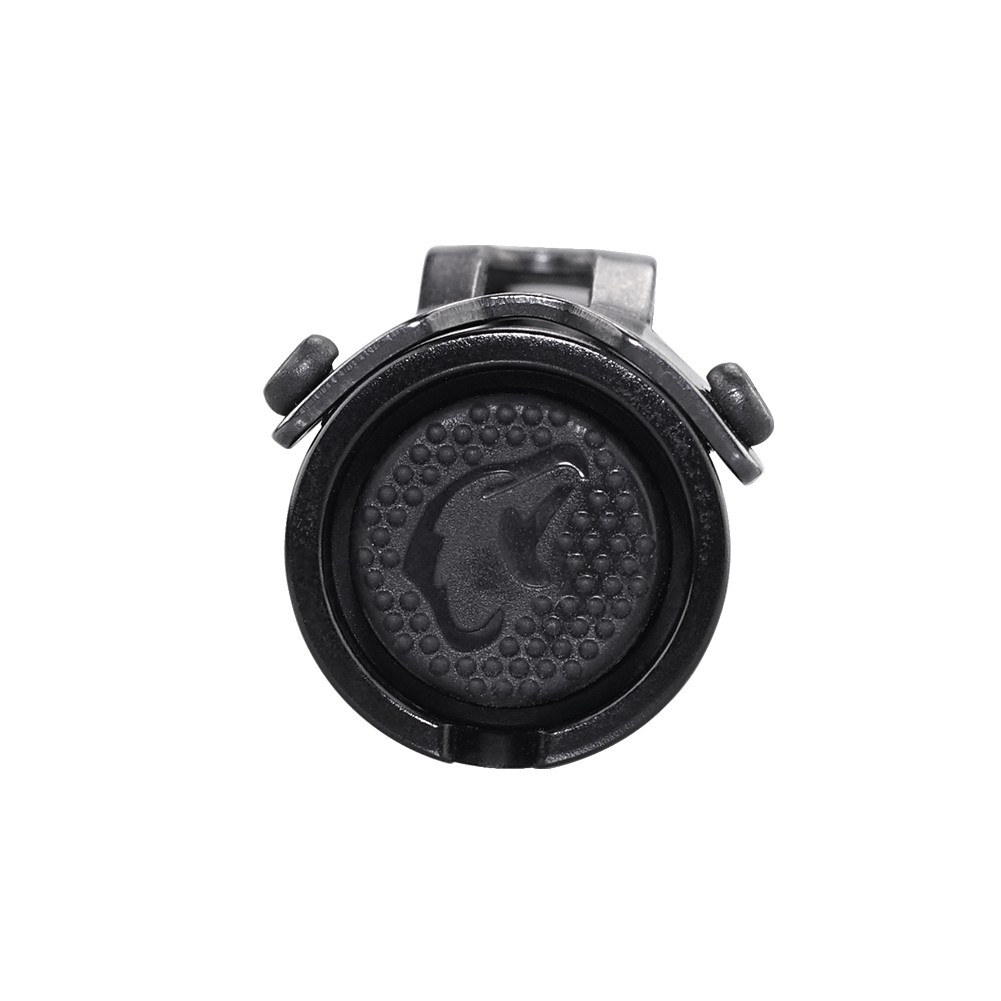

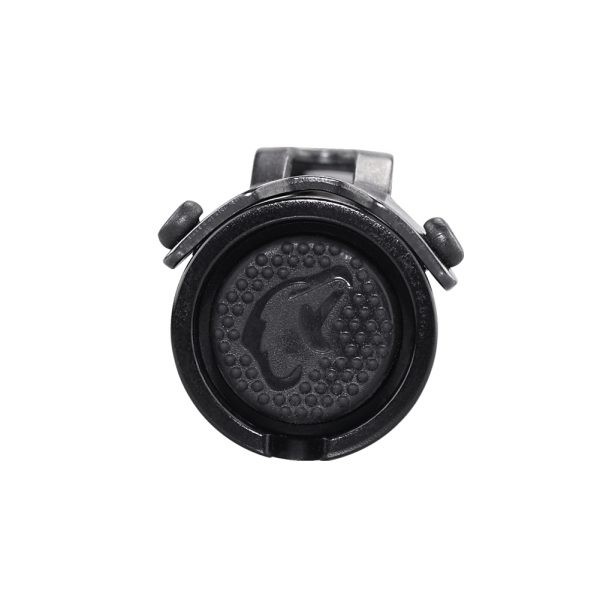

  • Reversed clicky on/off tailcap switch
  • Uses 1*AA battery
  • 76 yards / 69 meters maximum beam distance
  • Up to 1 hrs on MAX output, 150 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

CREE XM-L2 U4 (405lm)

Max output

405 LED lumen /286 ANSI lumen

Center lux @ 1 meter

1200 lux

Beam distance

76 yards / 69 meters

Output levels

405/232/16/2 LED lumen /286/167/11/2 ANSI lumen

Runtime

1/2.2/35/150+ hours

Battery
Battery Type

14500*1 | AA*1

Battery included

Built-in rechargeable

Operating voltage

0.8V – 1.7V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

Strobe(Var)/Flash(Hi)/S.O.S.(Fast)/Beacon/Flash(Lo)

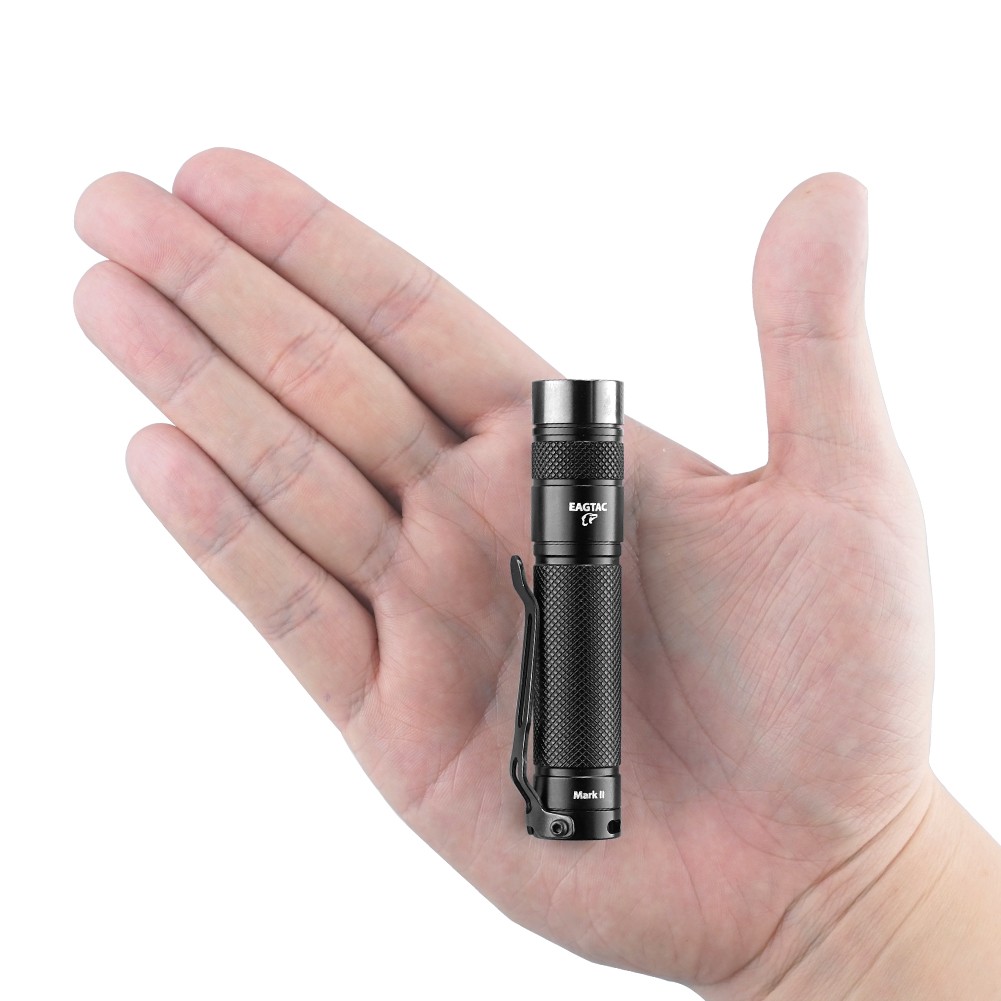

Dimensions
Body Diameter

0.65 inches (17 mm)

Head Diameter

0.7 inches (17.7 mm)

Length

3.4 inches (87 mm)

Weight w/ battery

0.85 ounces (24 grams)

Constructions
Flashlight Body Material

Lens

Reflector

Very light textured aluminum reflector

Waterproof

IPX-8

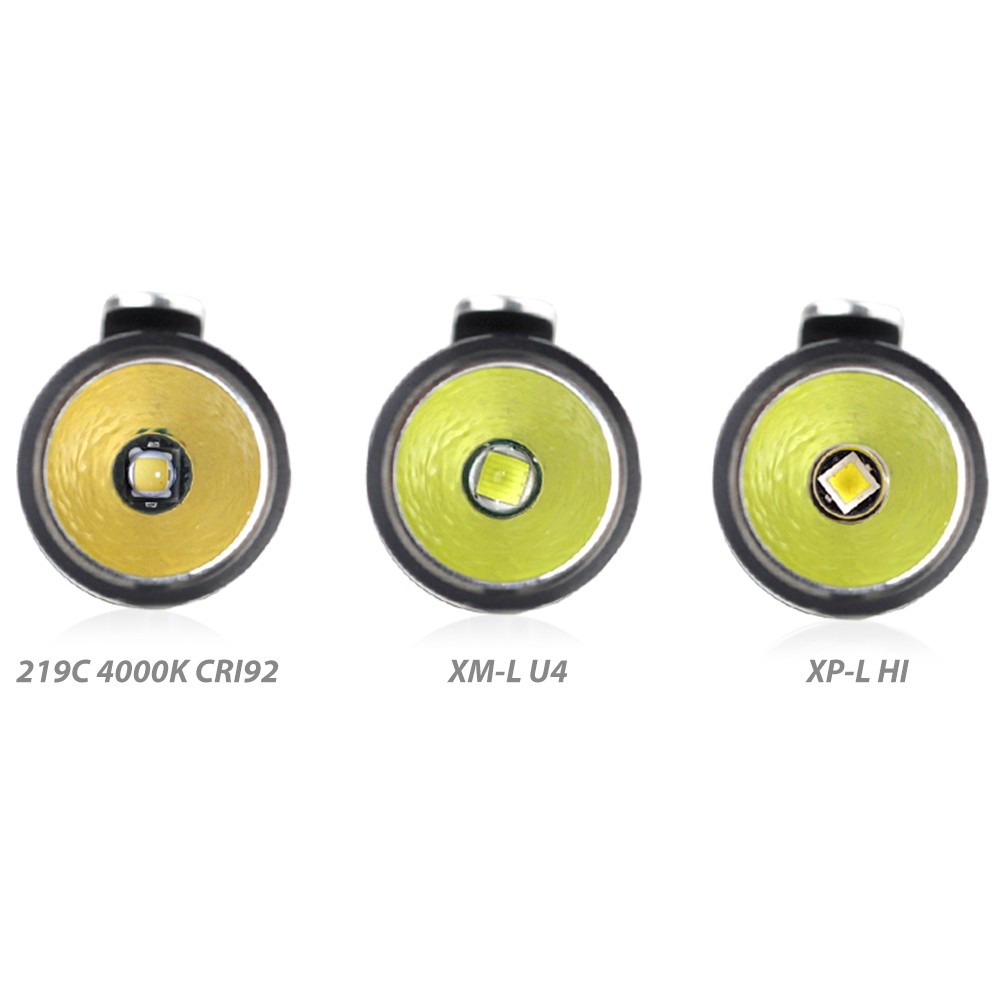

Optional LED1
LED (1)

CREE XP-L HI V3 (353lm)

Max output (1)

353 LED lumen /260 ANSI lumen

Center lux @ 1 meter (1)

2,050 lux

Beam distance (1)

99 yards / 91 meters

Output levels (1)

353/199/15/2 LED lumen /260/145/11/2 ANSI lumen

Runtime (1)

1/2.2/35/150+ hours

Optional LED2
LED (2)

Nichia 219C CRI-92 4000K D240 (275lm)

Max output (2)

275 LED lumen / 195 ANSI lumen

Center lux @ 1 meter (2)

1250 lux

Beam distance (2)

77 yards / 71 meters

Output levels (2)

275/149/13/2 LED lumen / 195/109/9/2 ANSI lumen

Runtime (2)

1/2.2/35/150+ hours

Optional LED3
LED (3)

CREE XP-G2 S3 (340lm)

Max output (3)

340 LED lumen / 240 ANSI lumen

Center lux @ 1 meter (3)

Beam distance (3)

Output levels (3)

340/199/14/2 LED lumen / 240/143/10/2 ANSI lumen

Runtime (3)

1-2.2/35/150+ hours

Picture gallery: Download
User manual: Download



How to use?

Operations:

  • Basic – Press on the switch button until it clicks to turn on the flashlight. Press the switch again until it clicks to switch off the light.
  • Access output groups 1 & 2 – Tight the head to access group 2 output. Loose the head to access group 1 output.
  • Group 1: Very low – low – med – high – Very low – low – med – high – Strobe(Constant)- Flash(Hi)- S.O.S.(Fast) – Beacon – Flash(Low) – cycle
  • Group 2: MAX – Strobe (Variable) – cycle
  • Switch between output level – With the flashlight on, slightly press the switch and release (within 1s) to switch to the next output.



User define function:

  • Three sets of output brightness level for “low” and “very low” levels – Toggle this setting starting with flashlight off and head loosen, then turn on the flashlight and switch to the lowest level, then wait for at least two seconds, then perform “head tight and loose” three times to enter next brightness set.
  • Last level memory function for group 2 (loose head) – This feature memorizes the current level when flashlight is turned off. Next time when user turns on the flashlight, it resumes at the memorized last level. Toggle this setting starting with flashlight off and head tighten, then turn on the flashlight and wait for at least two seconds, then perform “head loose and tight” three times to toggle the last level memory function.



This “How to use” instruction reflects to the latest flashlight built.
