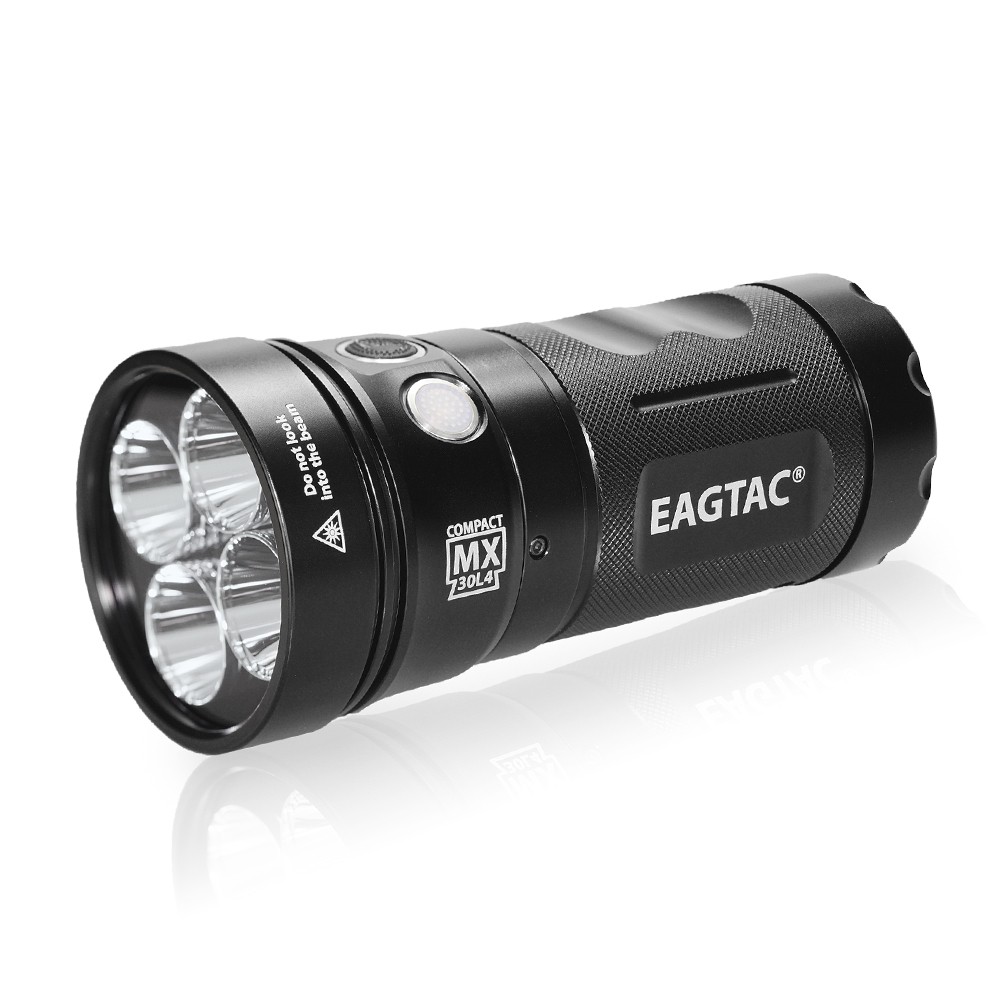

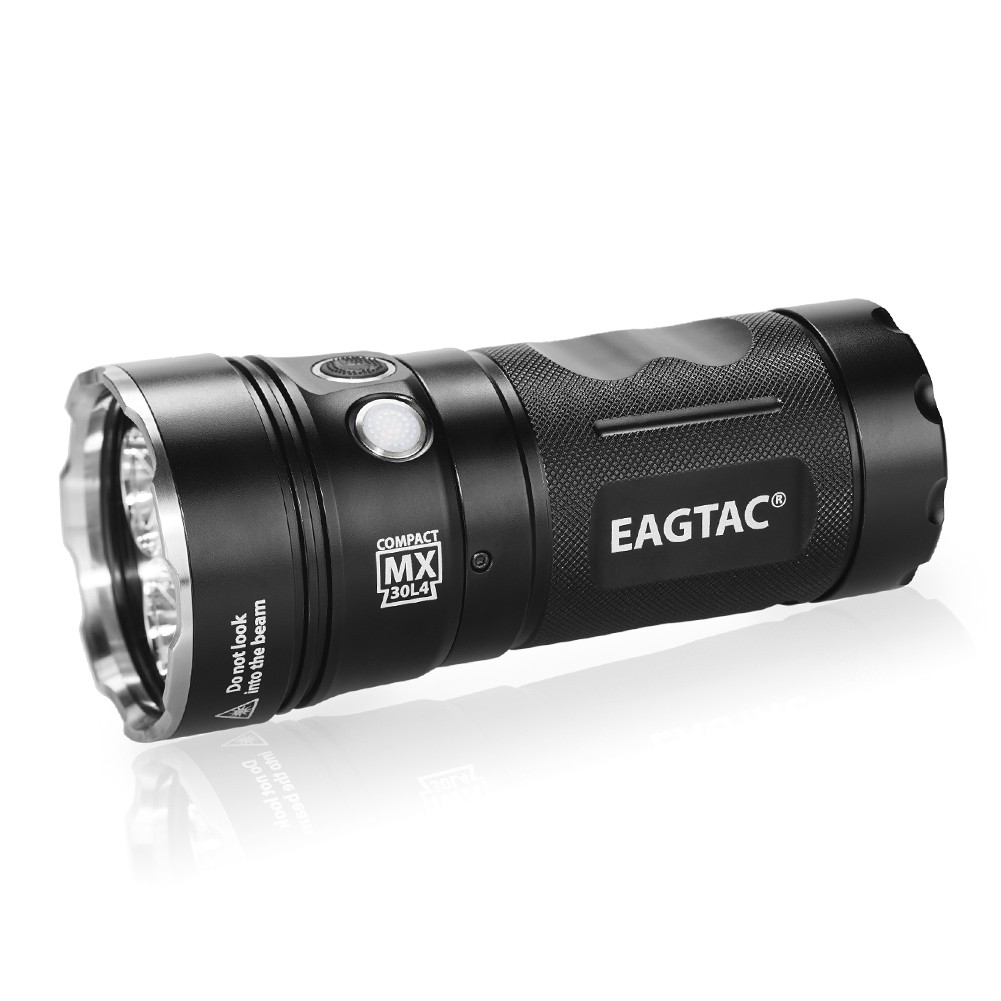

MX30L4-C

  • 4800 LED lumen powered by 4pcs CREE XP-L HI V3 LED
  • Five brightness levels, three hidden auxiliary output, pre-select MAX/MIN output

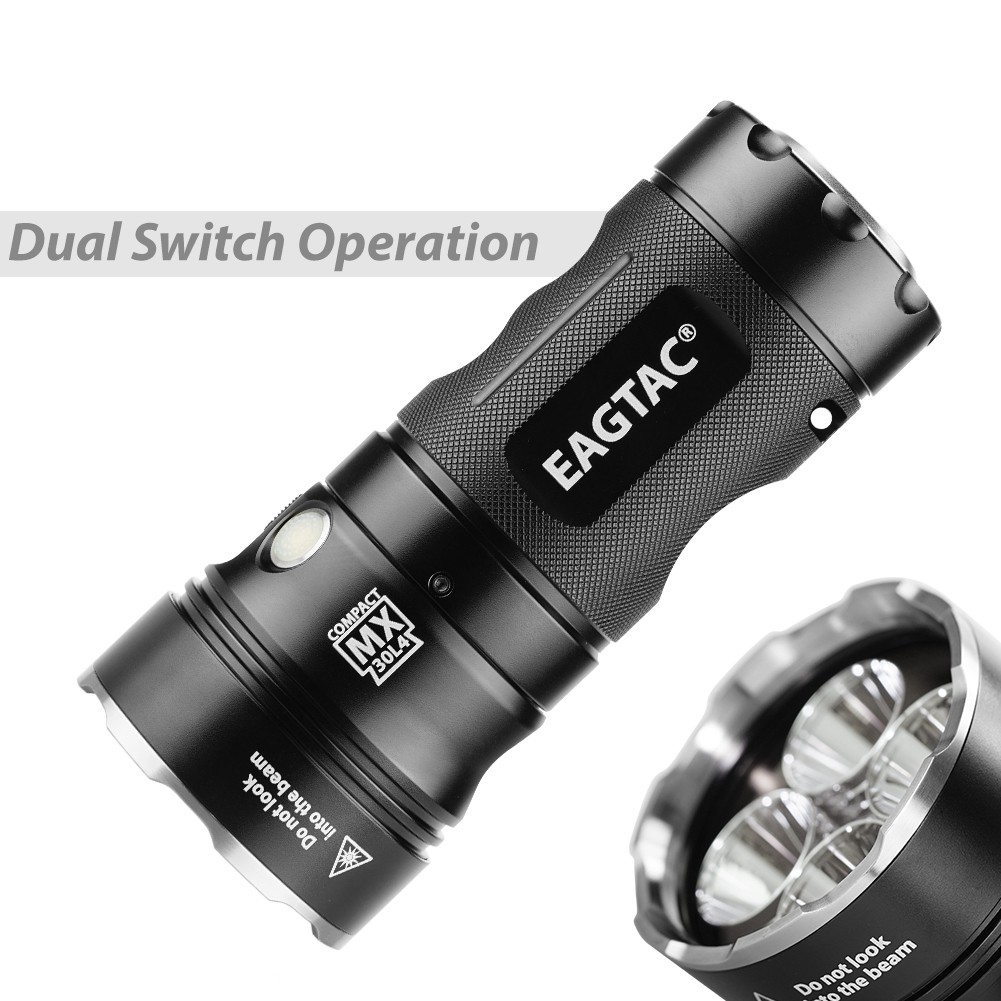

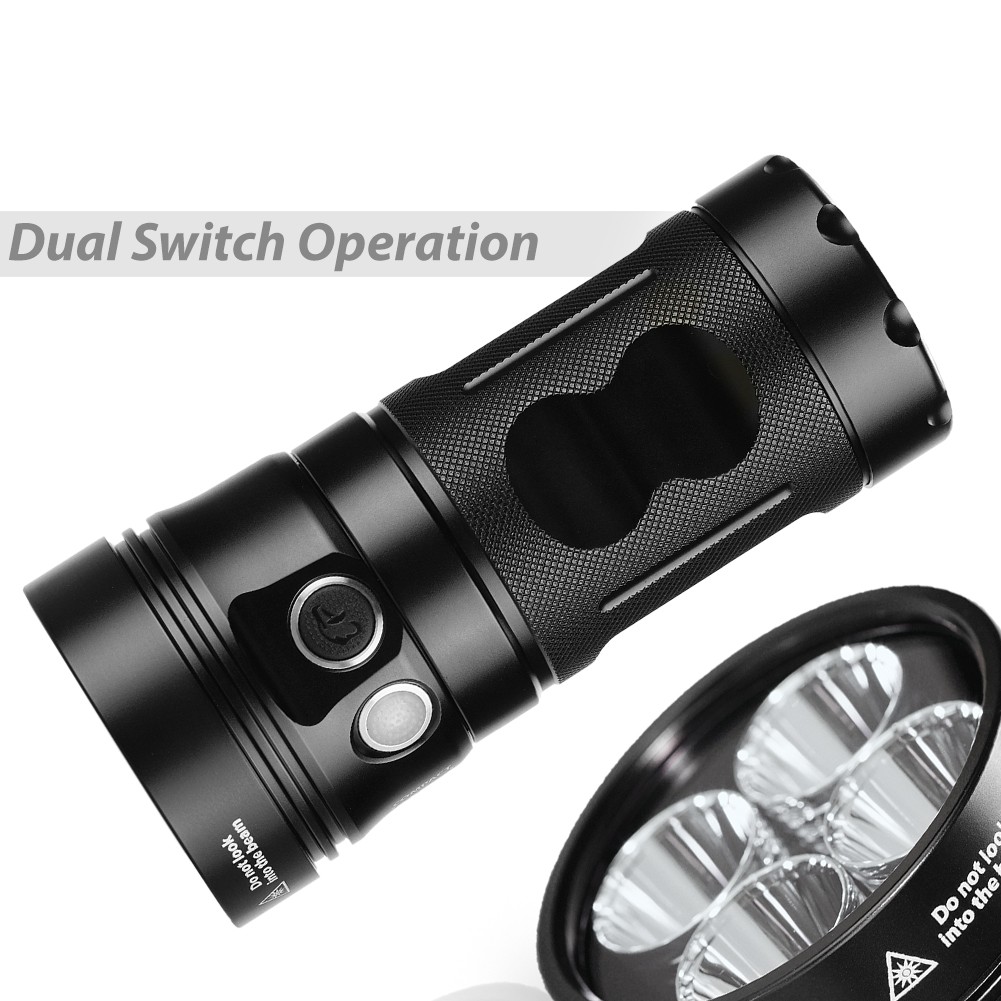

  • Dual side switches (base version)
  • Dual side switches + tailcap switch (kit version)
  • Battery level report system
  • Uses protected 4*18650 li-ion batteries
  • 692 yards / 635 meters maximum beam distance
  • Up to 1.5 hrs on MAX output, 300 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

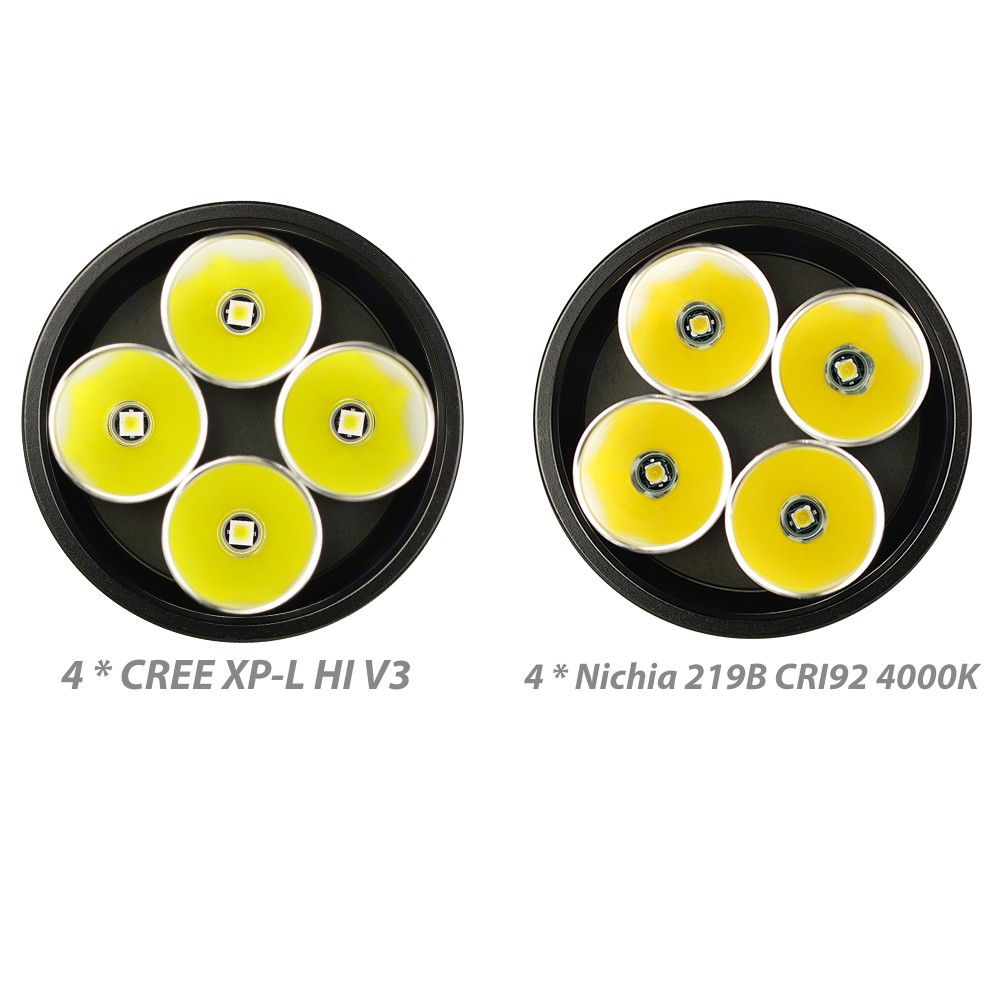

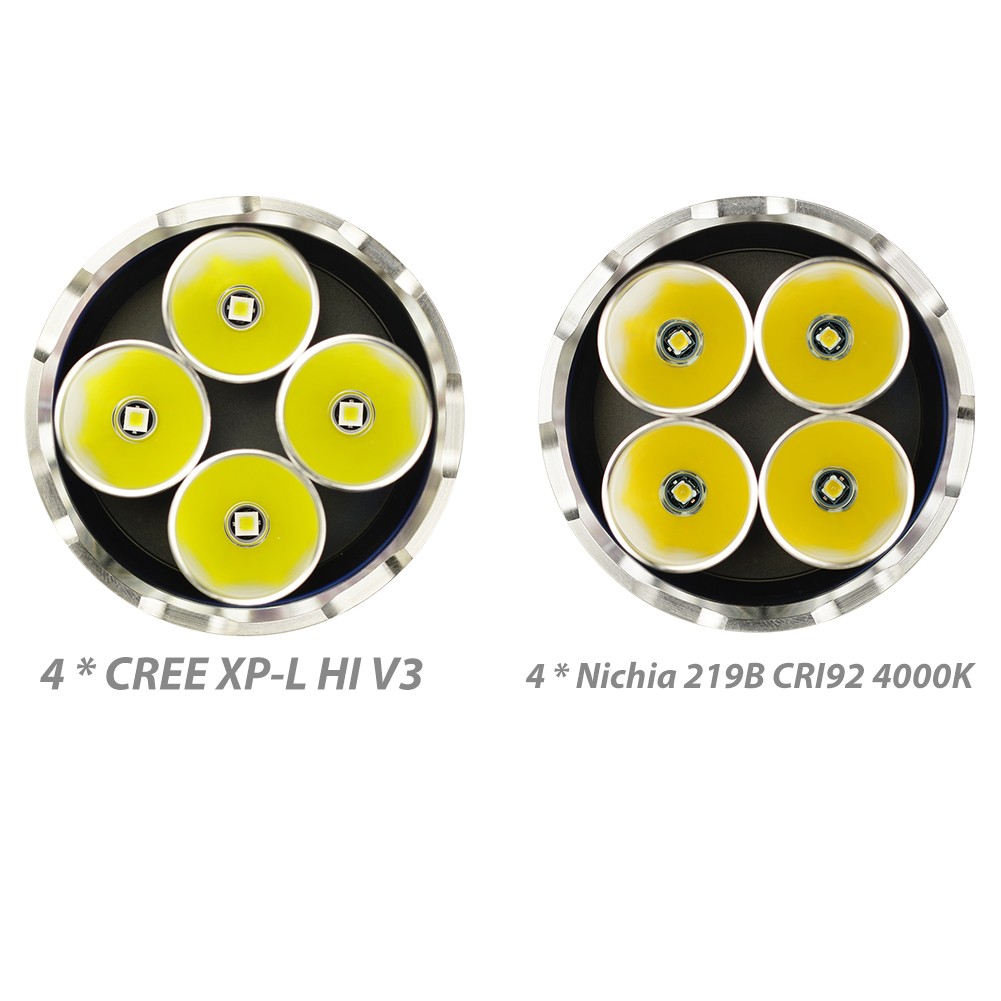

4 * CREE XP-L HI V3 Cool White LED

Max output

4800 LED lumen / 4005 ANSI lumen

Center lux @ 1 meter

100,800 lux

Beam distance

692 yards / 635 meters

Output levels

4800-3955/2660/1220/207/29 LED lumen /4005-3325/2210/1040/179/26 ANSI lumen

Runtime

1.5/2.5/6/35/300+ hours

Battery
Battery Type

18650*4

Battery included

Built-in rechargeable

Operating voltage

10V – 24V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

Disorienting Strobe/Beacon (1.67Hz)/S.O.S.

Dimensions
Body Diameter

2 inches (52 mm)

Head Diameter

2.5 inches (62 mm)

Length

5.6 inches (143 mm)

Weight w/ battery

14.7 ounces (418 grams)

Constructions
Flashlight Body Material

HAIII hard anodization aerospace aluminum

Lens

Harden waterwhite glass lens with anti-reflective coating on both side

Reflector

Smooth aluminum reflector

Waterproof

IPX-8

Optional LED1
LED (1)

4 * Nichia 219C 4000K CRI92 R9050 SW40 D240 Neutral White LED

Max output (1)

3300 LED lumen / 2915 ANSI lumen

Center lux @ 1 meter (1)

49,500 lux

Beam distance (1)

485 yards / 445 meters

Output levels (1)

3300-2770/1860/866/148/23 LED lumen /2915-2440/1640/762/132/20 ANSI lumen

Runtime (1)

0.7/1.3/3.1/22/200+ hours

Optional LED2
LED (2)

4 * CREE XP-L HI V2 Neutral White LED

Max output (2)

4464 LED lumen / 3725 ANSI lumen

Center lux @ 1 meter (2)

95,100 lux

Beam distance (2)

672 yards / 617 meters

Output levels (2)

4464-3678/2474/1135/193/27 LED lumen / 3725-2576/1730/805/138/21 ANSI lumen

Runtime (2)

1.5/2.5/6/35/300+ hours (4×18650)

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light at MAX output by pressing the BLACK button switch. Turn on the light at LOWEST output by pressing the WHITE button switch.
  • To turn off the light anytime, press and release the BLACK button switch.



Advanced operations:

  • For MAX output momentary on, press and hold the BLACK button switch for immediate output.
  • To switch between different brightness levels, press and release the WHITE button switch when the flashligh is on.
  • (For example: if you want to turn on the flashlight at the 3rd level, just press and release the white button switch three times from off.)
  • To enter hidden auxiliary levels, press and hold the WHITE button switch for 5 seconds when the flashligh is on.
  • For instant MAX output – at any output level, press and hold the BLACK button switch. Release the button to return to previous level.
  • For instant Strobe output – at any output level (even) off), double press and hold the BLACK button switch. Release the button to return to previous level (or off).
  • The optional switch button located at the tailcap is treated as the secondary BLACK switch button.
