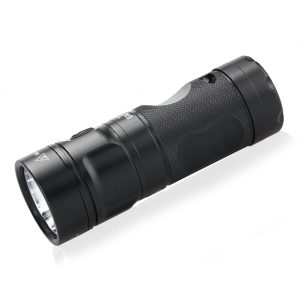

GX30A3-D

  • 1330 LED lumen powered by XP-L HI V3 LED
  • Spot only or diffuser only or spot + diffuser modes
  • Five brightness levels + three hidden AUX modes
  • Instant MAX/MIN/Strobe; Momentary on function
  • Battery level report
  • Dual side switches + tailcap switch
  • Uses 3pcs rechargeable high-drain lithium AA batteries or 3*AA
  • 492 yards / 452 meters maximum beam distance
  • Up to 1.5 hrs on MAX output, 100 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

CREE XP-L HI V3 Cool White LED+ Flood LED Array (C.W.)

Max output

1330 LED lumen / 980 ANSI lumen

Center lux @ 1 meter

51,000 lux

Beam distance

492 yards / 452 meters

Output levels

1330-1043/670/252/92/10 LED lumen /980-835/540/205/74/8 ANSI lumen

Runtime

0.9/1.4/3.8/11/100 hours

Battery
Battery Type

AA*3

Battery included

Built-in rechargeable

Operating voltage

2.7V – 6V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

Disorienting Strobe/Beacon (1.67Hz)/S.O.S.

Dimensions
Body Diameter

1.4 inches (35.5 mm)

Head Diameter

1.6 inches (39.5 mm)

Length

4.3 inches (109 mm)

Weight w/ battery

4.8 ounces (137 grams)

Constructions
Flashlight Body Material

HAIII hard anodization aerospace aluminum

Lens

Harden waterwhite glass lens with anti-reflective coating on both side

Reflector

Smooth aluminum reflector

Waterproof

IPX-8

Optional LED1
LED (1)

CREE XP-L HI V2 Neutral White LED+ Flood LED Array (N.W.)

Max output (1)

1237 LED lumen / 911 ANSI lumen

Center lux @ 1 meter (1)

Beam distance (1)

Output levels (1)

1237-970/623/234/86/9.3 LED lumen / 911-777/502/191/69/7.4 ANSI lumen

Runtime (1)

0.9/1.4/3.8/11/100 hours

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light at MAX output by pressing the BLACK button switch. Turn on the light at LOWEST output by pressing the WHITE button switch.
  • To turn off the light anytime, press and release the BLACK button switch.



Spot / Diffuser setting:

  • Press and hold the BLACK button switch and press the white button switch to cycle between i) spot, ii) diffused, and ii) all LED on setting.



Advanced operations:

  • For MAX output momentary on, press and hold the BLACK button switch for immediate output.
  • To switch between different brightness levels, press and release the WHITE button switch when the flashligh is on.
  • (For example: if you want to turn on the flashlight at the 3rd level, just press and release the white button switch three times from off.)
  • To enter hidden auxiliary levels, press and hold the WHITE button switch for 4 seconds when the flashligh is on.
  • For instant MAX output – at any output level, press and hold the BLACK button switch. Release the button to return to previous level.
  • For instant Strobe output – at any output level (even) off), double press and hold the BLACK button switch. Release the button to return to previous level (or off).
  • The optional switch button located at the tailcap is treated as the secondary BLACK switch button.



Includes

Included items:
