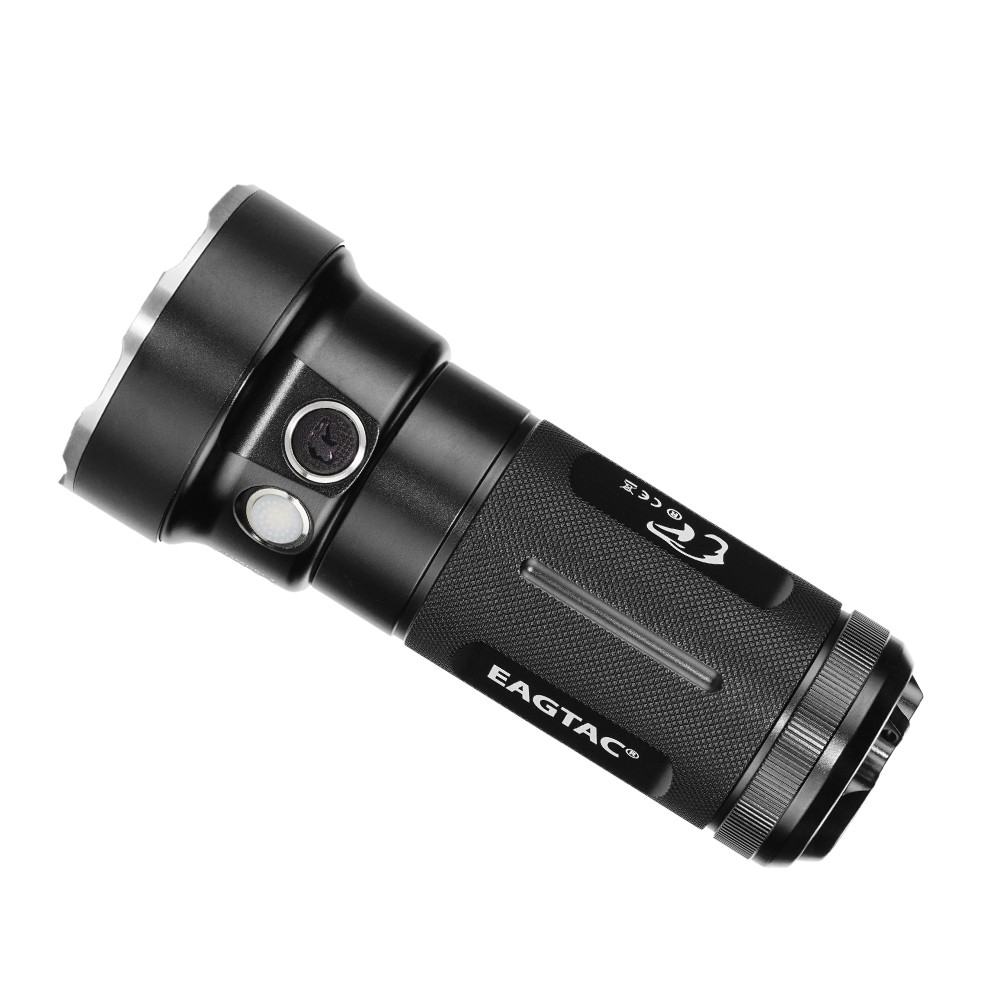

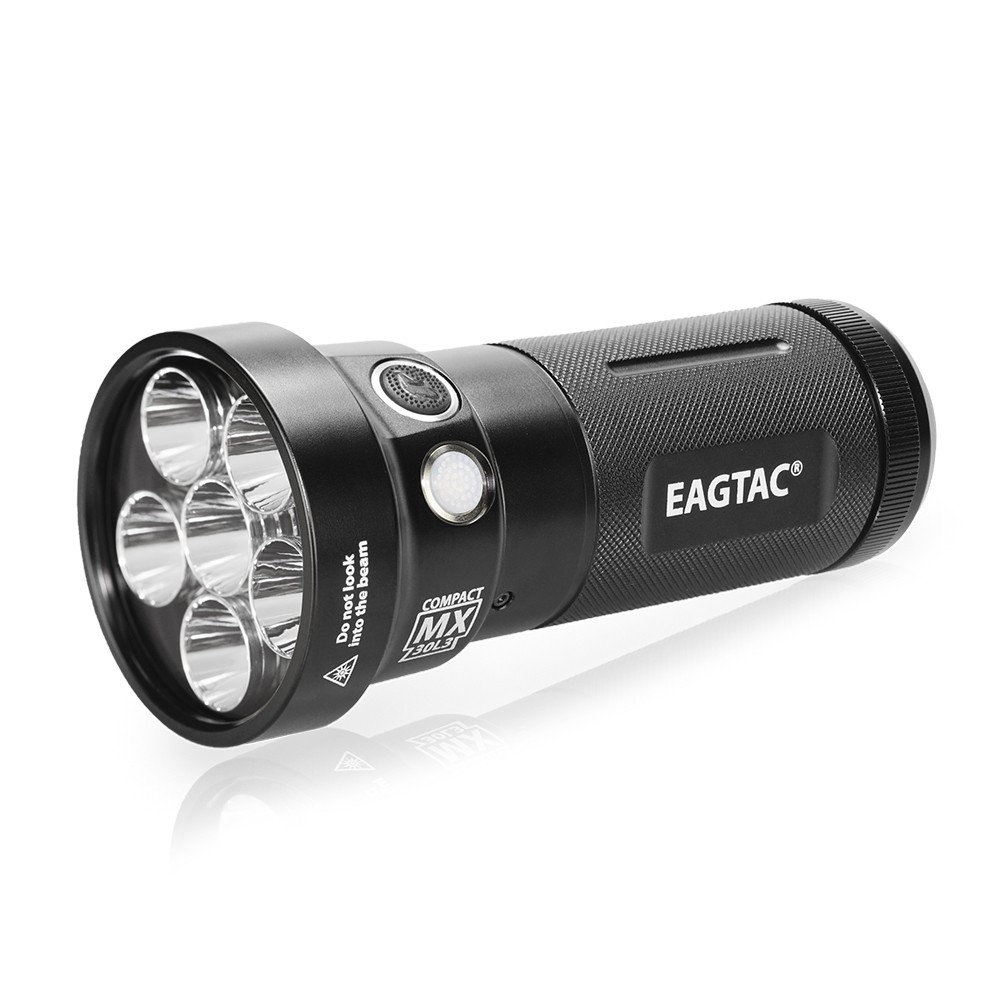

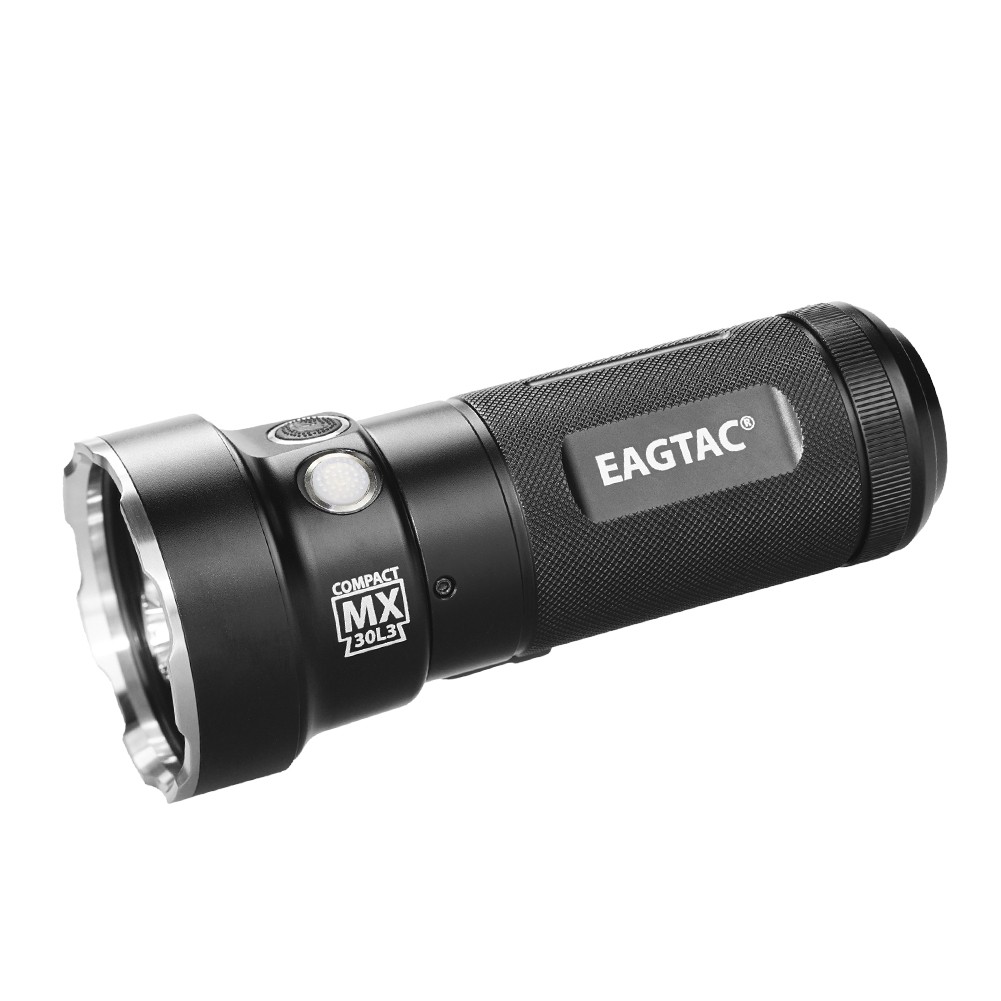

MX30L3-CR

  • 6000 LED lumen powered by six XP-L HD V6 LED
  • Built-in Li-ion charger, user replaceable battery, supports home/car charging
  • Dual side switches + tailcap switch
  • Five brightness levels, two hidden auxiliary levels
  • Instant strobe and momentary-on function
  • Battery level report system, active thermal management
  • Uses protected 3*18650 li-ion battery (included)
  • 579 yards / 531 meters maximum beam distance
  • Up to 1.3 hrs on MAX output, 80 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

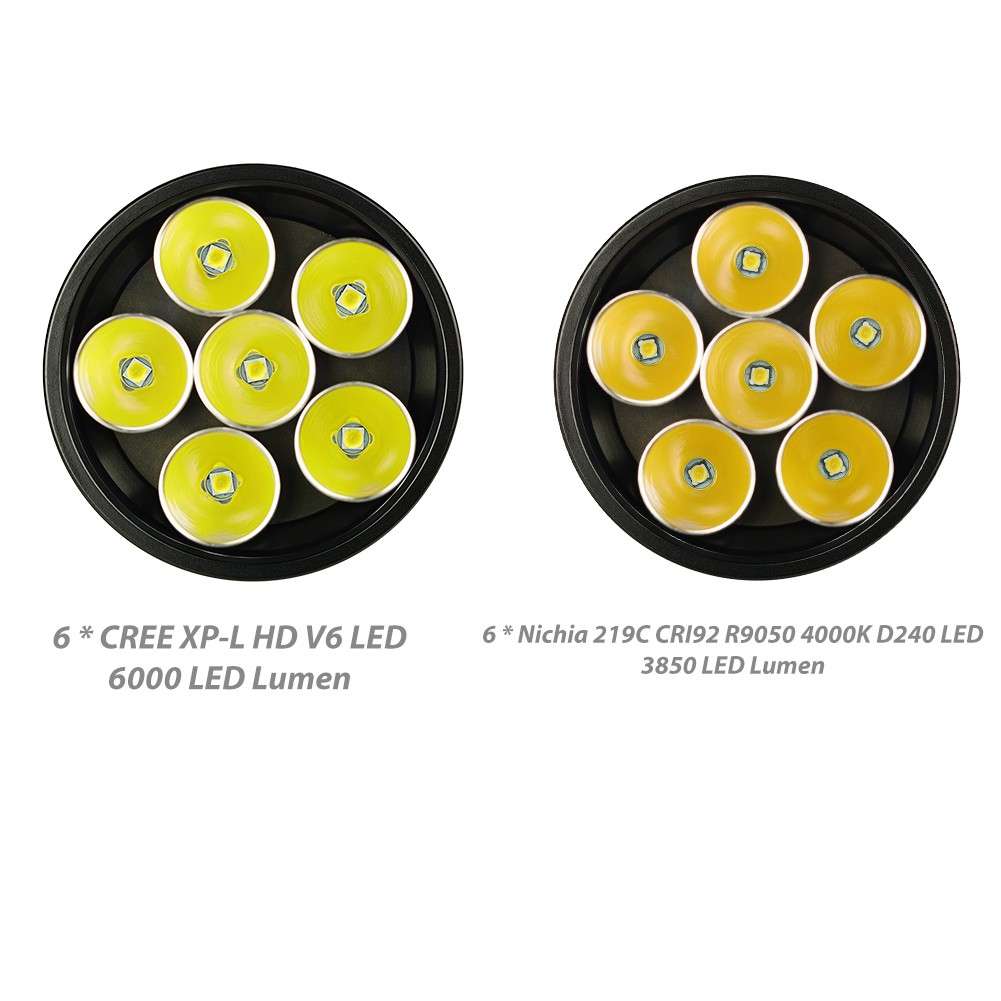

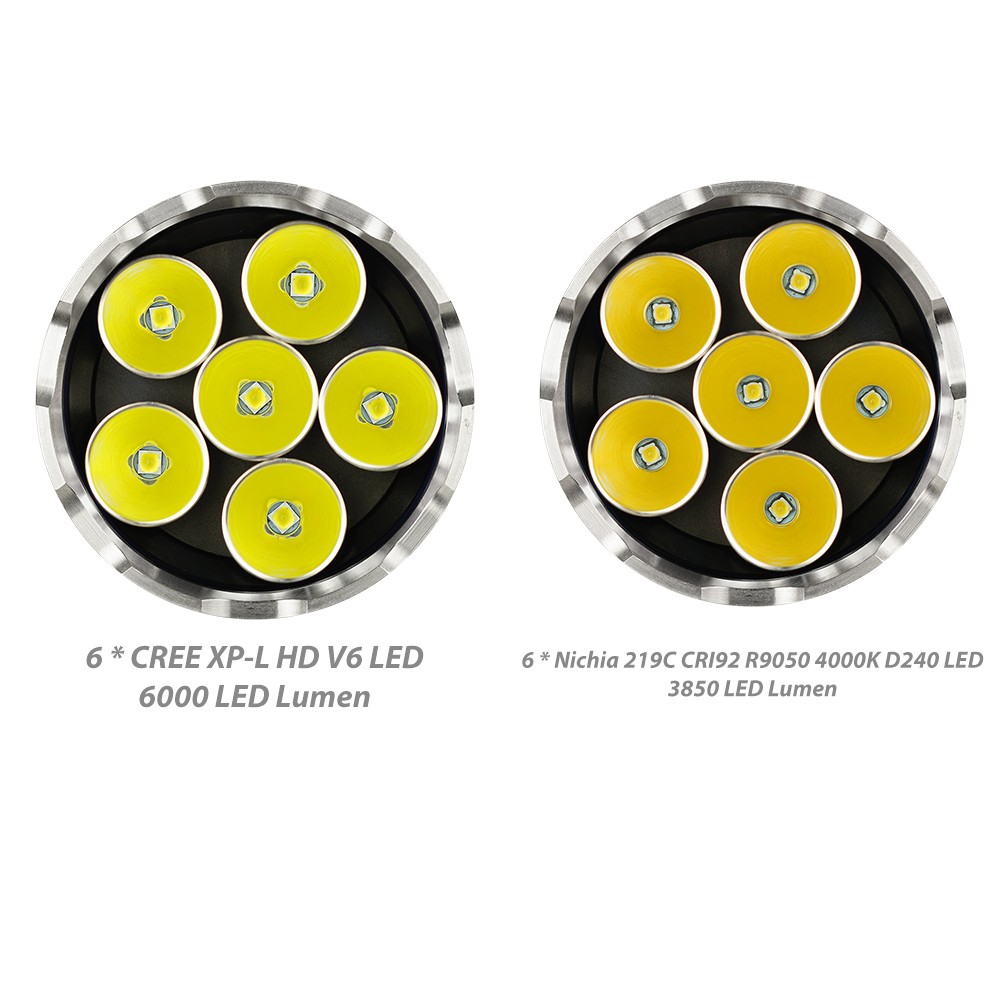

6 * CREE XP-L HD V6 Cool White LED

Max output

6000 LED lumen /5018 ANSI lumen

Center lux @ 1 meter

40,200 lux

Beam distance

437 yards / 401 meters

Output levels

6000-4035/3050/1145/445/60 LED lumen /5018-3390/2570/970/380/52 ANSI lumen

Runtime

0.9-1.3/2.2/7/20/80 hours

Battery
Battery Type

Battery Pack 11.1V 18650*3

Battery included

Built-in rechargeable

Operating voltage

8.1V – 12.6V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

Disorienting Strobe/Beacon (1.67Hz)/S.O.S.

Dimensions
Body Diameter

1.8 inches (46 mm)

Head Diameter

2.5 inches (62 mm)

Length

5.8 inches (147 mm)

Weight w/o battery

10.7 ounces (302 grams)

Weight w/ battery

15.8 ounces (449 grams)

Constructions
Flashlight Body Material

HAIII hard anodization aerospace aluminum

Lens

Harden waterwhite glass lens with anti-reflective coating on both side

Reflector

Smooth aluminum reflector

Waterproof

IPX-8

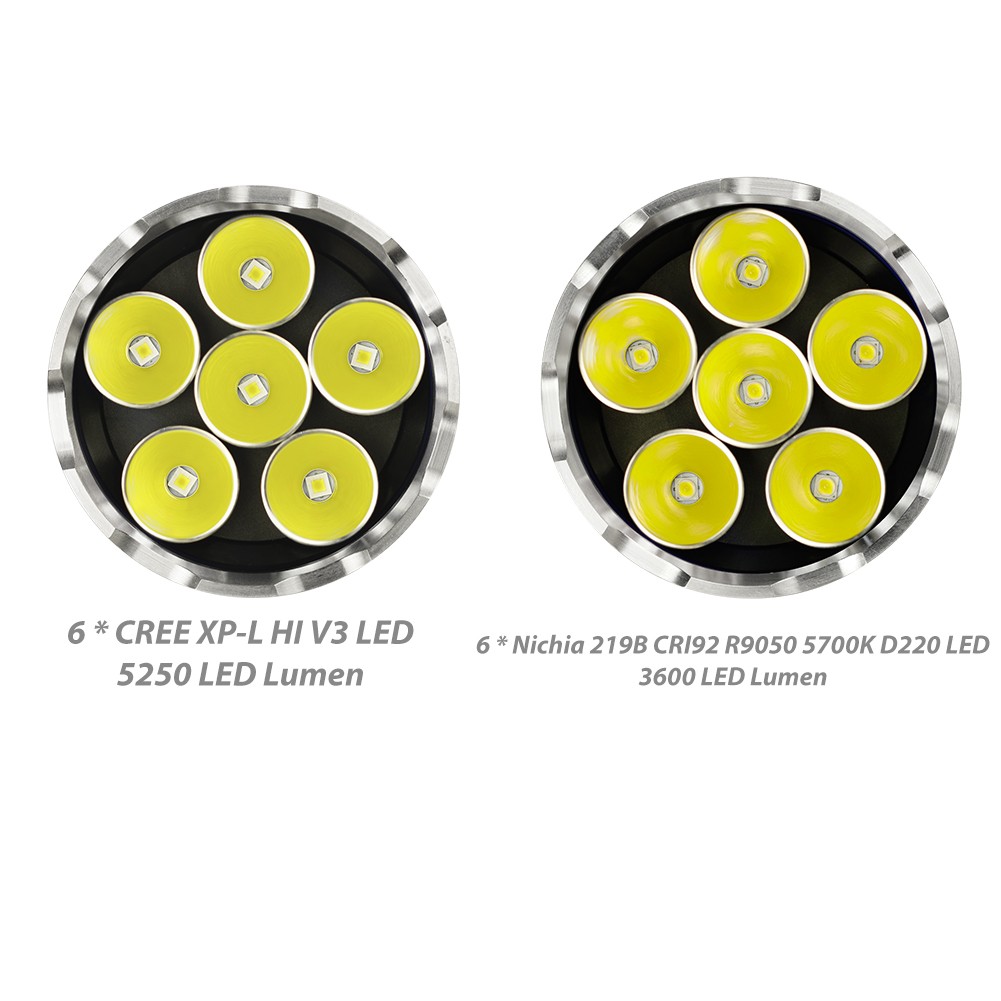

Optional LED1
LED (1)

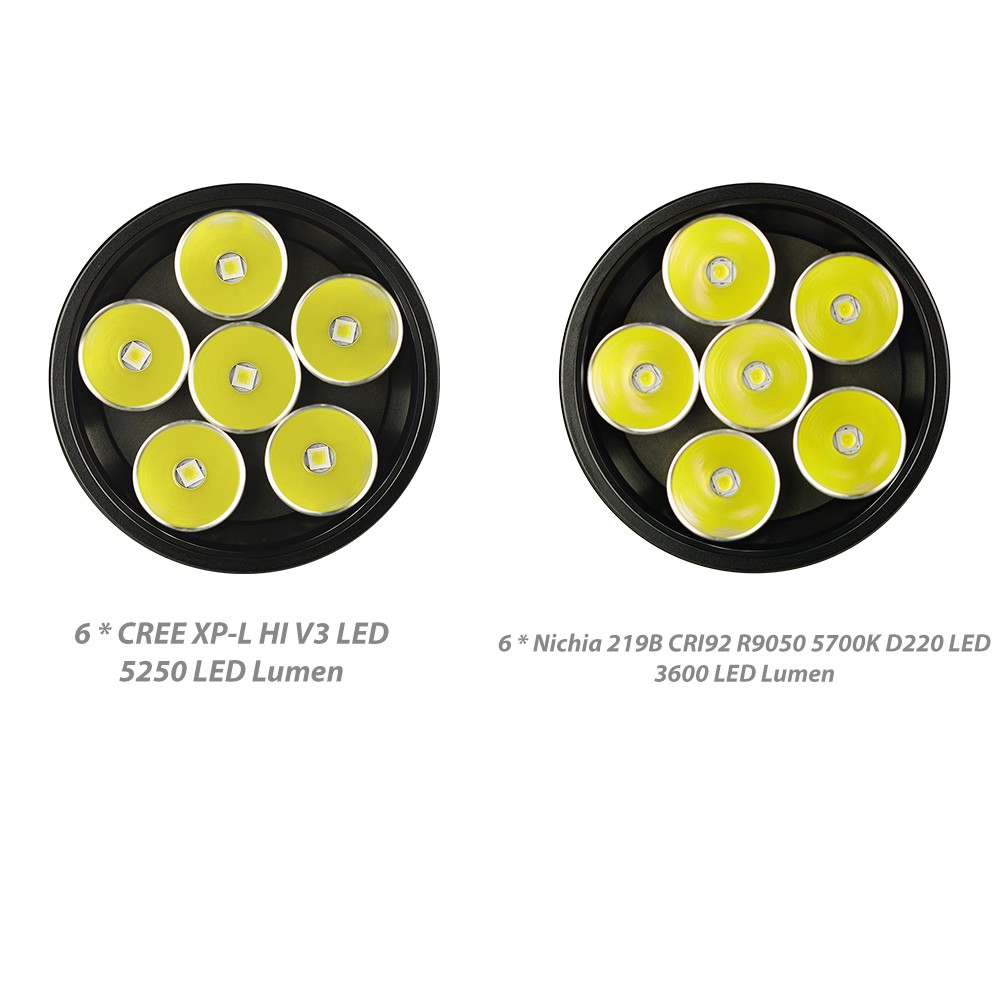

6 * CREE XP-L HI V3 Cool White LED

Max output (1)

5250 LED lumen / 4415 ANSI lumen

Center lux @ 1 meter (1)

70,500 lux

Beam distance (1)

579 yards / 531 meters

Output levels (1)

5250-3535/2670/1010/395/53 LED lumen /4415-3005/2270/860/345/47 ANSI lumen

Runtime (1)

0.6-1/1.6/5.1/15/60 hours

Optional LED2
LED (2)

6 * Nichia 219C 4000K CRI92 R9050 SW40 D240 LED

Max output (2)

3850 LED lumen / 3160 ANSI lumen

Center lux @ 1 meter (2)

35,200 lux

Beam distance (2)

409 yards / 376 meters

Output levels (2)

3850-2560/1960/740/285/42 LED lumen / 3160-2140/1620/615/240/35 ANSI lumen

Runtime (2)

0.9-1.3/2.2/7/20/80 hours (38.8Wh battery)

Optional LED3
LED (3)

6 * Nichia 219B 5700K CRI92 R9050 SW57 D220 LED

Max output (3)

3600 LED lumen / 2950 ANSI lumen

Center lux @ 1 meter (3)

34,300 lux

Beam distance (3)

404 yards / 370 meters

Output levels (3)

3550-2390/1810/680/265/37 LED lumen / 2950-2005/1515/575/225/32 ANSI lumen

Runtime (3)

0.9-1.3/2.2/7/20/80 hours (38.8Wh battery)

Optional LED4
LED (4)

6 * CREE XP-L HI V2 Neutral White LED

Max output (4)

4883 LED lumen / 4106 ANSI lumen

Center lux @ 1 meter (4)

Beam distance (4)

Output levels (4)

4883-3288/2483/939/367/49 LED lumen / 4106-2795/2111/800/321/44 ANSI lumen

Runtime (4)

0.9-1.3/2.2/7/20/80 hours (38.8Wh battery)

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light at MAX output by pressing the BLACK button switch. Turn on the light at LOWEST output by pressing the WHITE button switch.
  • To turn off the light anytime, press and release the BLACK button switch.



Advanced operations:

  • For MAX output momentary on, press and hold the BLACK button switch for immediate output.
  • To switch between different brightness levels, press and release the WHITE button switch when the flashligh is on.
  • (For example: if you want to turn on the flashlight at the 3rd level, just press and release the white button switch three times from off.)
  • To enter hidden auxiliary levels, press and hold the WHITE button switch when the flashligh is on.
  • For instant MAX output – at any output level, press and hold the BLACK button switch. Release the button to return to previous level.
  • For instant Strobe output – at any output level (even) off), double press and hold the BLACK button switch. Release the button to return to previous level (or off).
  • The optional switch button located at the tailcap is treated as the secondary BLACK switch button.



Charging:

  • Remove the waterproof cover and insert the charging connector to charge the battery. The flashlight will switch off the LED output during charge automatically.
  • When charging is finished, unplug the charging connector and restart the flashlight.
