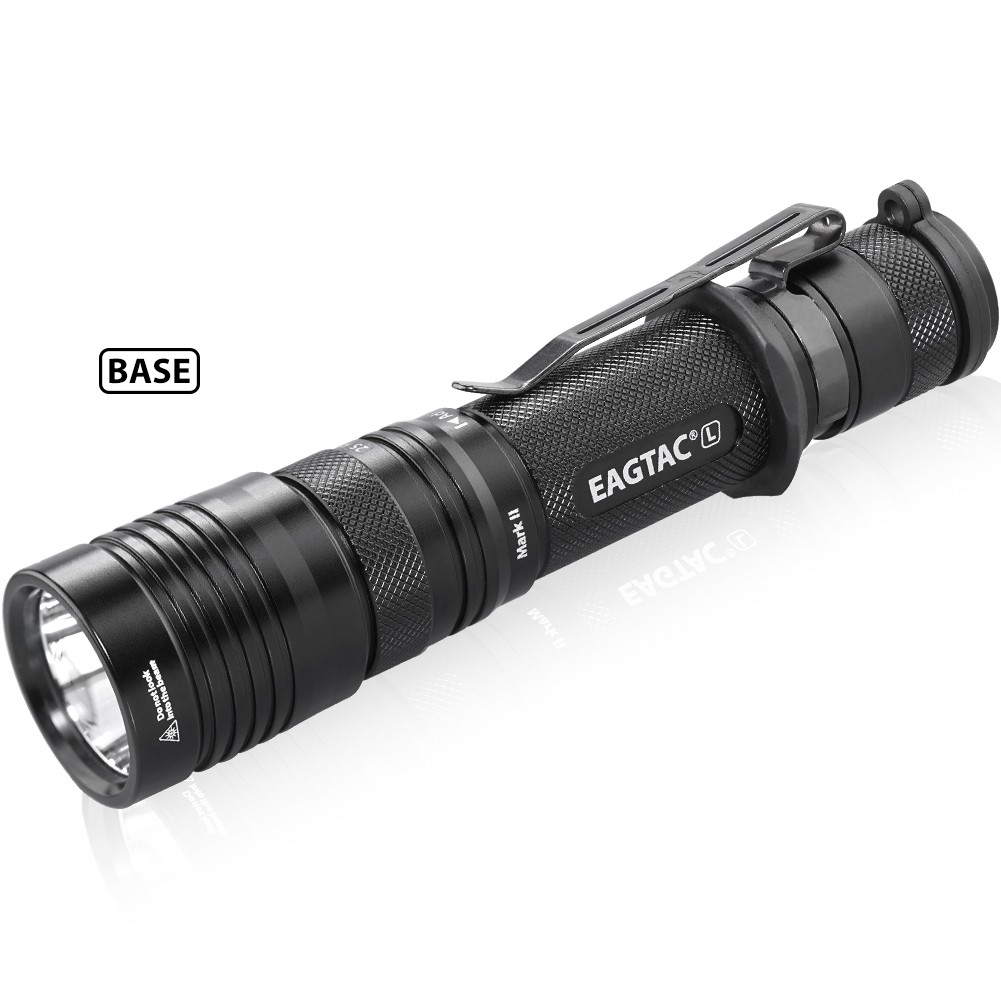

T25L-R MKII

Category: T series

Description

Performance

Battery

Control

Control Type	–
Hidden auxiliary outputs	–

Dimensions

Constructions

Flashlight Body Material	HAIII hard anodization aerospace aluminum
Lens	Harden waterwhite glass lens with anti-reflective coating on both side
Reflector	Smooth aluminum reflector
Waterproof	IPX-8

Optional LED1

Optional LED2

LED (2)	CREE XHP35 HD E2 Neutral White LED
Max output (2)	2050 LED lumen / 1640 ANSI lumen
Center lux @ 1 meter (2)	–
Beam distance (2)	–
Output levels (2)	2050-1535/600/13 LED lumen / 1640-1260/372/37 ANSI lumen
Runtime (2)	0.8-1.2/3.8/25 hrs

Optional LED3

LED (3)	CREE XHP35 HI D4 Neutral White LED
Max output (3)	1905 LED lumen / 1525 ANSI lumen
Center lux @ 1 meter (3)	–
Beam distance (3)	–
Output levels (3)	1906-1414/550/12 LED lumen / 1525-1163/344/34 ANSI lumen
Runtime (3)	0.8-1.2/3.8/25 hrs

Picture gallery: Download
User manual: Download

How to use?

Basic operations:

Advanced operations:

Tail strobe feature (off by default): Switch to 1st level and turn the flashlight on and off 20 times (one second or less between each click) to toggle this feature. With the tailcap strobe setting enabled, a double press of the switch button (within one second) will activate the strobe output.

Charging:

Remove the waterproof cover and insert the included type-c charging cable to charge the battery. User must turn on the flashlight switch at the tailcap to charge.
Flashlight will switch off the LED output during charge until the charging is completed. Restart the flashlight or switch to other brightness level to wake the flashlight with cable removed.
To check the charging progress anytime during charge, turn the head of the flashlight to wake the charging level report.
Maximum charging time for a depleted battery: 2.5-3 hrs (2600mAH 18650 li-ion), 3.5-4 hrs (3500mAh 18650 li-ion)
