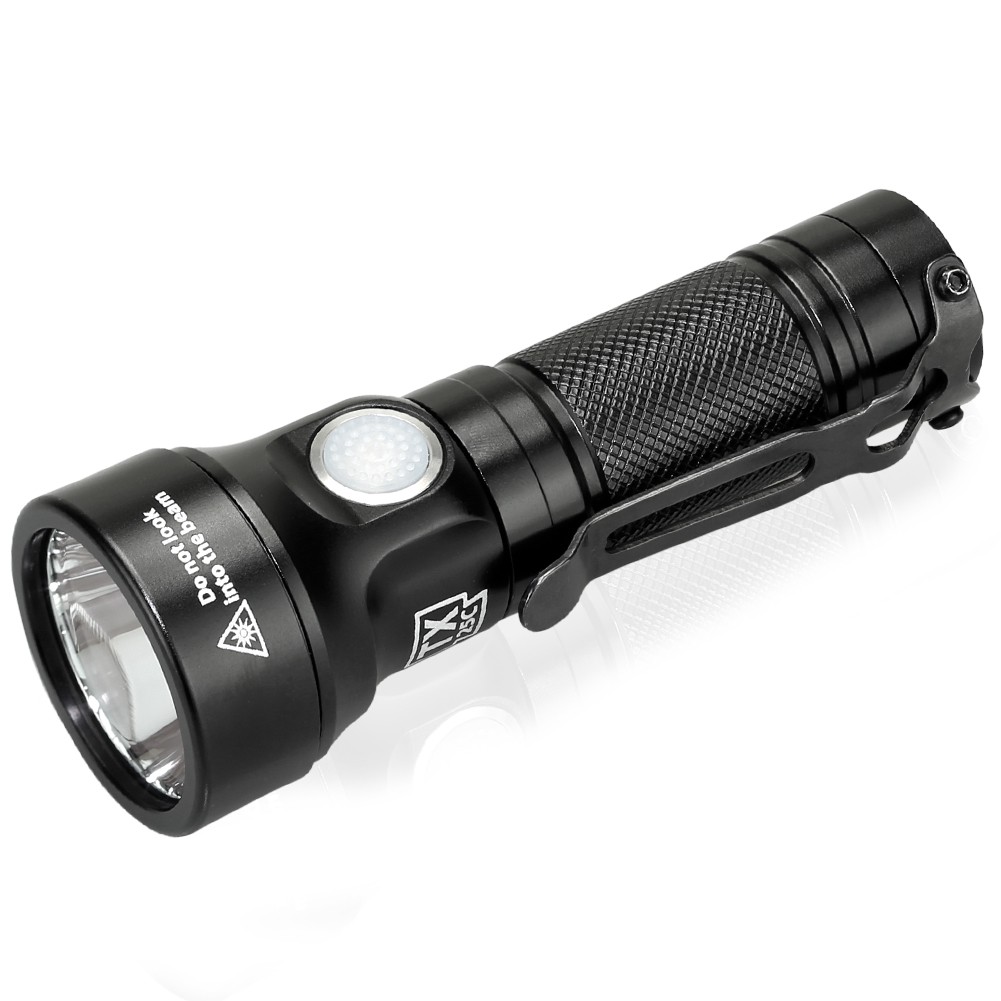

TX25C

  • 1177 LED lumen powered by XM-L2 U4 LED
  • Single hand operation. Instant access to MAX or MIN output with only one click
  • Five pre-defined output and battery level report
  • Reversed clicky on/off tailcap switch
  • Uses protected RCR123A li-ion battery or 1*CR123A Lithium battery
  • 194 yards / 177 meters maximum beam distance
  • Up to 1.5 hrs on MAX output, 150 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

CREE XM-L2 Cool White U4 LED

Max output

1177 LED lumen /1016 ANSI lumen

Center lux @ 1 meter

7,800 lux

Beam distance

194 yards / 177 meters

Output levels

1177-909/685/337/117/9 LED lumen /1016-781/588/289/92/8 ANSI lumen

Runtime

1/1.8/4/13/150 hours

Battery
Battery Type

CR123A*1 | CR123A*2 | RCR123A*1

Battery included

Built-in rechargeable

Operating voltage

1.8V – 6V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

– | Hidden auxiliary output: Beacon (1.67Hz)

Dimensions
Body Diameter

0.8 inches (21 mm)

Head Diameter

1.3 inches (33 mm)

Length

3.4 inches (88 mm)

Weight w/ battery

1.9 ounces (56 grams)

Constructions
Flashlight Body Material

HAIII hard anodization aerospace aluminum

Lens

Harden waterwhite glass lens with anti-reflective coating on both side

Reflector

Smooth aluminum reflector

Waterproof

IPX-8

Optional LED1
LED (1)

CREE XM-L2 Neutral White U2 LED

Max output (1)

1048 LED lumen / 899 ANSI lumen

Center lux @ 1 meter (1)

Beam distance (1)

Output levels (1)

Runtime (1)

1/1.8/4/13/150 hours

Optional LED2
LED (2)

CREE XP-L HI V3 LED

Max output (2)

1000 LED lumen / 878 ANSI lumen

Center lux @ 1 meter (2)

14,000 lux

Beam distance (2)

258 yards / 237 meters

Output levels (2)

1000-773/585/290/102/9 LED lumen / 878-665/505/248/120/8 ANSI lumen

Runtime (2)

1/1.8/4/13/150 hours (2xCR123A)

Optional LED3
LED (3)

CREE XM-L2 Cool White U3 LED

Max output (3)

1100 LED lumen / 950 ANSI lumen

Center lux @ 1 meter (3)

14,300 lux

Beam distance (3)

261 yards / 239 meters

Output levels (3)

1100-850/640/315/110/9 LED lumen / 950-730/550/270/86/8 ANSI lumen

Runtime (3)

1/1.8/4/13/150 hours

Picture gallery: Download
User manual: Download



How to use?

Operations:

  • Turn on the light at MAX output (constant on) by pressing and holding the on/off switch button
  • Turn on the light at LOW output (constant on) by pressing and release the switch button within 0.3 second
  • To switch between output levels, (with light turned on) press and hold the on/off switch for longer than 0.6 second to switch to next output. Press and hold the switch will cycle between all levels
  • To access 1.5Hz blinking mode, (with light turned on) press and hold the on/off switch for more than 10 seconds to enter



Includes
