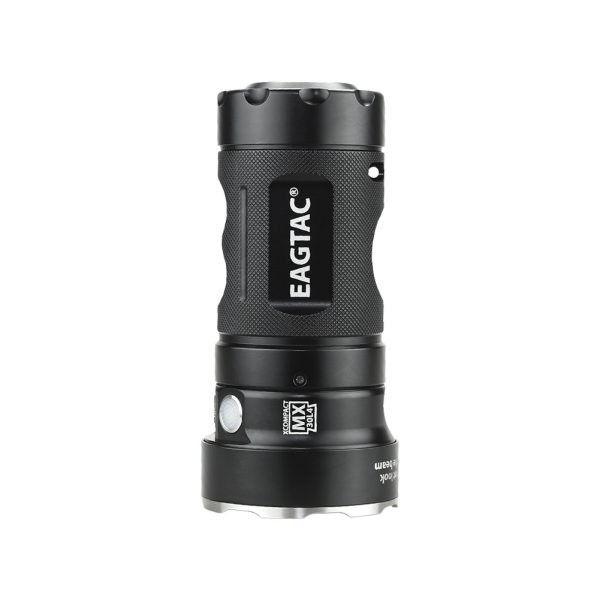

MX30L4-XC

  • 5136 LED lumen powered by 12 XP-G2 S3 LED
  • Five brightness levels, three hidden auxiliary output, pre-select MAX/MIN output
  • Dual side switches (base version)
  • Dual side switches + tailcap switch (kit version)
  • Battery level report system
  • Uses protected 4*18650 li-ion batteries
  • 309 yards / 284 meters maximum beam distance
  • Up to 1.5 hrs on MAX output, 300 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

12 * CREE XP-G2 S3 Cool White

Max output

5136 LED lumen / 4312 ANSI lumen

Center lux @ 1 meter

20,100 lux

Beam distance

309 yards / 284 meters

Output levels

5136-4237/2850/1323/231/32 LED lumen /4312-3552/2408/1125/195/28 ANSI lumen

Runtime

1.5/2.5/6/35/300+ hours

Battery
Battery Type

18650*4

Battery included

Built-in rechargeable

Operating voltage

10V – 24V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

Disorienting Strobe/Beacon (1.67Hz)/S.O.S.

Dimensions
Body Diameter

2 inches (52 mm)

Head Diameter

2.5 inches (62 mm)

Length

5.1 inches (130 mm)

Weight w/ battery

13 ounces (378 grams)

Constructions
Flashlight Body Material

HAIII hard anodization aerospace aluminum

Lens

Harden waterwhite glass lens with anti-reflective coating on both side

Reflector

Smooth aluminum reflector

Waterproof

IPX-8

Optional LED1
LED (1)

12 * Nichia 219B CRI92 D220 Neutral White

Max output (1)

4000 LED lumen / 3210 ANSI lumen

Center lux @ 1 meter (1)

10,200 lux

Beam distance (1)

220 yards / 202 meters

Output levels (1)

4000-3360/2256/1200/204/28 LED lumen /3210-2691/1812/962/167/22 ANSI lumen

Runtime (1)

0.7/1.3/3.1/22/200+ hours

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light at MAX output by pressing the BLACK button switch. Turn on the light at LOWEST output by pressing the WHITE button switch.
  • To turn off the light anytime, press and release the BLACK button switch.



Advanced operations:

  • For MAX output momentary on, press and hold the BLACK button switch for immediate output.
  • To switch between different brightness levels, press and release the WHITE button switch when the flashligh is on.
  • (For example: if you want to turn on the flashlight at the 3rd level, just press and release the white button switch three times from off.)
  • To enter hidden auxiliary levels, press and hold the WHITE button switch for 5 seconds when the flashligh is on.
  • For instant MAX output – at any output level, press and hold the BLACK button switch. Release the button to return to previous level.
  • For instant Strobe output – at any output level (even) off), double press and hold the BLACK button switch. Release the button to return to previous level (or off).
  • The optional switch button located at the tailcap is treated as the secondary BLACK switch button.
