SX30L2-R Pro MKII

2650 LED lumen powered by XHP35 HD E4 LED
Five brightness levels，instant strobe，programmable start-up level
Dual head switch, tail stand
12V fast charging, charging / battery level report
Uses protected 2*26650 li-ion battery pack (EAGTAC 7.4V 5000mAh battery pack included)
716 yards / 657 meters maximum beam distance
Up to 2.1 hrs on MAX output, 400 hrs on low output

Category: S series

Description

Performance

Battery

Control

Control Type	–
Hidden auxiliary outputs	Disorienting Strobe/Beacon (1.67Hz)/S.O.S.

Dimensions

Constructions

Flashlight Body Material	HAIII hard anodization aerospace aluminum
Lens	Harden waterwhite glass lens with anti-reflective coating on both side
Reflector	Smooth aluminum reflector
Waterproof	IPX-8

Optional LED1

Optional LED2

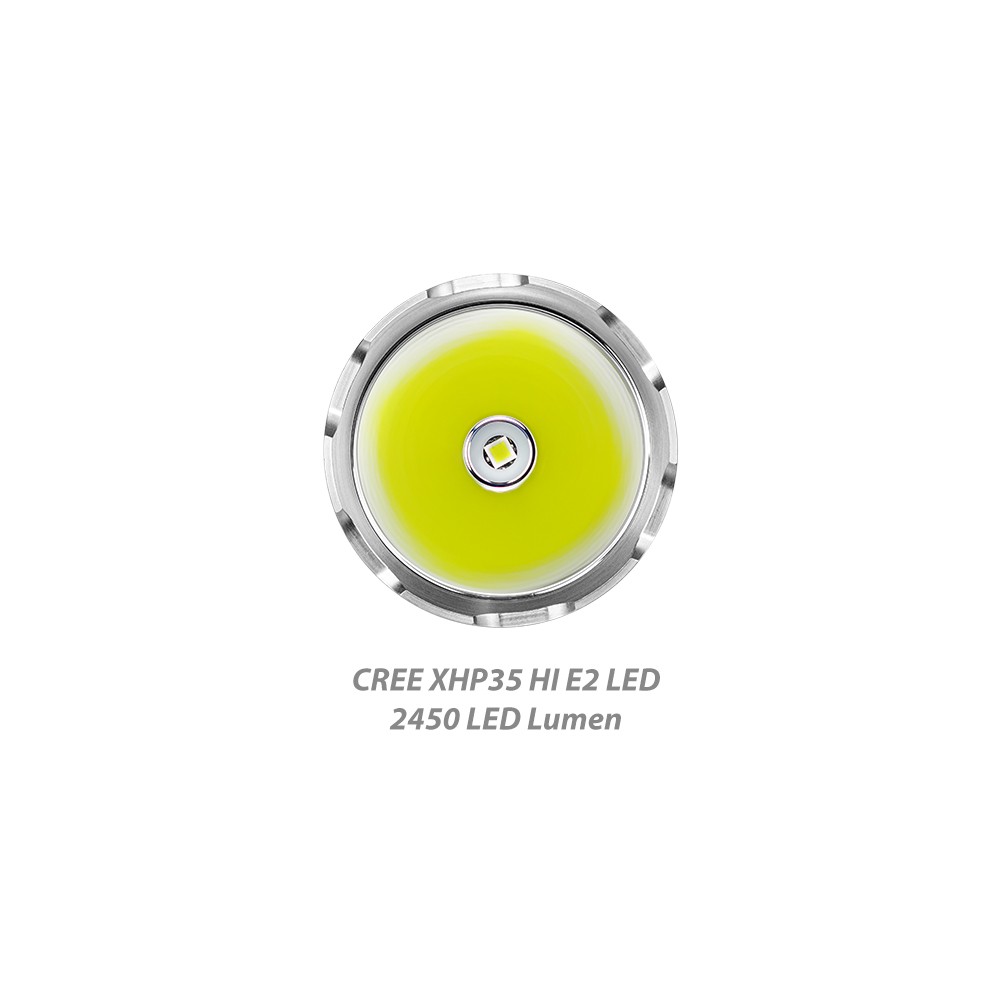

LED (2)	CREE XHP35 HD E2 Neutral White LED
Max output (2)	2450 LED lumne / 1990 ANSI lumen
Center lux @ 1 meter (2)	–
Beam distance (2)	–
Output levels (2)	2450-1906/1265/698/191/19 LED lumen / 1990-1544/1042/586/158/16 ANSI lumen
Runtime (2)	1.5-2.1/4.1/8.7/40/400+ hours (R37)

Optional LED3

LED (3)	CREE XHP35 HI D4 Neutral White LED
Max output (3)	2280 LED lumen / 1804 ANSI lumen
Center lux @ 1 meter (3)	–
Beam distance (3)	–
Output levels (3)	2280-1758/1163/632/172/16 LED lumen / 1804-1414/925/507/140/13 ANSI lumen
Runtime (3)	1.5-2.1/4.1/8.7/40/400+ hours (R37)

Picture gallery: Download
User manual: Download

How to use?

Basic operations:

Turn on the light at MAX output by pressing the BLACK button switch.
Turn on the light at LOWEST (programmable) output by pressing the WHITE button switch.
To turn off the light anytime, press and release the BLACK button switch.

Advanced operations:

To program the LOWEST startup output, switch to the desired output level and continuously pressing and holding the button for three seconds until the side LED flashes.
(Flashlight w/ programmable feature) In rare occasion user may experience the absence of lowest output level from a brand new purchase. If this is case, set the programmable startup level once will initialize the memory setting and will take care of this issue once and for all.
For MAX output momentary on, press and hold the BLACK button switch for immediate output.
To switch between different brightness levels, press and release the WHITE button switch when the flashligh is on.
To enter hidden auxiliary levels, cycle through at least two cycle of regular output.
For instant MAX output – at any output level, press and hold the BLACK button switch. Release the button to return to previous level.
For instant Strobe output – at any output level (even) off), double press and hold the BLACK button switch. Release the button to return to previous level (or off).

Charging:

Remove the waterproof silicon cap and insert the charging power plug to charge.
Blue side LED indicates the battery is being charged. It reports charging percentage by blinking.
