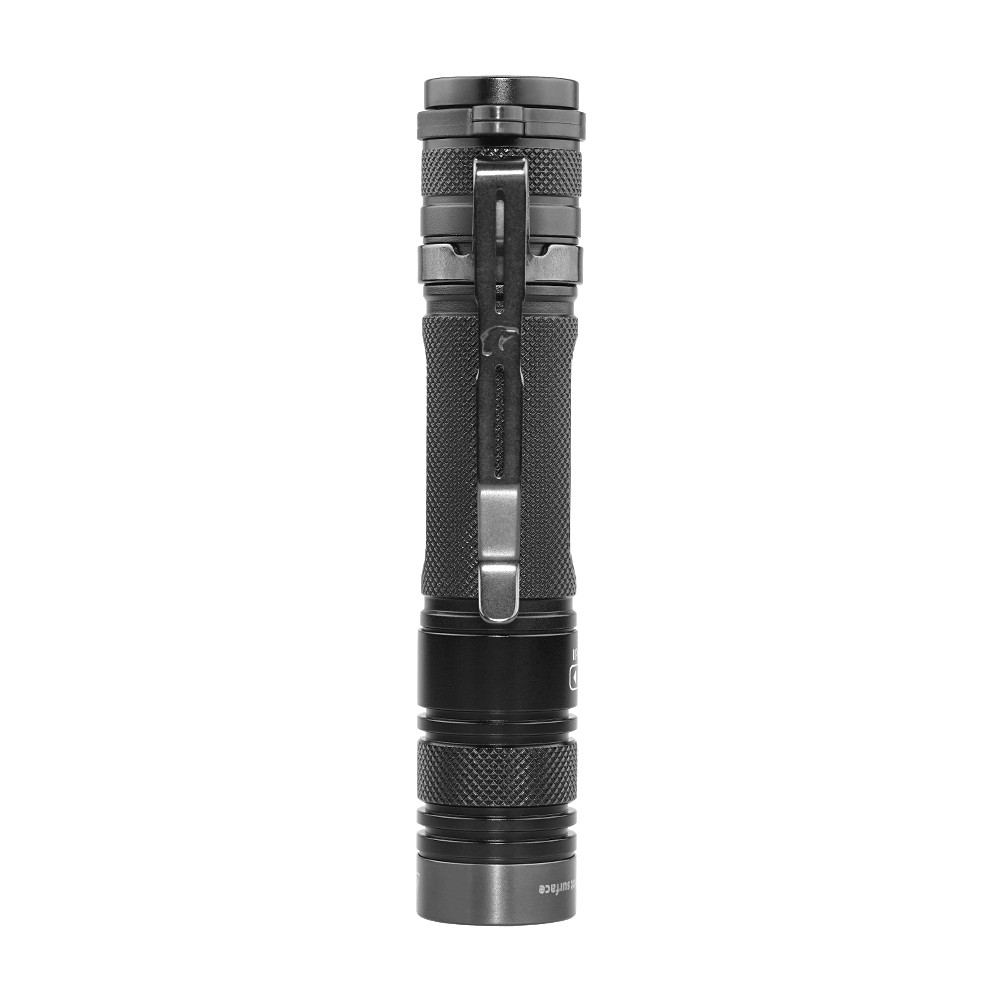

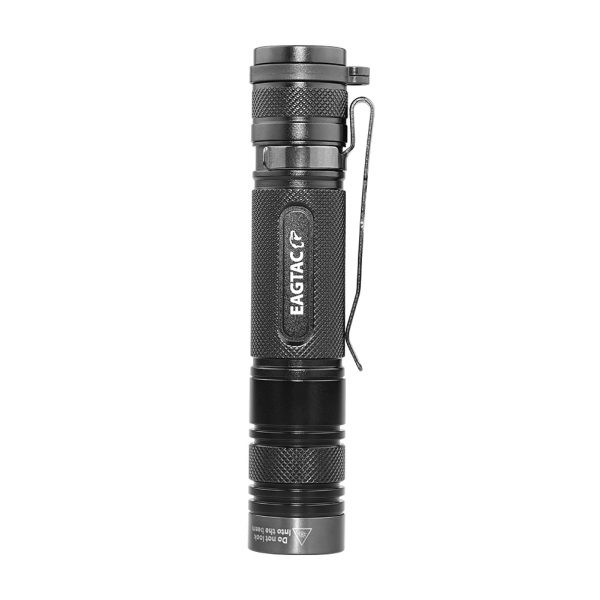

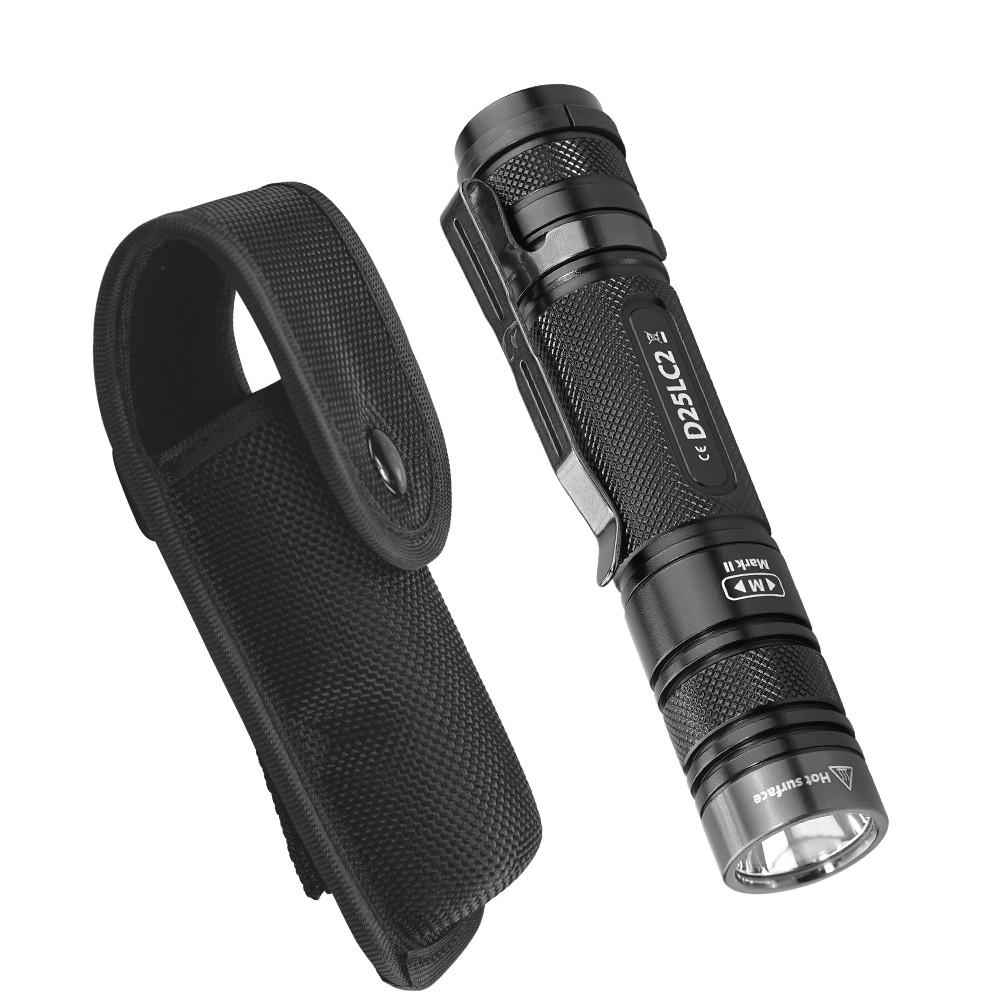

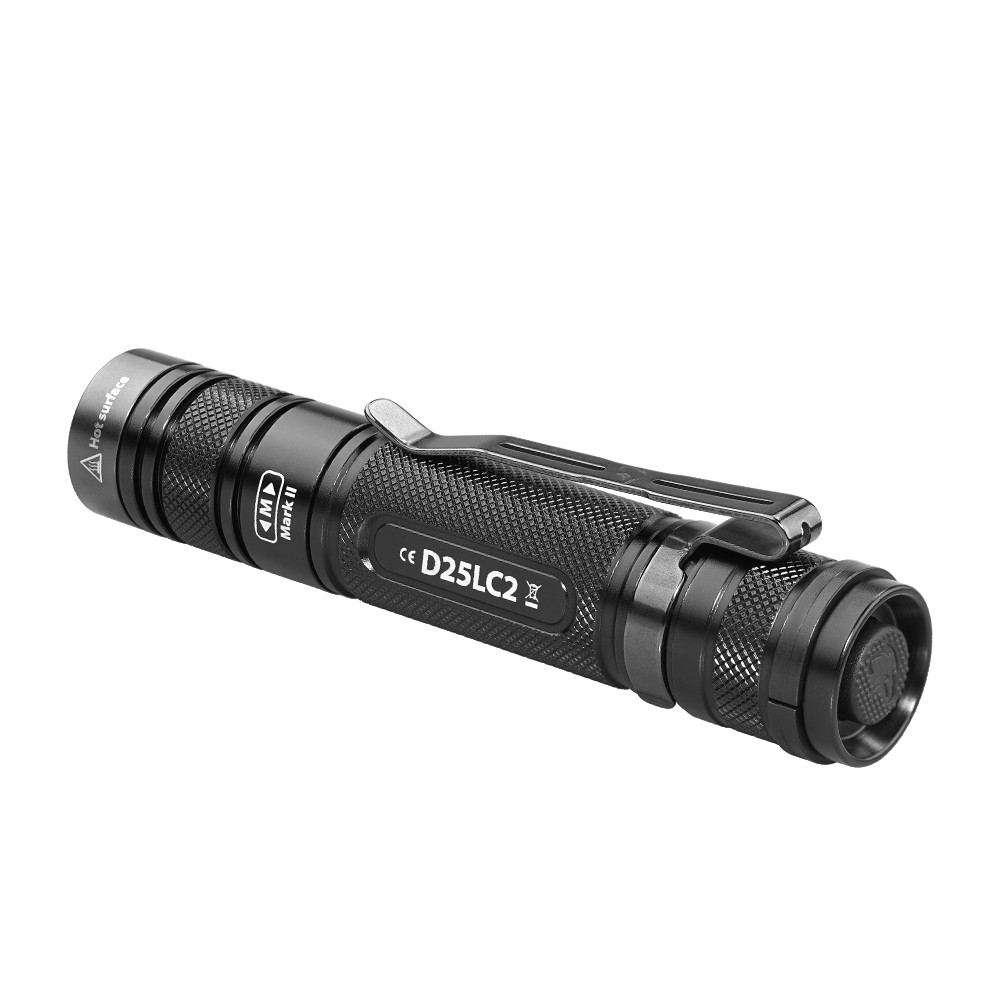

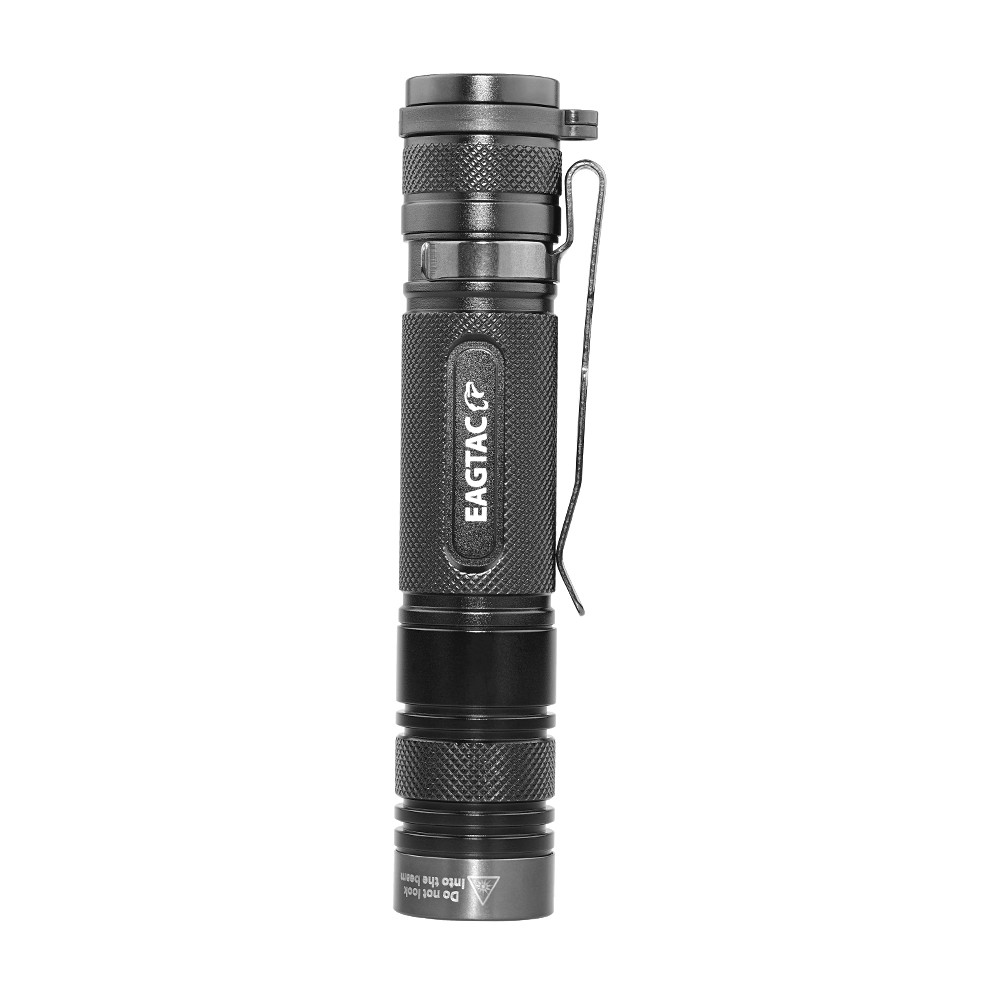

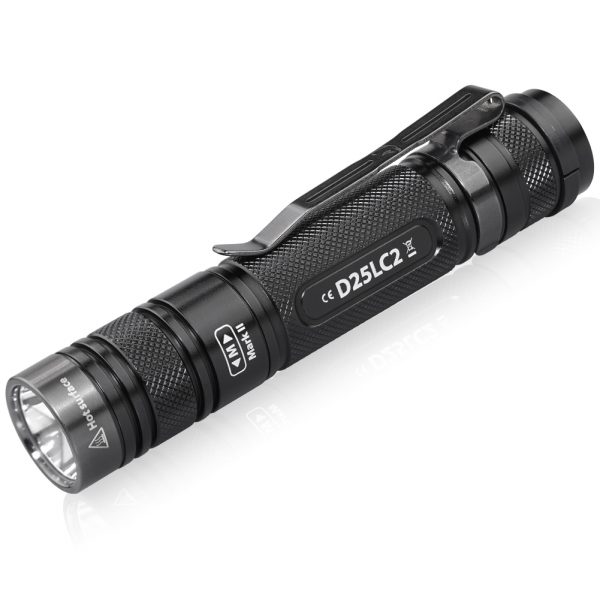

D25LC2 Clicky MKII

  • 1480 LED lumen powered by CREE XM-L2 U4 LED
  • Two group outputs; Five brightness levels and hidden AUX modes
  • Programmable low output and start-up level; Three customizable brightness level for very low and low output
  • Reversed clicky tailcap switch
  • Uses protected 18650 li-ion battery
  • 223 yards / 205 meters maximum beam distance
  • Up to 2.2 hrs on MAX output, 1500 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

CREE XM-L2 Cool White U4 LED

Max output

1480 LED lumen /1150 ANSI lumen

Center lux @ 1 meter

10,500 lux

Beam distance

223 yards / 205 meters

Output levels

1480-760/760/290/75/18/5 LED lumen /1150-760/585/225/60/15/5 ANSI lumen

Runtime

1.1 to 2.2 – 2.8 – 8 – 33 – (150 or 1000 or 1500) hours

Battery
Battery Type

18650*1 | CR123A*2

Battery included

Built-in rechargeable

Operating voltage

2.7V – 6V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

Strobe(Constant)/Flash(Hi)/S.O.S.(Fast)/Beacon/Flash(Low)

Dimensions
Body Diameter

0.85 inches (22 mm)

Head Diameter

0.9 inches (22.5 mm)

Length

4.5 inches (115 mm)

Weight w/ battery

1.7 ounces (49 grams)

Constructions
Flashlight Body Material

HAIII hard anodization aerospace aluminum

Lens

Harden waterwhite glass lens with anti-reflective coating on both side

Reflector

Smooth aluminum reflector

Waterproof

IPX-8

Optional LED1
LED (1)

CREE XM-L2 Neutral White U2 LED

Max output (1)

1376 LED lumen / 1070 ANSI lumen

Center lux @ 1 meter (1)

9400 lux

Beam distance (1)

211 yards / 194 meters

Output levels (1)

1376, 710-270-70-(17 or 4.7 or 0.5) LED lumen / 1070-710, 544-209-56-(14-4.7-0.5) ANSI lumen

Runtime (1)

1.1 to 2.2 – 2.8 – 8 – 33 – (150 or 1000 or 1500) hours

Optional LED2
LED (2)

Nichia 219C CRI-92 R9050 D240 LED

Max output (2)

880 LED lumen / 655 ANSI lumen

Center lux @ 1 meter (2)

7500 lux

Beam distance (2)

189 yards / 173 meters

Output levels (2)

Runtime (2)

1.1 to 2.2 – 2.8 – 8 – 33 – (150 or 1000 or 1500) hours

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Basic – Press on the switch button until it clicks to turn on the flashlight. Press the switch again until it clicks to switch off the light.
  • Access output groups 1 & 2 – Tight the head to access group 2 output. Loose the head to access group 1 output.
  • Group 1: MAX – Strobe (Variable) – cycle
  • Group 2: Very low – low – med – high – Very low – low – med – high – Strobe(Constant)- Flash(Hi)- S.O.S.(Fast) – Beacon – Flash(Low) – cycle
  • Switch between output level – With the flashlight on, slightly press the switch and release (within 1s) to switch to the next output.



User define function:

  • Change brightness level for the lowest output. To toggle the brightness level, turn on flashlight and switch to the lowest level with head loose, wait for at least one second, and repeat head tight and loose three times.
  • Define any output level as start-up output level for group 2 (loose head). To toggle this setting, choose any level with head loose, wait for at least one second, then tight the head, wait for at least one second, and then repeat loose and tight for three times.



Includes

Included items:
