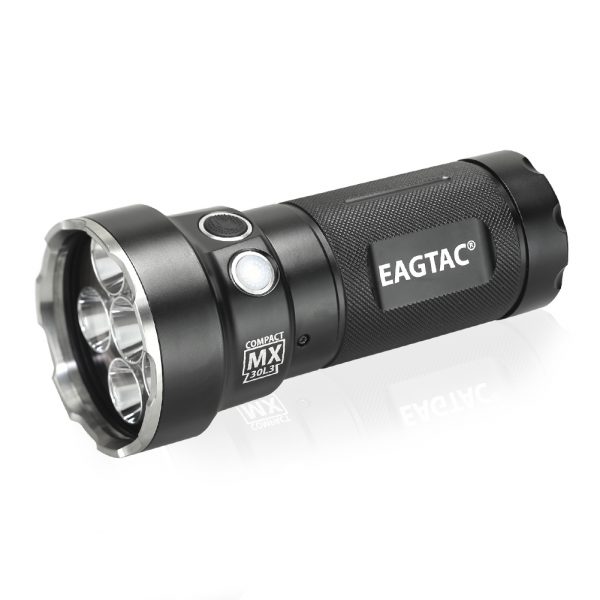

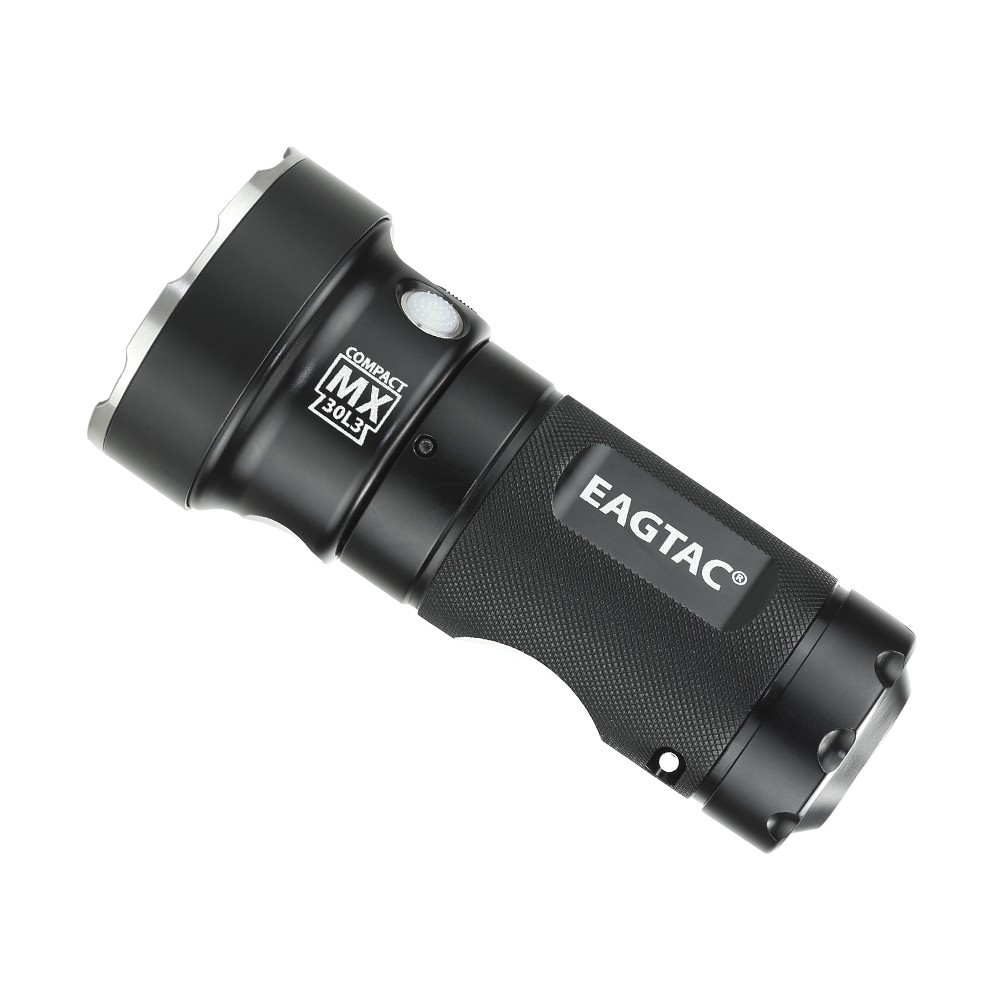

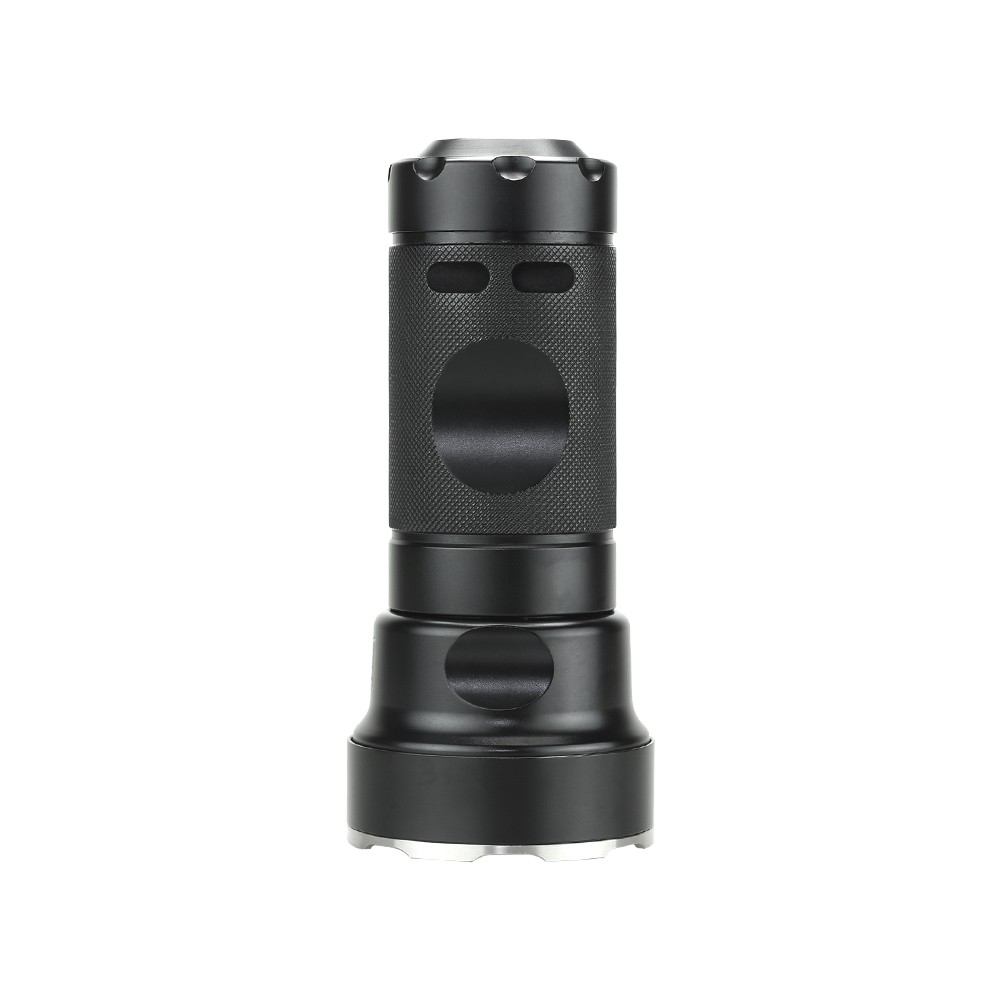

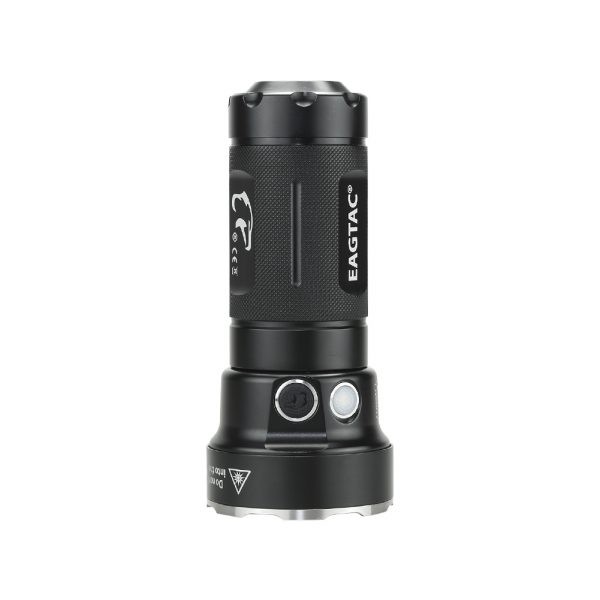

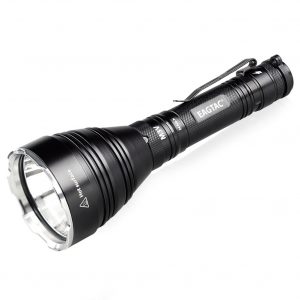

MX30L3-C

  • 3780 LED lumen powered by six XP-G2 S3 LED
  • Five brightness levels, three hidden AUX modes

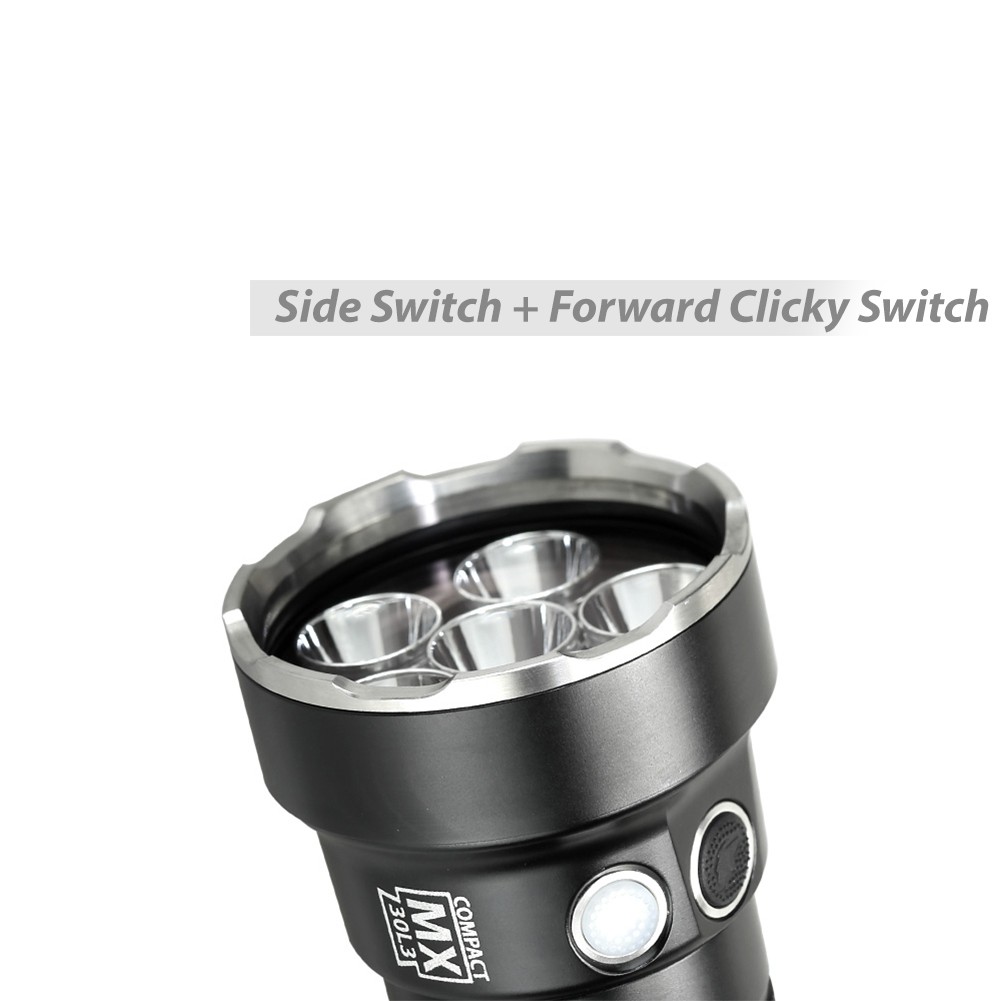

  • Dual side switches + tailcap switch
  • Instant strobe and instant max output, momentary-on function
  • Battery level report system
  • Uses protected 3*18650 li-ion battery
  • 464 yards / 426 meters maximum beam distance
  • Up to 1.5hrs on MAX output, 350 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

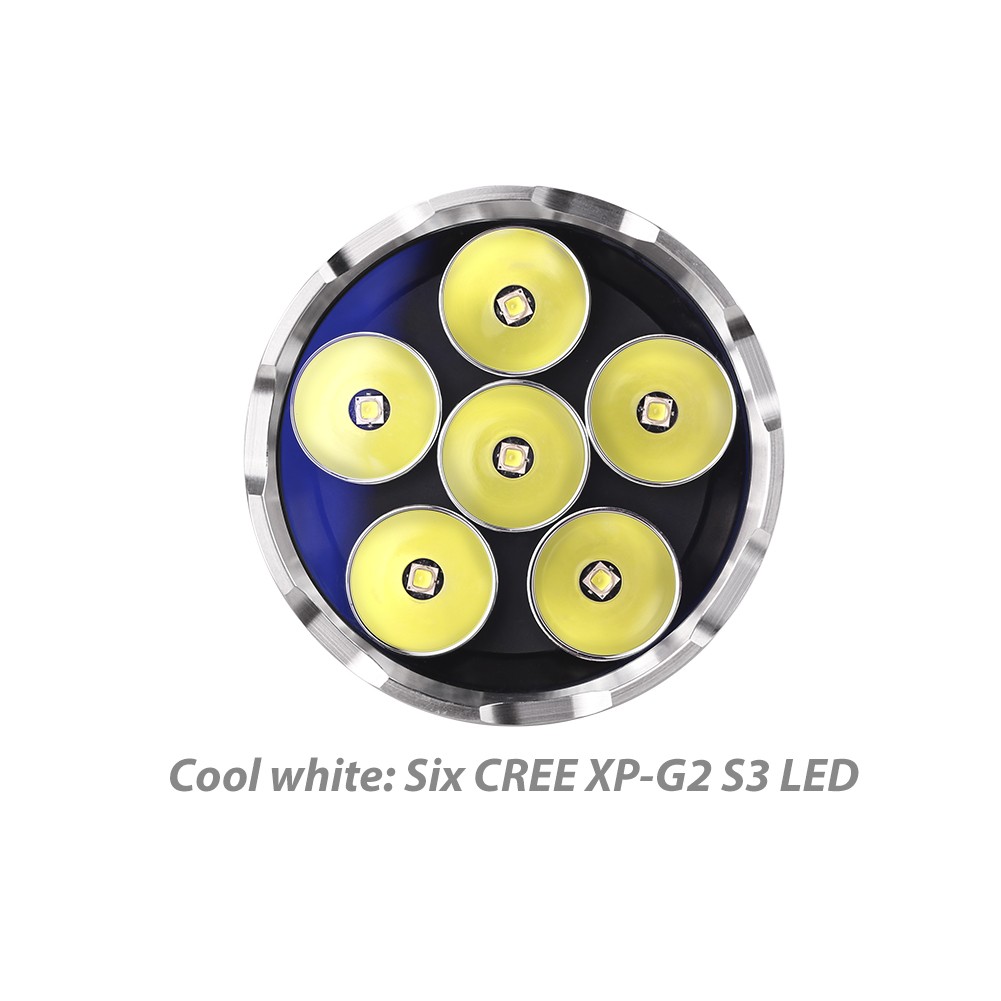

6 x CREE XP-G2 S3 Cool White LED

Max output

3780 LED lumen /2815 ANSI lumen

Center lux @ 1 meter

45,300 lux

Beam distance

464 yards / 426 meters

Output levels

3780-3180/2250/1080/420/25 LED lumen /2815-2408/1751/840/328/20 ANSI lumen

Runtime

1.5/2.5/6/17/350 hours

Battery
Battery Type

18650*3 | CR123A*6

Battery included

Built-in rechargeable

Operating voltage

5.4V – 19V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

Disorienting Strobe/Beacon (1.67Hz)/S.O.S.

Dimensions
Body Diameter

1.8 inches (45.5 mm)

Head Diameter

2.5 inches (62 mm)

Length

5.3 inches (135 mm)

Weight w/ battery

12.9 ounces (367 grams)

Constructions
Flashlight Body Material

Reflector

Six smooth aluminum reflectors

Waterproof

IPX-8

Optional LED1
LED (1)

6 x Nichia 219C CRI-92 R9050 SW40 4000K Netural white LED

Max output (1)

2220 LED lumen /1665 ANSI lumen

Center lux @ 1 meter (1)

Beam distance (1)

Output levels (1)

Runtime (1)

Optional LED2
LED (2)

6 x CREE XP-G2 S2 Nuetral White LED

Max output (2)

3515 LED lumen / 2618 ANSI lumen

Center lux @ 1 meter (2)

Beam distance (2)

Output levels (2)

3515-2957/2093/1004/391/23 LED lumen / 2618-2240/1628/781/305/19 ANSI lumen

Runtime (2)

0.7/1.3/3.1/9.5/200 hours (6xCR123A)

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light at MAX output by pressing the BLACK button switch. Turn on the light at LOWEST output by pressing the WHITE button switch.
  • To turn off the light anytime, press and release the BLACK button switch.



Advanced operations:

  • For MAX output momentary on, press and hold the BLACK button switch for immediate output.
  • To switch between different brightness levels, press and release the WHITE button switch when the flashligh is on.
  • (For example: if you want to turn on the flashlight at the 3rd level, just press and release the white button switch three times from off.)
  • To enter hidden auxiliary levels, press and hold the WHITE button switch when the flashligh is on.
  • For instant MAX output – at any output level, press and hold the BLACK button switch. Release the button to return to previous level.
  • For instant Strobe output – at any output level (even) off), double press and hold the BLACK button switch. Release the button to return to previous level (or off).
  • The optional switch button located at the tailcap is treated as the secondary BLACK switch button.
