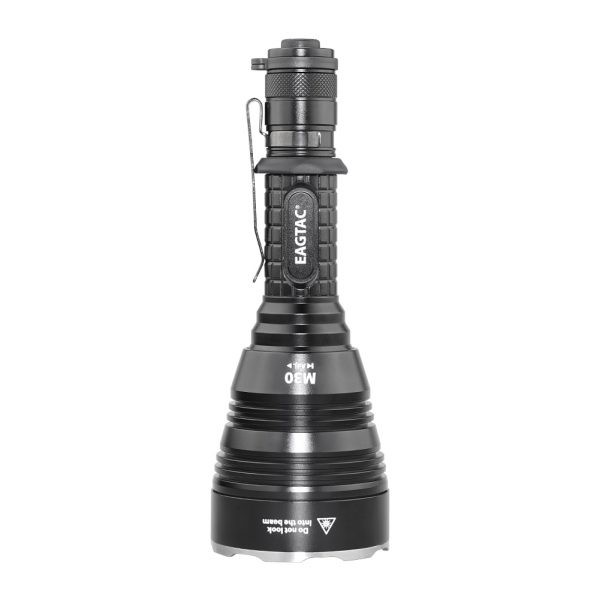

M30LC2 Pro

  • 2000 LED lumen powered by XHP35 HD E4 LED
  • Twist head to choose level, pre-select any output level (4 levels) before turning on, seven hidden AUX outputs
  • Regular mode (3+1 brightness levels) or tactical mode (Two brightness levels + strobe)
  • Tactical forward clicky on/off tailcap switch; Tail strobe feature (ON/OFF selectable); Energy saving feature
  • Uses protected 1*18650 li-ion battery or 2*18650 / 3*CR123A / 4*CR123A with extender tube
  • 420 yards / 385 meters maximum beam distance
  • Up to 1.3 hrs on MAX output, 200 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

CREE XHP35 HD E4 Cool White LED

Max output

2000 LED lumen / 1600 ANSI lumen

Center lux @ 1 meter

50,400 lux

Beam distance

489 yards / 449 meters

Output levels

2000-1320/710/250 or 18 LED lumen /1600-1069/582/208 or 15 ANSI lumen

Runtime

1-1.3/2.8/10 or 200 hours

Battery
Battery Type

18650*1 | 18650*2

Battery included

Built-in rechargeable

Operating voltage

2.7V – 8.4V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

Disorienting strobe/Flash/ Beacon/S.O.S.

Dimensions
Body Diameter

1 inch (25.4 mm)

Head Diameter

2.5 inches (62 mm)

Length

6.9 inches (176 mm)

Weight w/ battery

8.7 ounces (248 grams)

Constructions
Flashlight Body Material

HAIII hard anodization aerospace aluminum

Lens

Harden waterwhite glass lens with anti-reflective coating on both side

Reflector

Smooth aluminum reflector

Waterproof

IPX-8

Optional LED1
LED (1)

CREE XHP35 HI E2 Cool White LED

Max output (1)

1870 LED lumen / 1400 ANSI lumen

Center lux @ 1 meter (1)

89,100 lux

Beam distance (1)

650 yards / 596 meters

Output levels (1)

1870-1230/660/225 or 15 LED lumen /1400-984/535/185 or 12 ANSI lumen

Runtime (1)

0.5-0.8/1.6/6 or 120 hours

Optional LED2
LED (2)

CREE XHP35 HD E2 Neutral White LED

Max output (2)

1860 LED lumen / 1488 ANSI lumen

Center lux @ 1 meter (2)

Beam distance (2)

Output levels (2)

1860-1228/660/233/17 LED lumen / 1488-994/541/1930/14 ANSI lumen

Runtime (2)

1-1.3/2.8/10 or 200 hrs (1×18650 3500mAh)

Optional LED3
LED (3)

CREE XHP35 HI D4 Neutral White LED

Max output (3)

1739 LED lumen / 1302 ANSI lumen

Center lux @ 1 meter (3)

Beam distance (3)

Output levels (3)

1739-1144/614/209/14 LED lumen / 1302-915/498/172/11 ANSI lumen

Runtime (3)

1-1.3/2.8/10 or 200 hrs (1×18650 3500mAh)

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light by pressing the tailcap button until it clicks.
  • Twist the head to select between three output levels.
  • Pre-selected output level before turning on the light.
  • Cycle through auxiliary modes: tight the head (1st level), and loose the head (3rd level) and then tight the head within one second to enter auxiliary setting. Repeat to cycle through all settings. Turn off the light or loose the head to quit.



Advanced operations:

  • Programing the third level output level: Switch to third level and turn on and off for 20 times.
  • Switching between regular mode and tactical mode: Switch to 2nd output level and turn the flashlight on and off for 20 times.
  • Tail strobe feature (off by default): With this enabled, you can access strobe output at the tailcap switch button . To toogle this function, switch to 1st level and turn the flashlight on and off 20 times. With the tailcap strobe setting enabled, a double press of the switch button will activate the strobe output.



Includes
