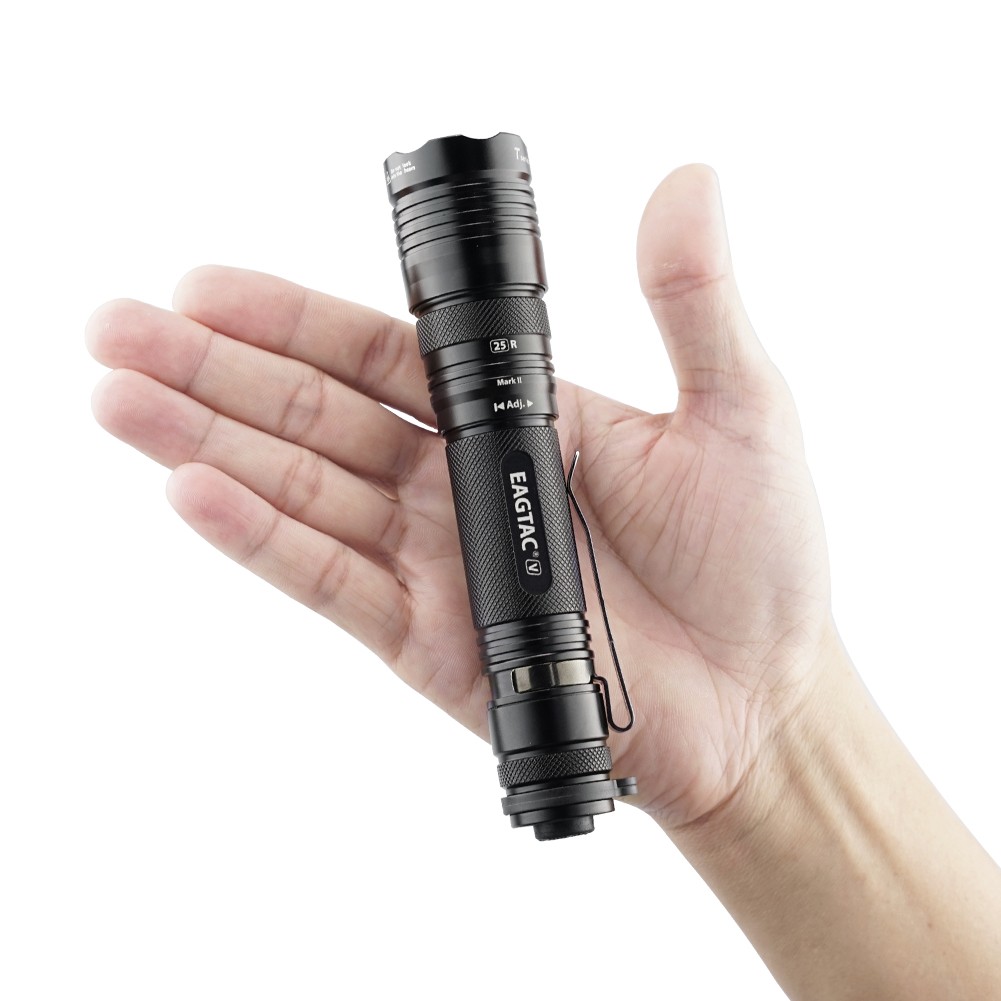

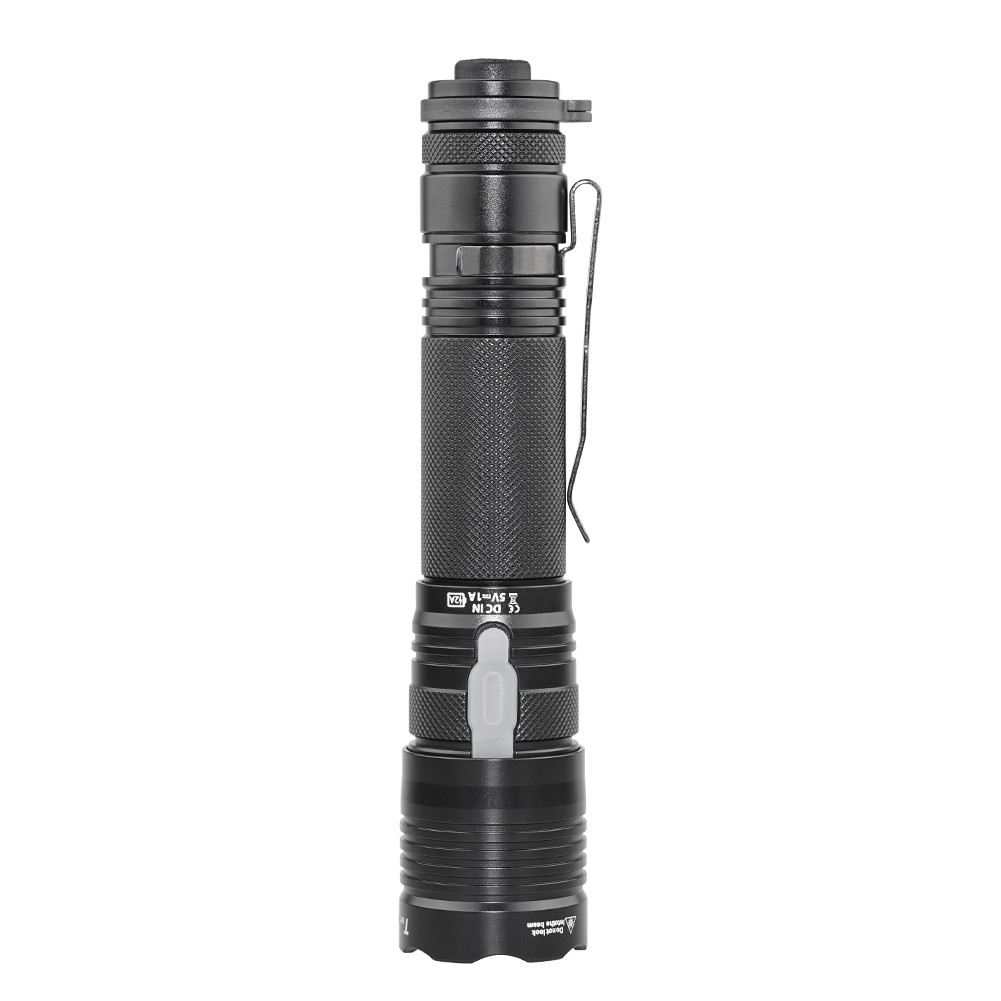

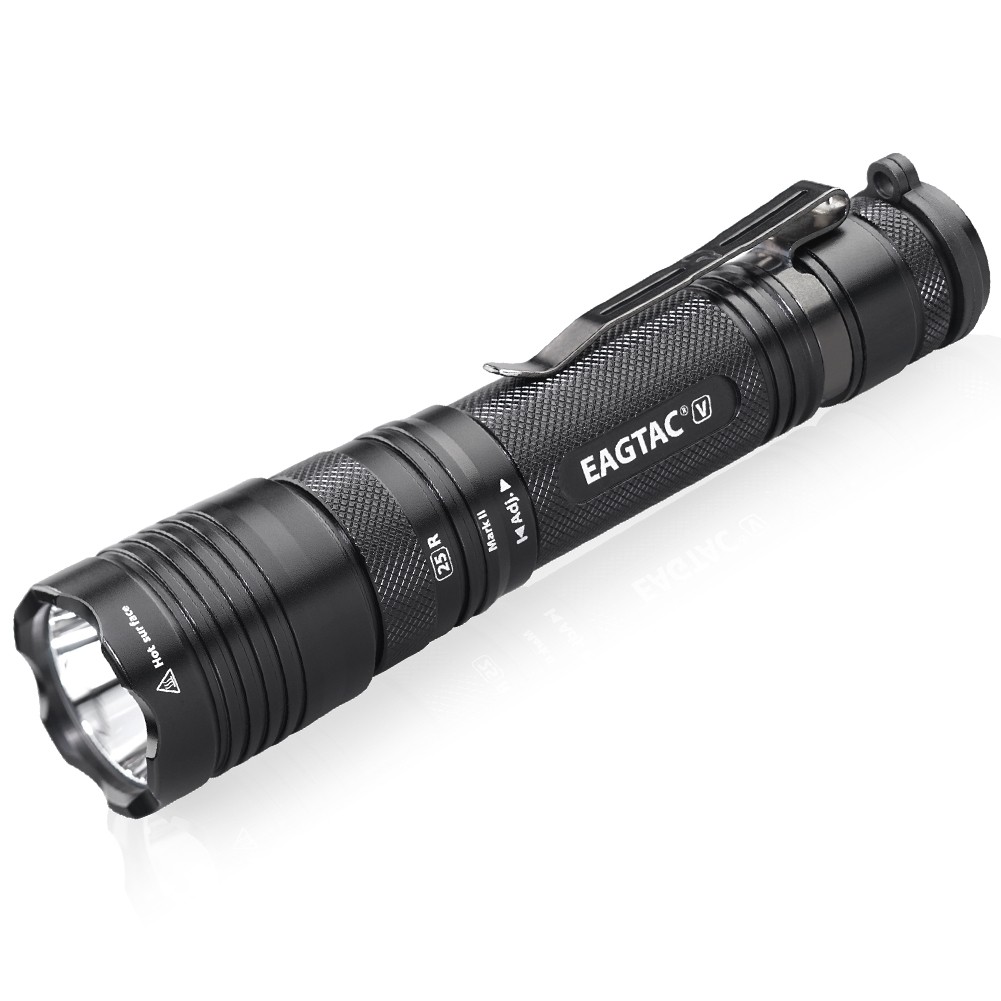

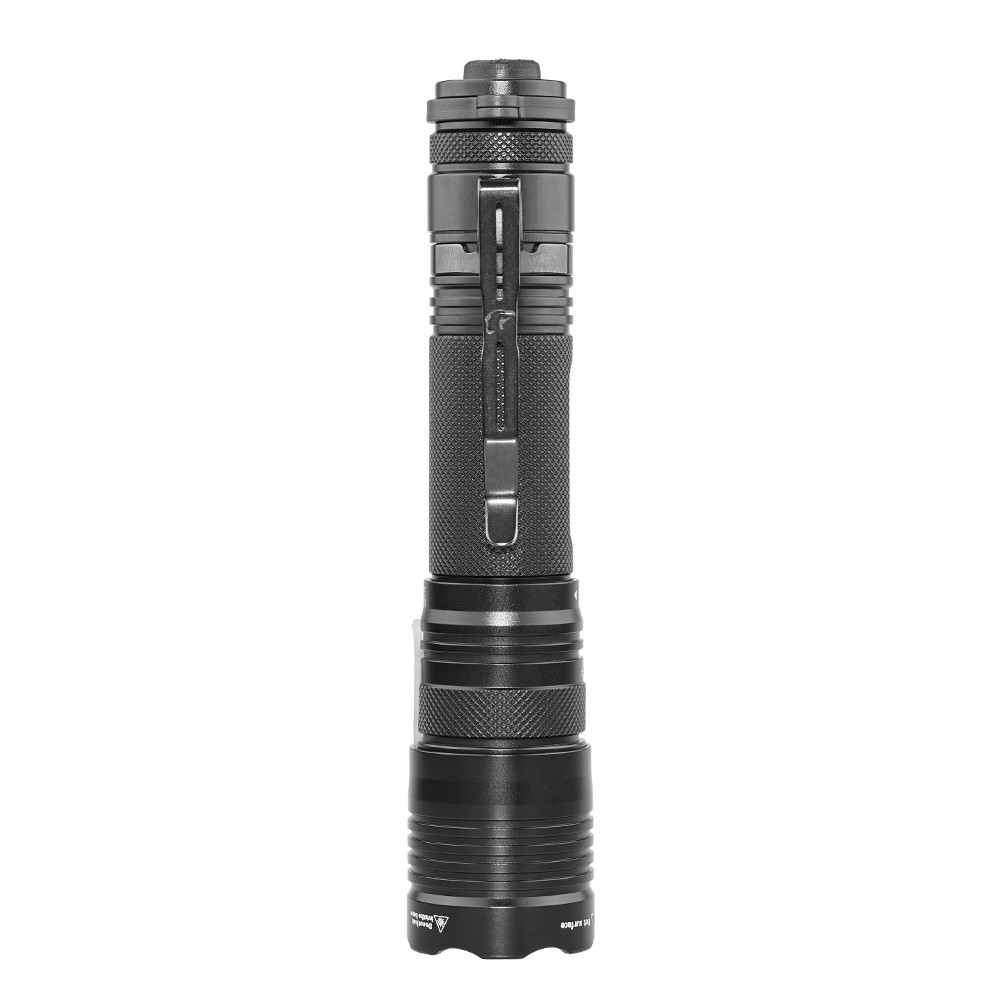

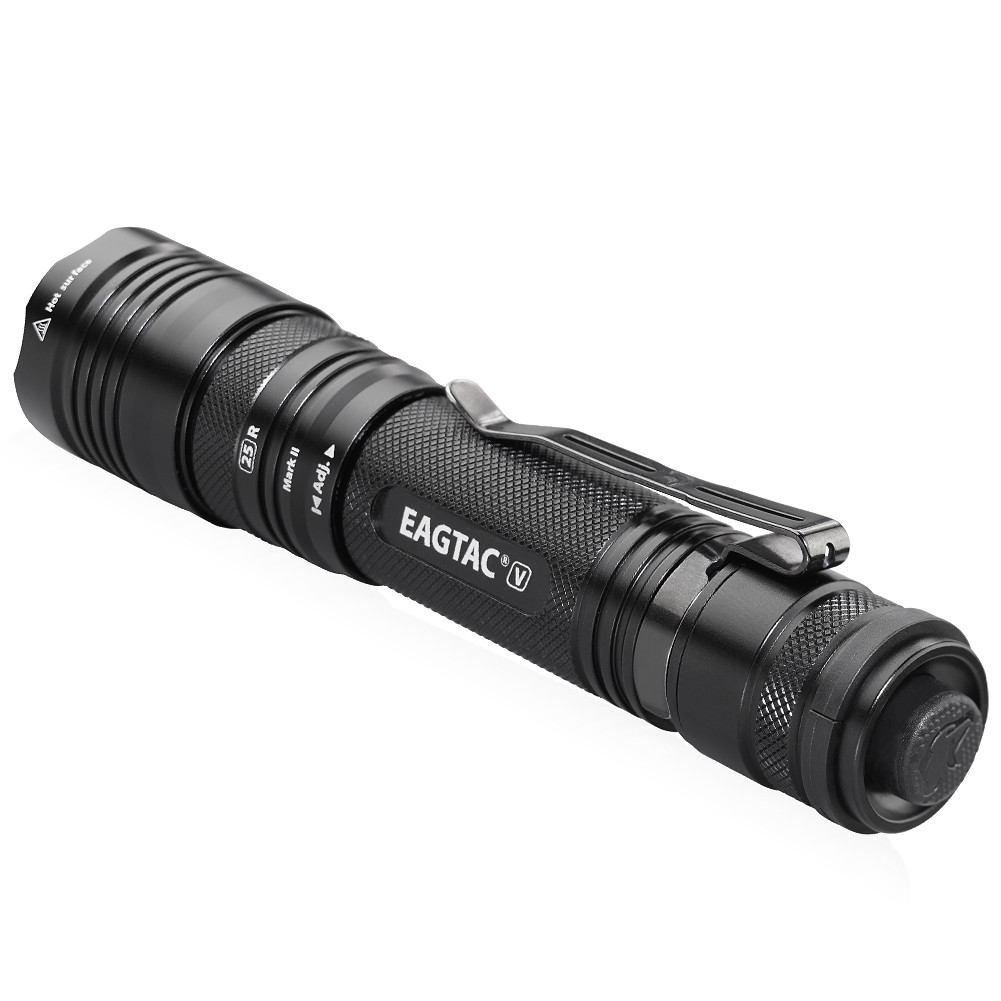

T25V

  • 3200 LED lumen powered by XHP70.2 LED
  • Three brightness levels,tail-cap strobe,customized output
  • Start-up with any output, programmable medium and low brightness level
  • Type-C USB rechargeable
  • Forward clicky on/off tailcap switch
  • Uses protected 21700 li-ion battery (21700 5000mAh Li-ion battery included)
  • 234 yards / 214 meters maximum beam distance
  • Up to 1.8 hrs on MAX output, 200 hrs on low output
Compare
Category:

Description


Additional information

Performance
LED

CREE XHP70.2 P2 Cool White LED

Max output

3200 LED lumen / 2600 ANSI lumen

Center lux @ 1 meter

10,500 lux

Beam distance

234 yards / 214 meters

Output levels

3200-1650/1350/950/455/115/60/18 LED lumen /2600-13505/1125/790/385/98/50/15 Strobe ANSI lumen

Runtime

0.8-1.8/2.5/3.5/7/35/65/200 hours

Battery
Battery Type

21700*1

Battery included

Built-in rechargeable

Operating voltage

2.7V – 4.2V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

Disorienting strobe/Flash/S.O.S./Beacon

Dimensions
Body Diameter

1 inch (25.4 mm)

Head Diameter

1.3 inches (33 mm)

Length

6.1 inches (155.86 mm)

Weight w/o battery

4.1 ounces (117 grams)

Weight w/ battery

6.6 ounces (188 grams)

Constructions
Flashlight Body Material

HAIII hard anodization aerospace aluminum

Lens

Harden waterwhite glass lens with anti-reflective coating on both side

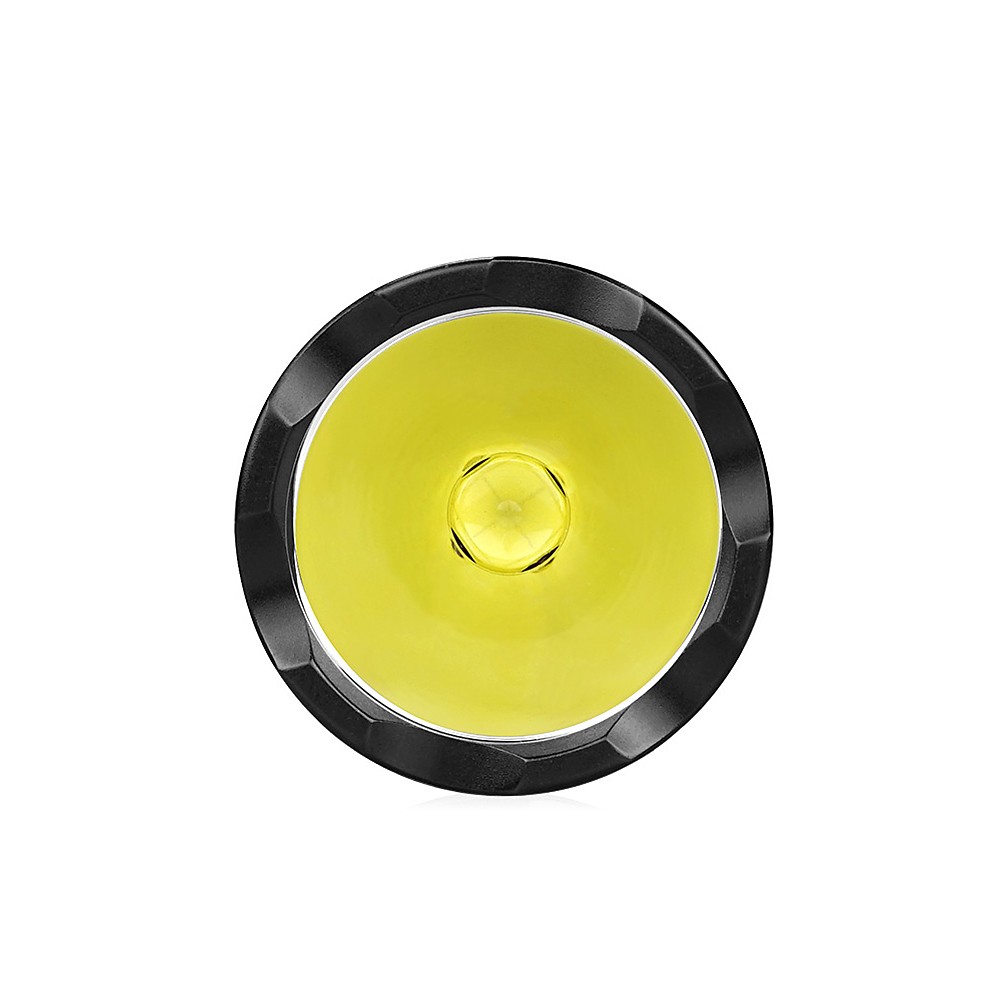

Reflector

Smooth aluminum reflector

Waterproof

IPX-8

Optional LED1
LED (1)

CREE XHP35 HI E2 Cool White LED

Max output (1)

2048 LED lumen / 1640 ANSI lumen

Center lux @ 1 meter (1)

Beam distance (1)

234 yards / 214 meters

Output levels (1)

Runtime (1)

1.1-2.5/280 hours

Optional LED2
LED (2)

CREE XHP70.2 N4 Neutral White LED

Max output (2)

2976 LED lumen / 2418 ANSI lumen

Center lux @ 1 meter (2)

Beam distance (2)

Output levels (2)

2976-1535/(1256-884-423)/(107-56-17) LED lumen / 2418-1256/(1046-735-358) / (91-47-14) ANSI lumen

Runtime (2)

0.8-1.8/2.5/3.5/7/35/65/200 hours

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light by pressing the tailcap button until it clicks.
  • Twist the head to select between three output levels.
  • Pre-selected output level before turning on the light.
  • Cycle through auxiliary modes: tight the head (1st level), and loose the head (3rd level) and then tight the head within one second to enter auxiliary setting. Repeat to cycle through all settings. Turn off the light or loose the head to quit.



Advanced operations:

  • Choose one of the four levels as the default medium output: Switch to medium output and turn the flashlight on and off for 20 times to cycle through the next output setting.
  • Choose one of the four levels as the default low output: Switch to low output and turn the flashlight on and off for 20 times to cycle through the next output setting.
  • Tail strobe feature (off by default): With this enabled, you can access strobe output at the tailcap switch button . To toogle this function, switch to 1st level and turn the flashlight on and off 20 times. With the tailcap strobe setting enabled, a double press of the switch button will activate the strobe output.



Charging:

  • Remove the waterproof cover and insert the included type-c charging cable to charge the battery.
  • The signal LED located at the waterproof cover indicates the charging status. Signal LED shuts off when charging is completed at 100% (it will not shut off when charging limit is set to 80% i.e. switch at off position).
  • During charge, switch on the flashlight switch at the tailcap to charge to 100%. Leaving the switch in off position will only charge the battery to 80% (extend battery life cycle).
  • Time to fully charge a depleted 21700 5000mAh battery is 3-4 hours

Includes
