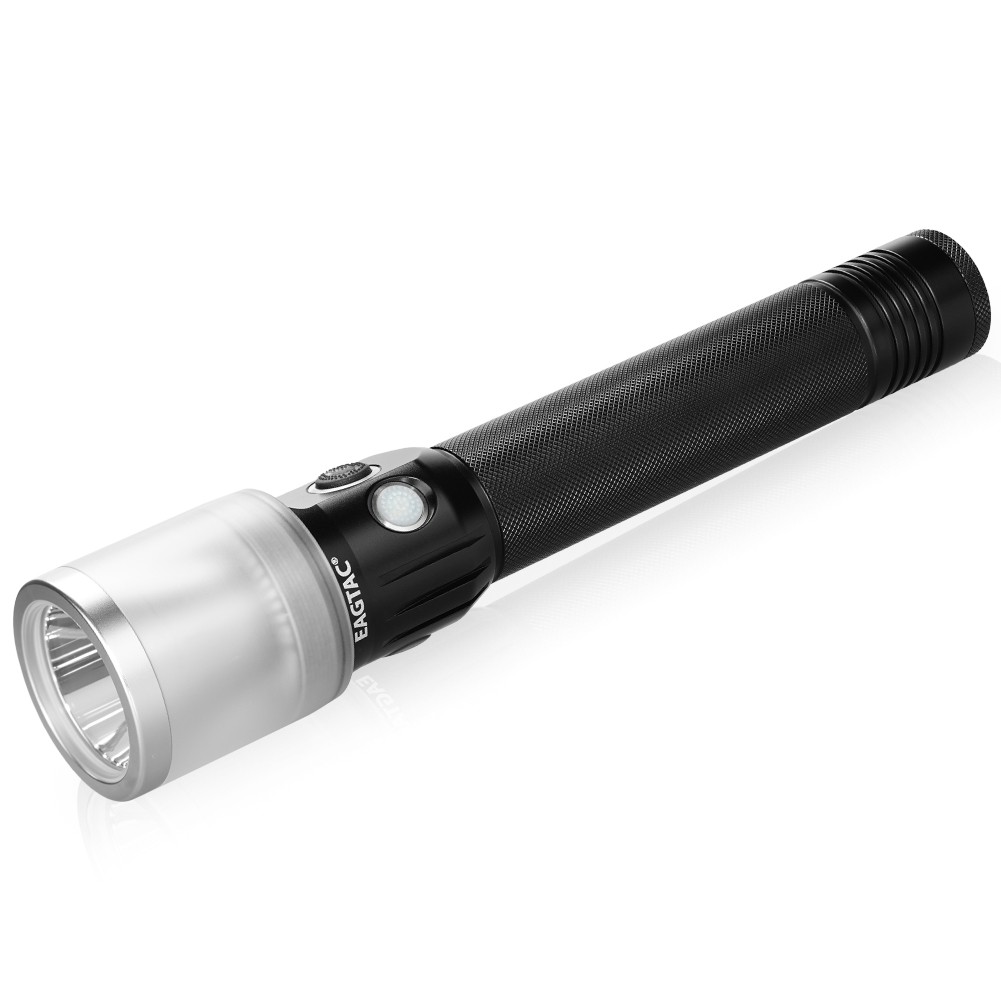

SX30L2-DR

  • 1700 LED lumen powered by XP-L HI LED
  • SPOT or DIFFUSED output, or Spot + Diffuser
  • Five brightness levels, disorienting Strobe/Beacon (1.67Hz)/S.O.S.
  • Turn on at MAX or MIN output, instant strobe
  • Dual head switch, tail stand
  • 12V waterproof fast charging, battery level report system
  • Uses protected 2*26650 li-ion battery pack (EAGTAC battery pack included)
  • 572 yards / 180 meters maximum beam distance
  • Up to 2.3 hrs on MAX output, 250 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

CREE XP-L HI V3 Cool White LED+ Flood LED Array (C.W.)

Max output

1700 LED lumen /1247 ANSI lumen

Center lux @ 1 meter

81,300 lux

Beam distance

622 yards / 570 meters

Output levels

1700-1353/873/350/137/20 LED lumen /1247-1072/690/276/107/17 ANSI lumen

Runtime

2.3/4.5/14/42/250 hours

Battery
Battery Type

Battery Pack 7.4V 32650*2

Battery included

Built-in rechargeable

Operating voltage

5.4V – 8.4V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

Disorienting Strobe/Beacon (1.67Hz)/S.O.S.

Dimensions
Body Diameter

1.2 inches (31 mm)

Head Diameter

1.9 inches (47 mm)

Length

9 inches (230 mm)

Weight w/ battery

14.8 ounces (420 grams)

Constructions
Flashlight Body Material

HAIII hard anodization aerospace aluminum

Lens

Harden waterwhite glass lens with anti-reflective coating on both side

Reflector

Smooth aluminum reflector

Waterproof

IPX-8

Optional LED1
LED (1)

CREE XP-L HI V2 Neutral White LED+ Flood LED Array (N.W.)

Max output (1)

1581 LED lumen / 1160 ANSI lumen

Center lux @ 1 meter (1)

Beam distance (1)

Output levels (1)

1581-1260/812/326/127/19 LED lumen / 1160-997/642/257/100/16 ANSI lumen

Runtime (1)

2.3/4.5/14/42/250 hours

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light at MAX output by pressing the BLACK button switch. Turn on the light at LOWEST output by pressing the WHITE button switch.
  • To turn off the light anytime, press and release the BLACK button switch.



Spot / Diffuser setting:

  • Press and hold the BLACK button switch and press the white button switch to cycle between i) spot, ii) diffused, and ii) all LED on setting.



Advanced operations:

  • For MAX output momentary on, press and hold the BLACK button switch for immediate output.
  • To switch between different brightness levels, press and release the WHITE button switch when the flashligh is on.
  • (For example: if you want to turn on the flashlight at the 3rd level, just press and release the white button switch three times from off.)
  • To enter hidden auxiliary levels, press and hold the WHITE button switch for 4 seconds when the flashligh is on.
  • For instant MAX output – at any output level, press and hold the BLACK button switch. Release the button to return to previous level.
  • For instant Strobe output – at any output level (even) off), double press and hold the BLACK button switch. Release the button to return to previous level (or off).



Charging:

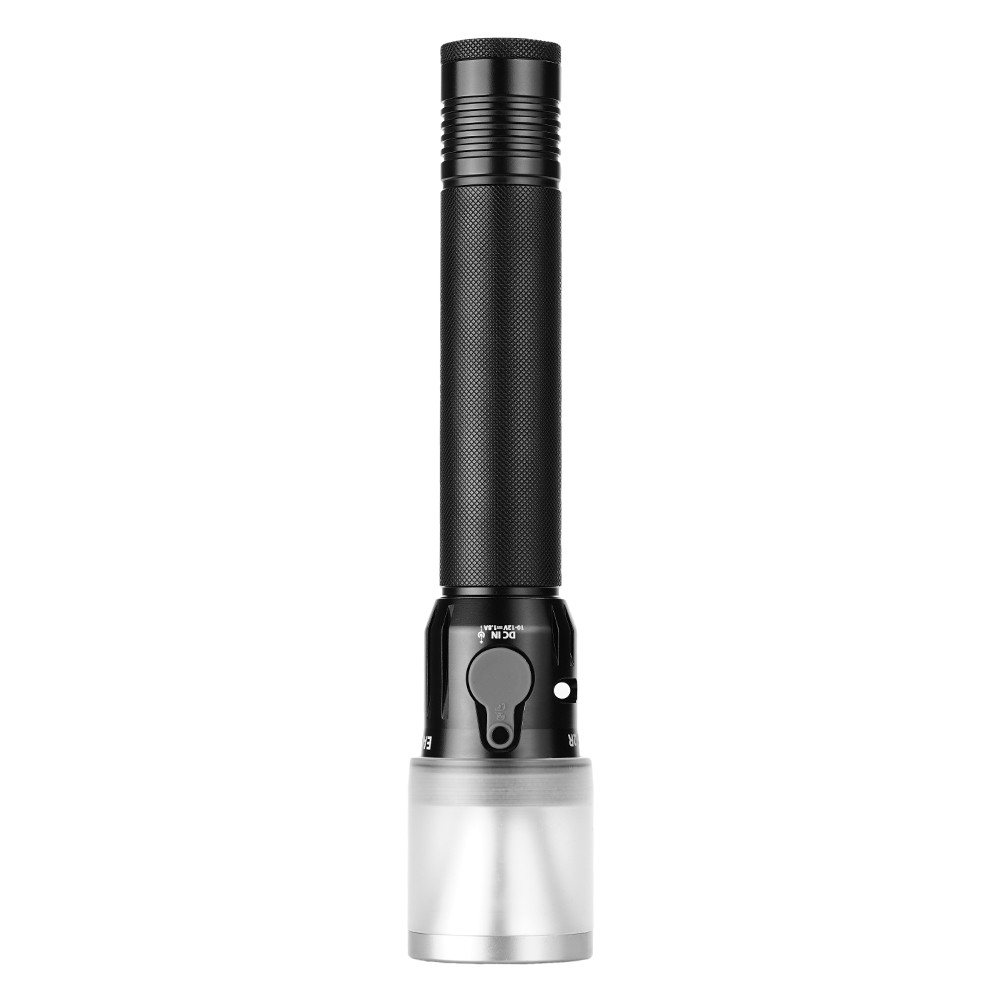

  • Remove the waterproof silicon cap and insert the charging power plug to charge.
  • Blue LED indicates the battery is being charged. Charging is finished when the blue LED indicator is off.

Includes
