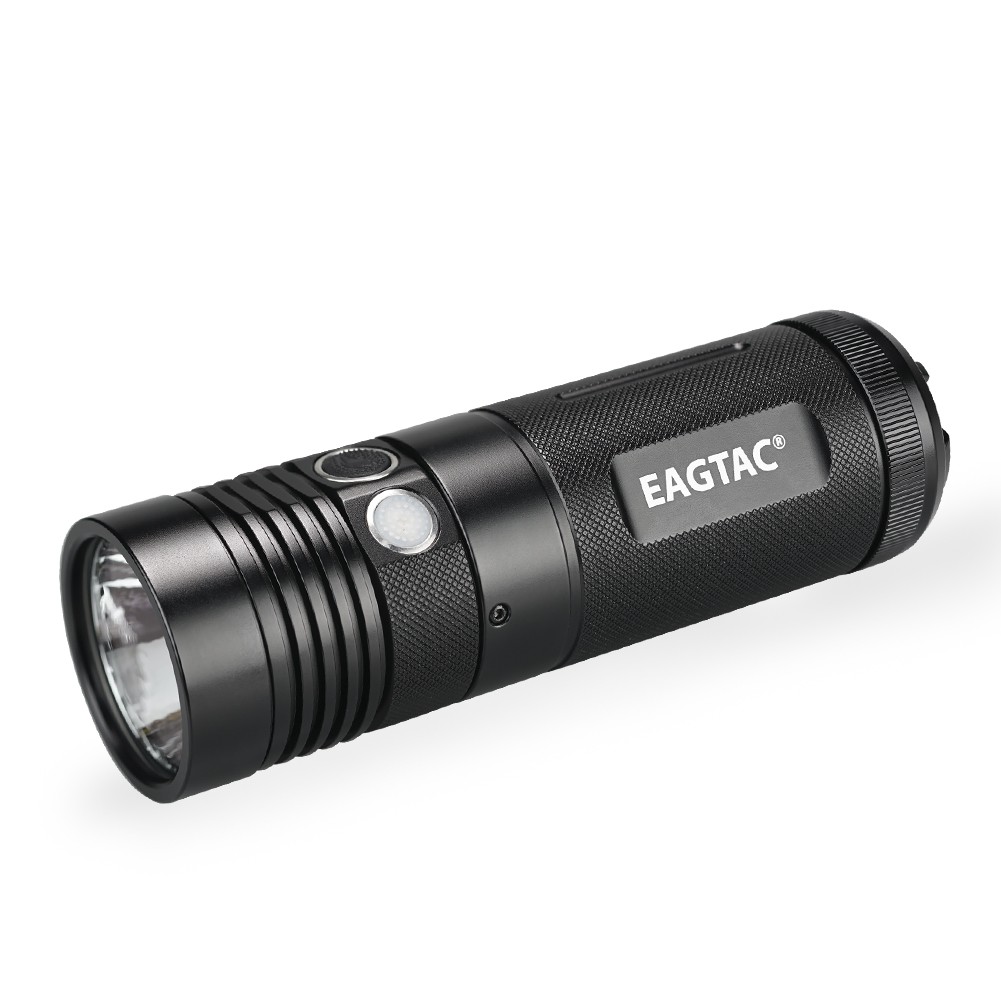

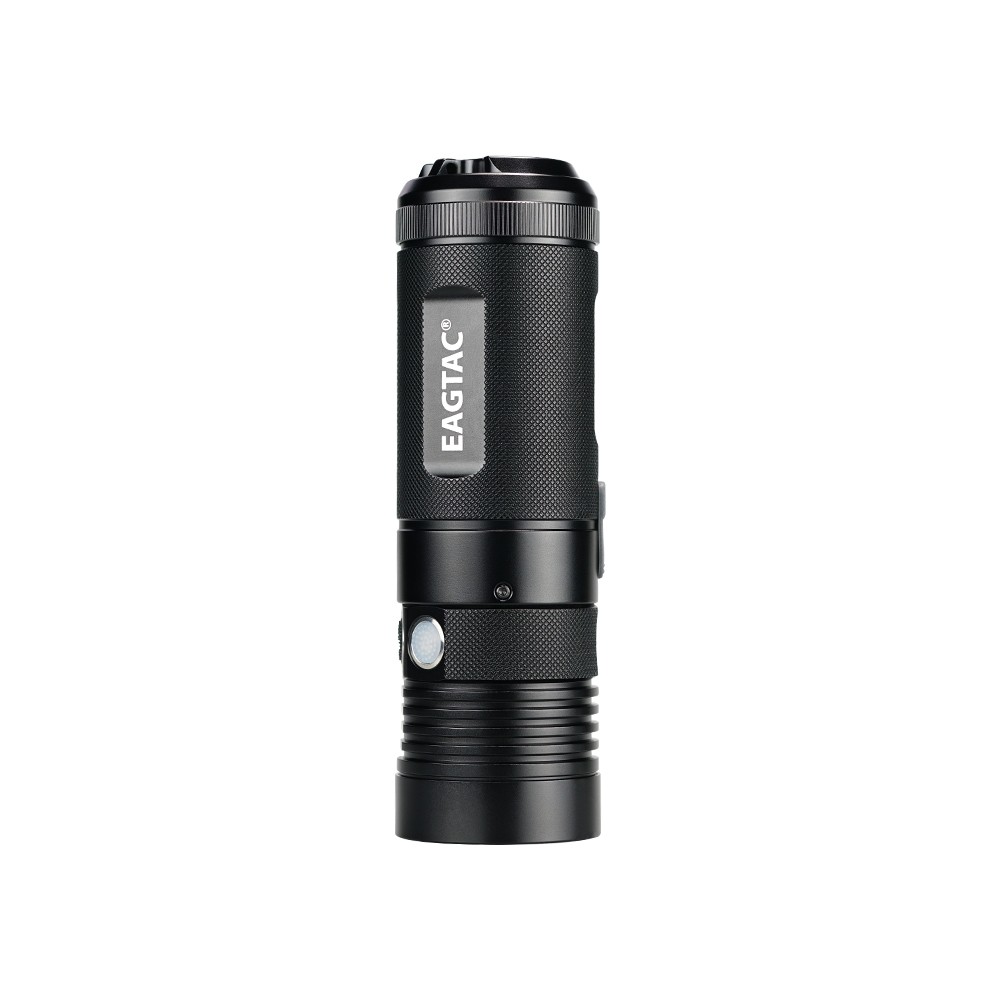

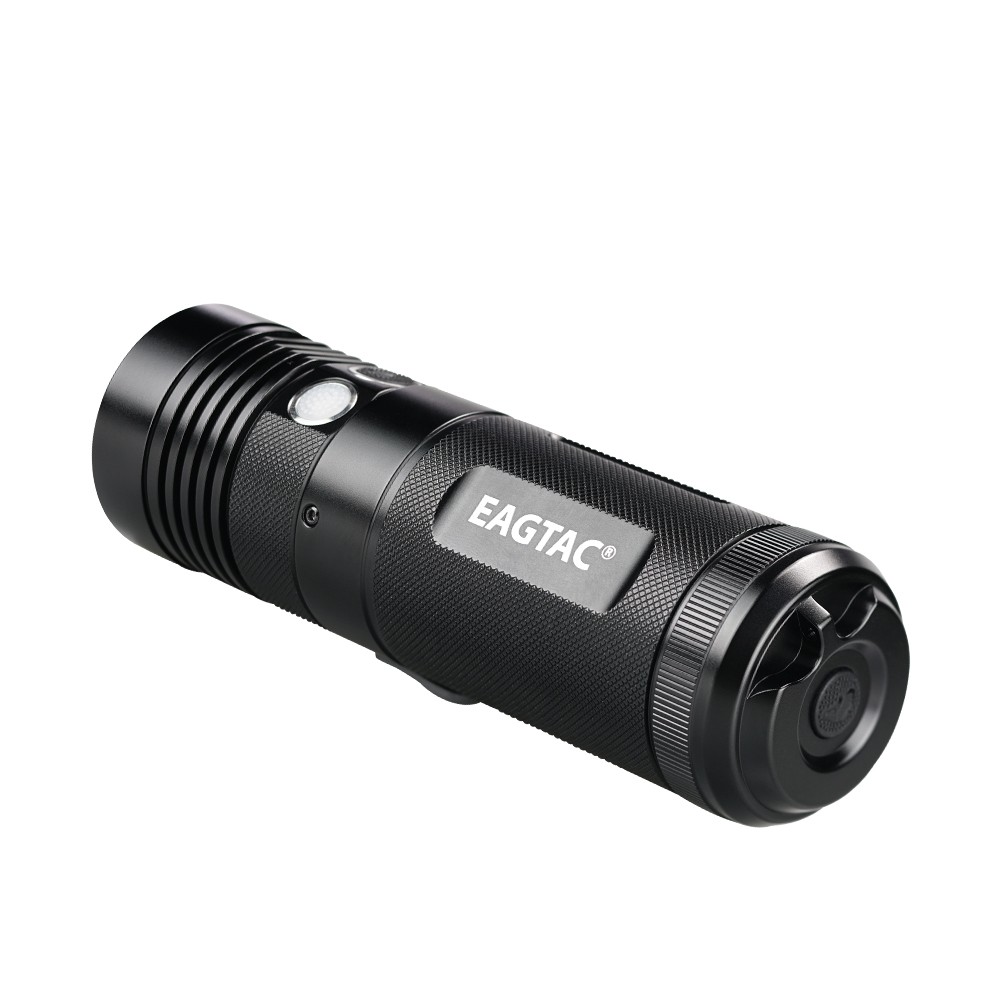

SX30L3-R

  • 4850 LED lumen powered by XHP70.2 LED
  • Five brightness levels,Disorienting Strobe/Beacon (1.67Hz)/S.O.S.
  • 12W fast charging, charging/battery level report
  • Dual head switches, tailcap switch
  • Uses protected 3*18650 li-ion battery (EAGTAC 11.1V 3*18650 2600mAh battery pack included)
  • 393 yards / 361 meters maximum beam distance
  • Up to 1.6 hrs on MAX output, 120 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

CREE XHP70.2 P2 Cool White LED

Max output

– | 4850 LED lumen /4060 ANSI lumen

Center lux @ 1 meter

32,500 lux

Beam distance

393 yards / 361 meters

Output levels

4850-3265/2470/925/360/54 LED lumen /4060-2802/2135/802/315/47 ANSI lumen

Runtime

1.1-2.2/3.6/13/40/160 hours (38.8Wh battery)

Battery
Battery Type

Battery Pack 11.1V 18650*3

Battery included

Built-in rechargeable

Operating voltage

8.1V – 12.6V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

Disorienting Strobe/Beacon (1.67Hz)/S.O.S.

Dimensions
Body Diameter

1.8 inches (45.5 mm)

Head Diameter

1.85 inches (47 mm)

Length

6 inches (152 mm)

Weight w/ battery

14.5 ounces (410 grams)

Constructions
Flashlight Body Material

Lens

Reflector

Aluminum reflector with smooth coating

Waterproof

IPX-8

Optional LED1
LED (1)

CREE XHP70.2 Nuetral White LED

Max output (1)

4510 LED lumen / 3780 ANSI lumen

Center lux @ 1 meter (1)

Beam distance (1)

Output levels (1)

4510-3036/2297/860/335/50 LED lumen / 3780-2606/1986/746/293/44 ANSI lumen

Runtime (1)

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light at MAX output by pressing the BLACK button switch. Turn on the light at LOWEST output by pressing the WHITE button switch.
  • To turn off the light anytime, press and release the BLACK button switch.



Advanced operations:

  • For MAX output momentary on, press and hold the BLACK button switch for immediate output.
  • To switch between different brightness levels, press and release the WHITE button switch when the flashligh is on.
  • To enter hidden auxiliary levels, press and hold the WHITE button switch when the flashligh is on.
  • For instant MAX output – at any output level, press and hold the BLACK button switch. Release the button to return to previous level.
  • For instant Strobe output – at any output level (even) off), double press and hold the BLACK button switch. Release the button to return to previous level (or off).
  • The optional switch button located at the tailcap is treated as the secondary BLACK switch button.



Charging:

  • Remove the waterproof cover and insert the charging connector to charge the battery. The flashlight will switch off the LED output during charge automatically.
  • When charging is finished, unplug the charging connector and restart the flashlight.

Includes
