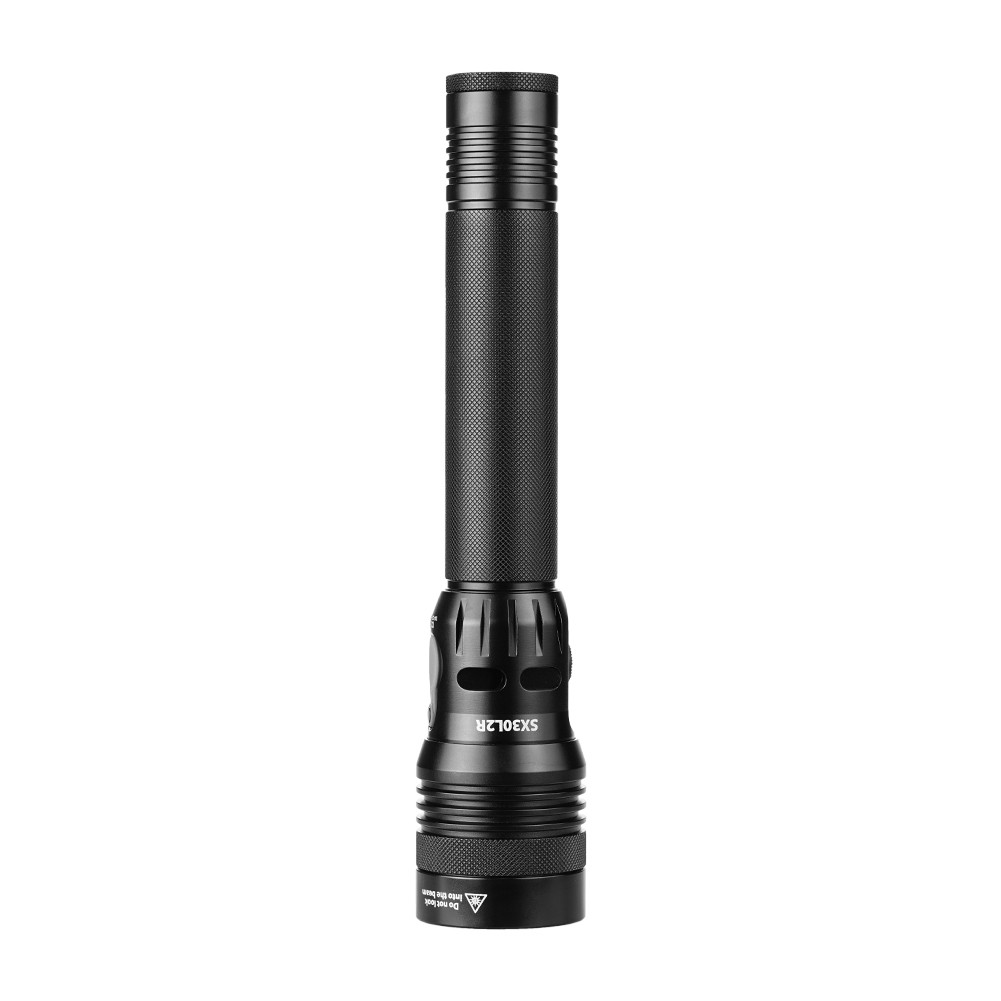

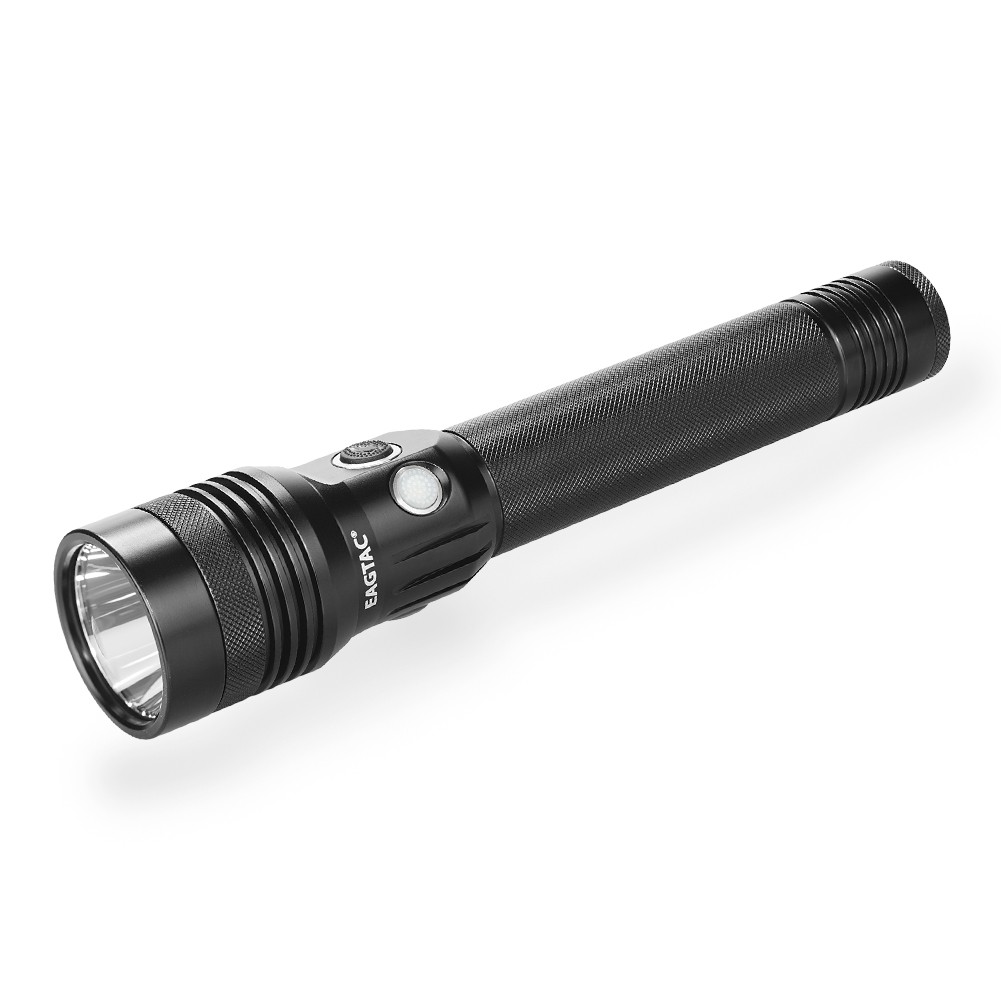

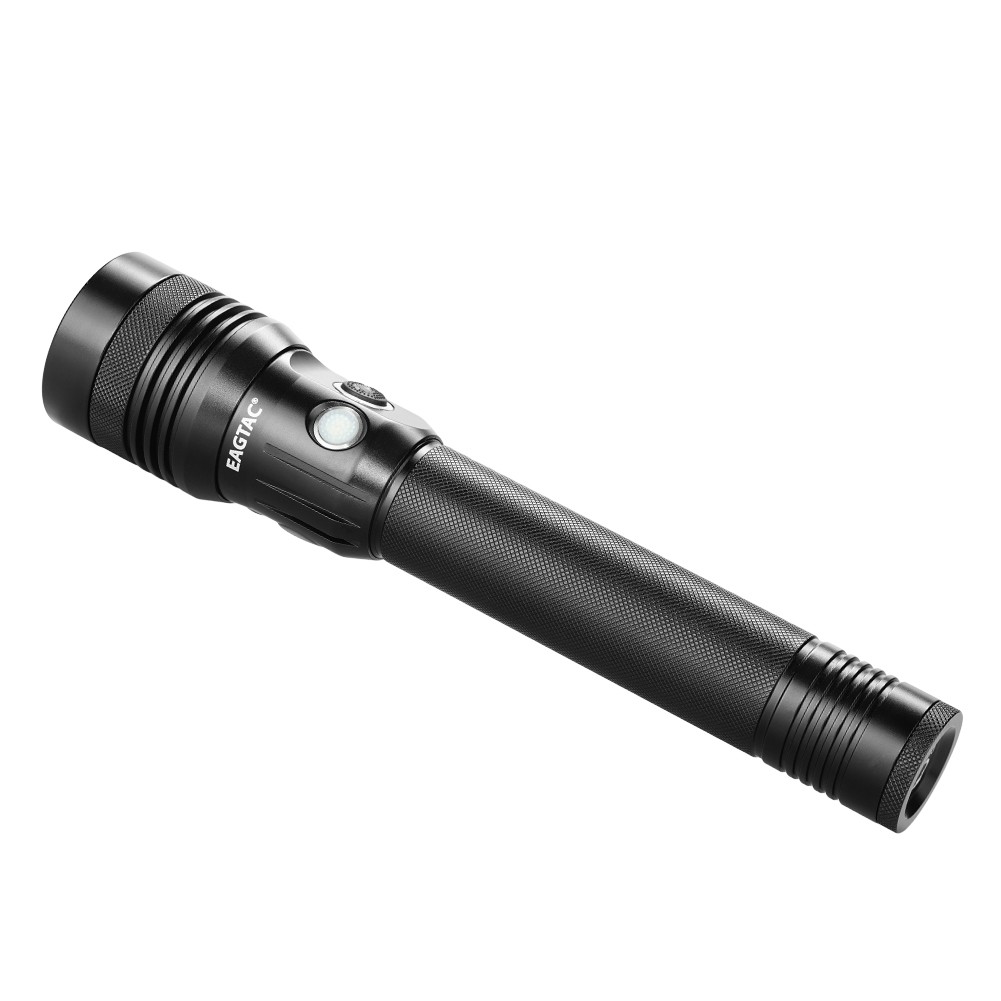

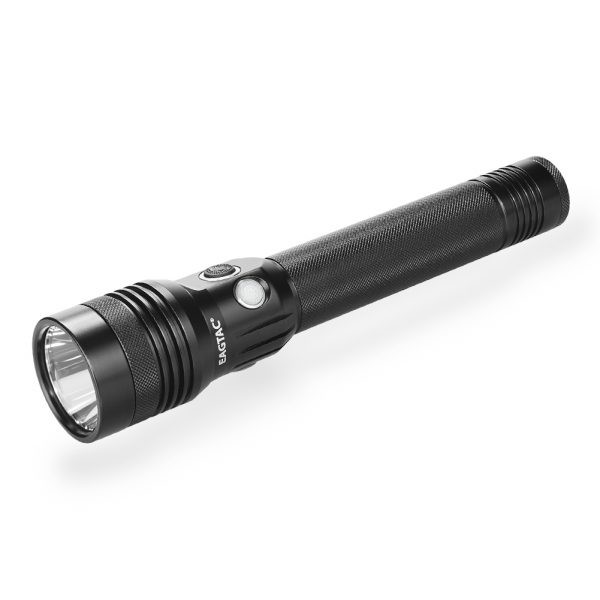

SX30L2-R MKII

  • 2650 LED lumen powered by XHP35 HD E4 LED
  • Five brightness levels,instant strobe,programmable start-up level

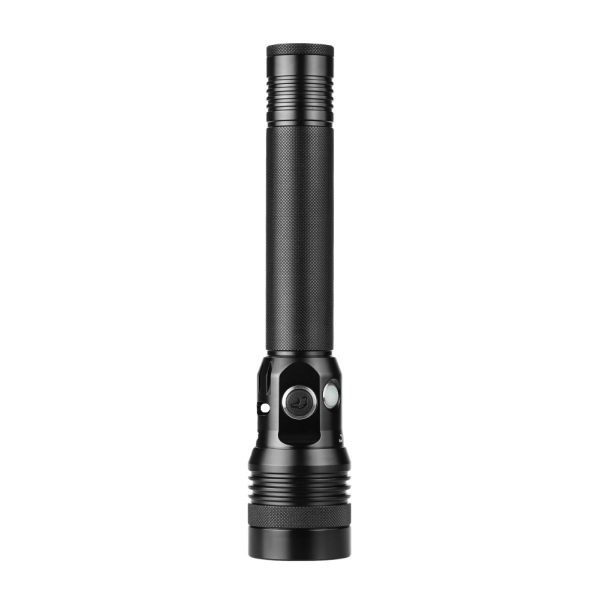

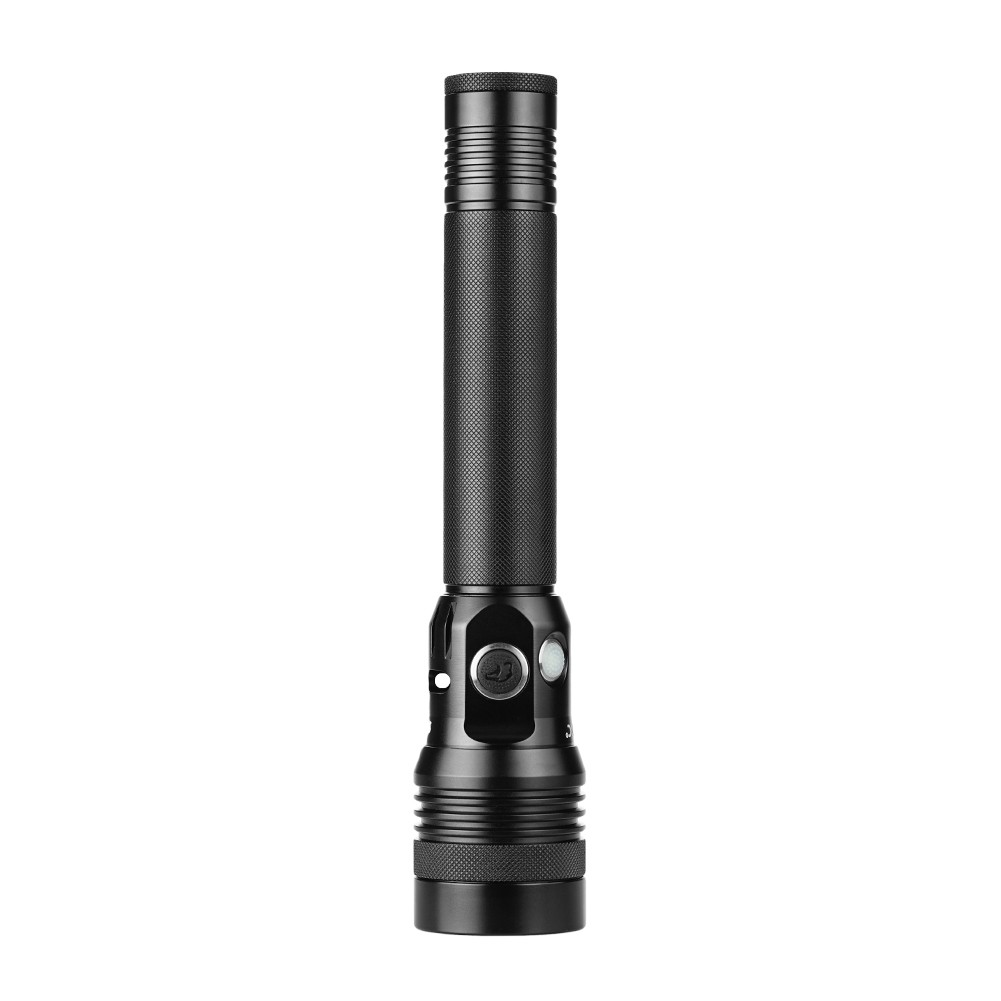

  • Dual head switch, tail stand
  • 12V fast charging, charging / battery level report
  • Uses protected 2*26650 li-ion battery pack (EAGTAC 7.4V 5000mAh battery pack included)
  • 716 yards / 657 meters maximum beam distance
  • Up to 2.1 hrs on MAX output, 400 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

CREE XHP35 HD E4 LED (2650)

Max output

2650 LED lumen /2140 ANSI lumen

Center lux @ 1 meter

69,300 lux

Beam distance

574 yards / 526 meters

Output levels

2650-2050/1360/750/205/20 LED lumen /2140-1660/1120/630/170/17 ANSI lumen

Runtime

1.5-2.1/4.1/8.7/40/400+ hours (R37)

Battery
Battery Type

Battery Pack 7.4V 32650*2

Battery included

Built-in rechargeable

Operating voltage

5.4V – 8.4V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

Disorienting Strobe/Beacon (1.67Hz)/S.O.S.

Dimensions
Body Diameter

1.2 inches (31 mm)

Head Diameter

1.8 inches (47 mm)

Length

9 inches (230 mm)

Weight w/ battery

15.5 ounces (440 grams)

Constructions
Flashlight Body Material

HAIII hard anodization aerospace aluminum

Lens

Harden waterwhite glass lens with anti-reflective coating on both side

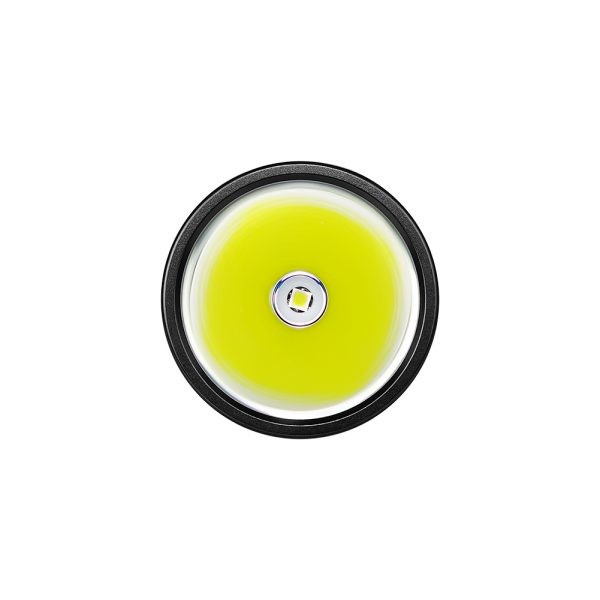

Reflector

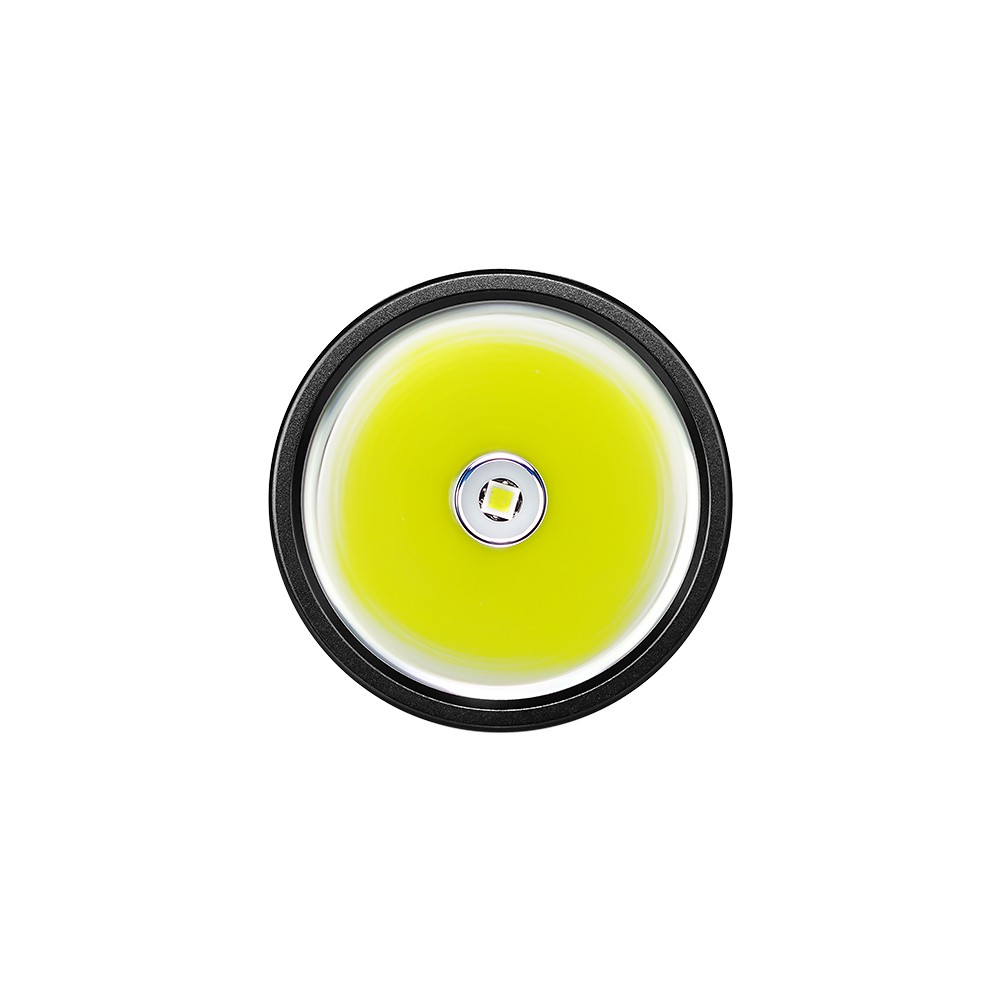

Smooth aluminum reflector

Waterproof

IPX-8

Optional LED1
LED (1)

CREE XHP35 HI E2 LED (2450)

Max output (1)

2450 LED lumen /1940 ANSI lumen

Center lux @ 1 meter (1)

108,000 lux

Beam distance (1)

716 yards / 657 meters

Output levels (1)

2450-1890/1250/680/185/17 LED lumen /1940-1520/995/545/150/14 ANSI lumen

Runtime (1)

1.5-2.1/4.1/8.7/40/400+ hours (R37)

Optional LED2
LED (2)

CREE XHP35 HD E2 Neutral White LED

Max output (2)

2450 LED lumne / 1990 ANSI lumen

Center lux @ 1 meter (2)

Beam distance (2)

Output levels (2)

2450-1906/1265/698/191/19 LED lumen / 1990-1544/1042/586/158/16 ANSI lumen

Runtime (2)

1.5-2.1/4.1/8.7/40/400+ hours (R37)

Optional LED3
LED (3)

CREE XHP35 HI D4 Neutral White LED

Max output (3)

2280 LED lumen / 1804 ANSI lumen

Center lux @ 1 meter (3)

Beam distance (3)

Output levels (3)

2280-1758/1163/632/172/16 LED lumen / 1804-1414/925/507/140/13 ANSI lumen

Runtime (3)

1.5-2.1/4.1/8.7/40/400+ hours (R37)

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light at MAX output by pressing the BLACK button switch.
  • Turn on the light at LOWEST (programmable) output by pressing the WHITE button switch.
  • To turn off the light anytime, press and release the BLACK button switch.



Advanced operations:

  • To program the LOWEST startup output, switch to the desired output level and continuously pressing and holding the button for three seconds until the side LED flashes.
  • (Flashlight w/ programmable feature) In rare occasion user may experience the absence of lowest output level from a brand new purchase. If this is case, set the programmable startup level once will initialize the memory setting and will take care of this issue once and for all.
  • For MAX output momentary on, press and hold the BLACK button switch for immediate output.
  • To switch between different brightness levels, press and release the WHITE button switch when the flashligh is on.
  • To enter hidden auxiliary levels, cycle through at least two cycle of regular output.
  • For instant MAX output – at any output level, press and hold the BLACK button switch. Release the button to return to previous level.
  • For instant Strobe output – at any output level (even) off), double press and hold the BLACK button switch. Release the button to return to previous level (or off).



Charging:

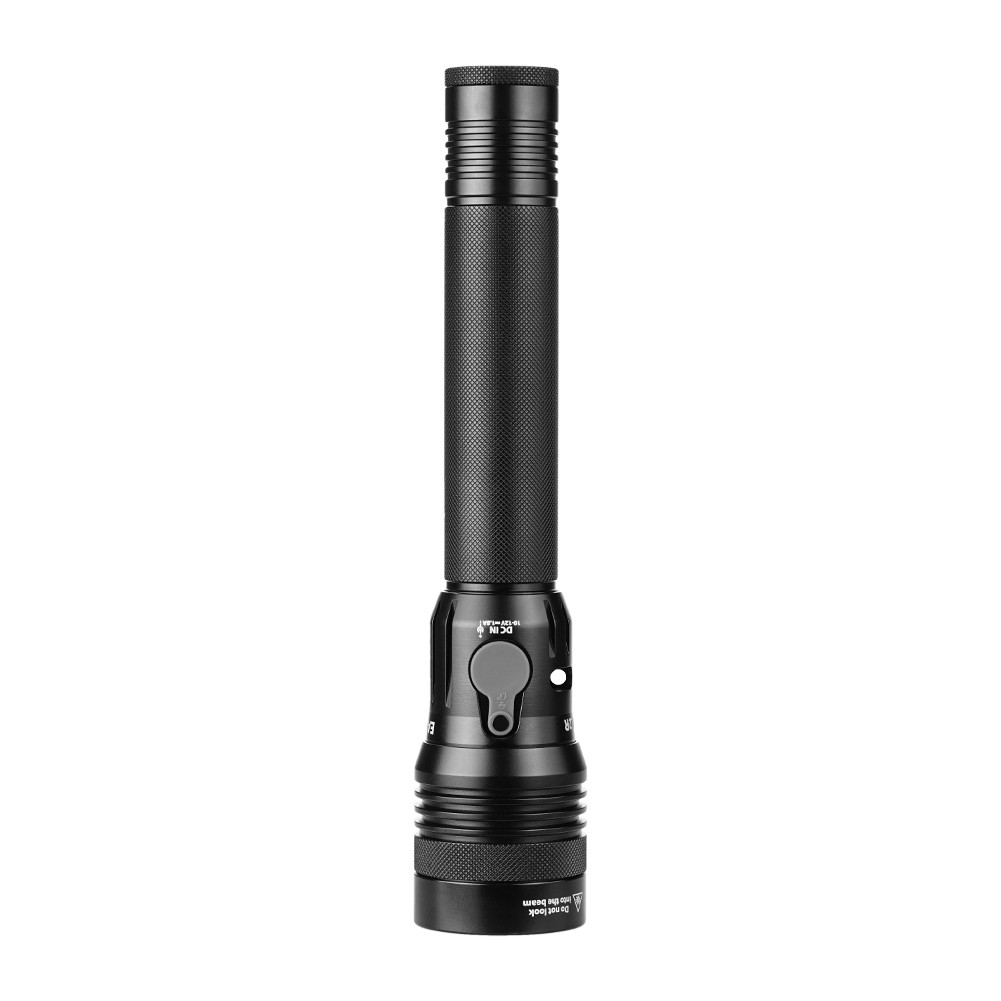

  • Remove the waterproof silicon cap and insert the charging power plug to charge.
  • Blue side LED indicates the battery is being charged. It reports charging percentage by blinking.
