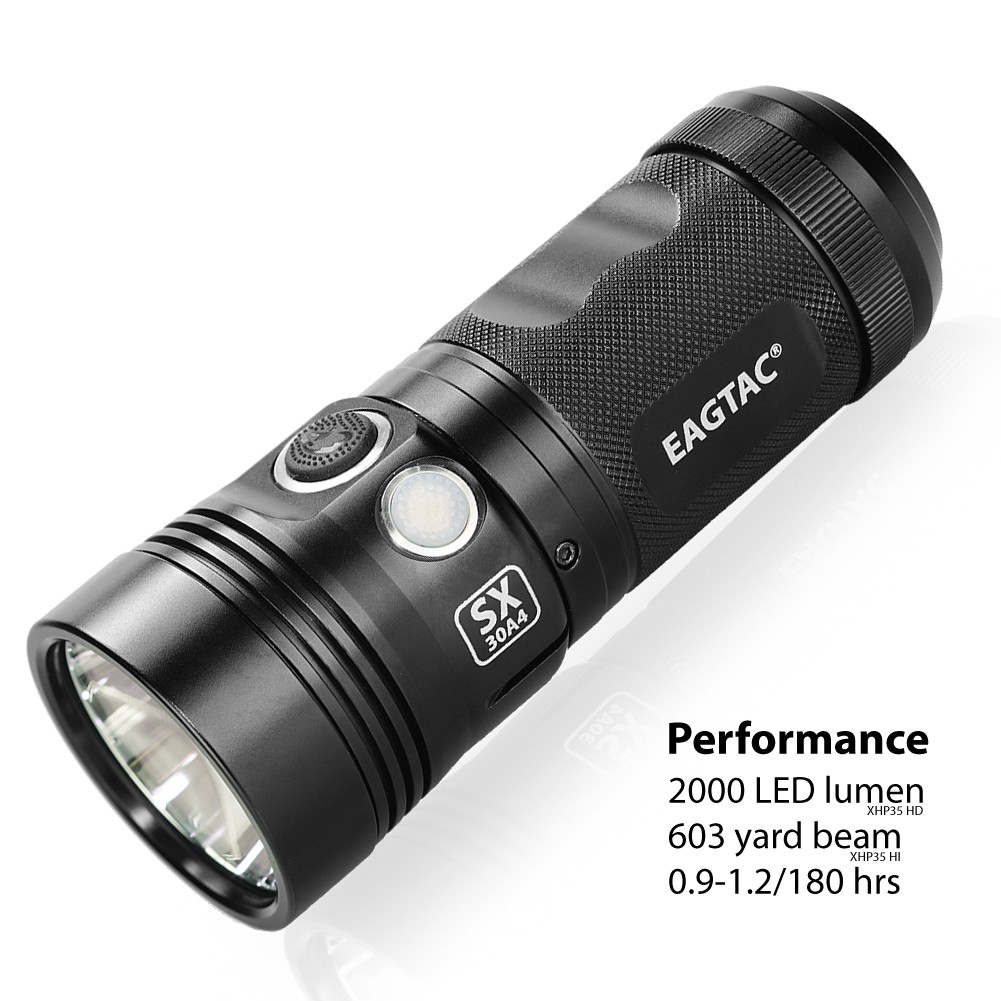

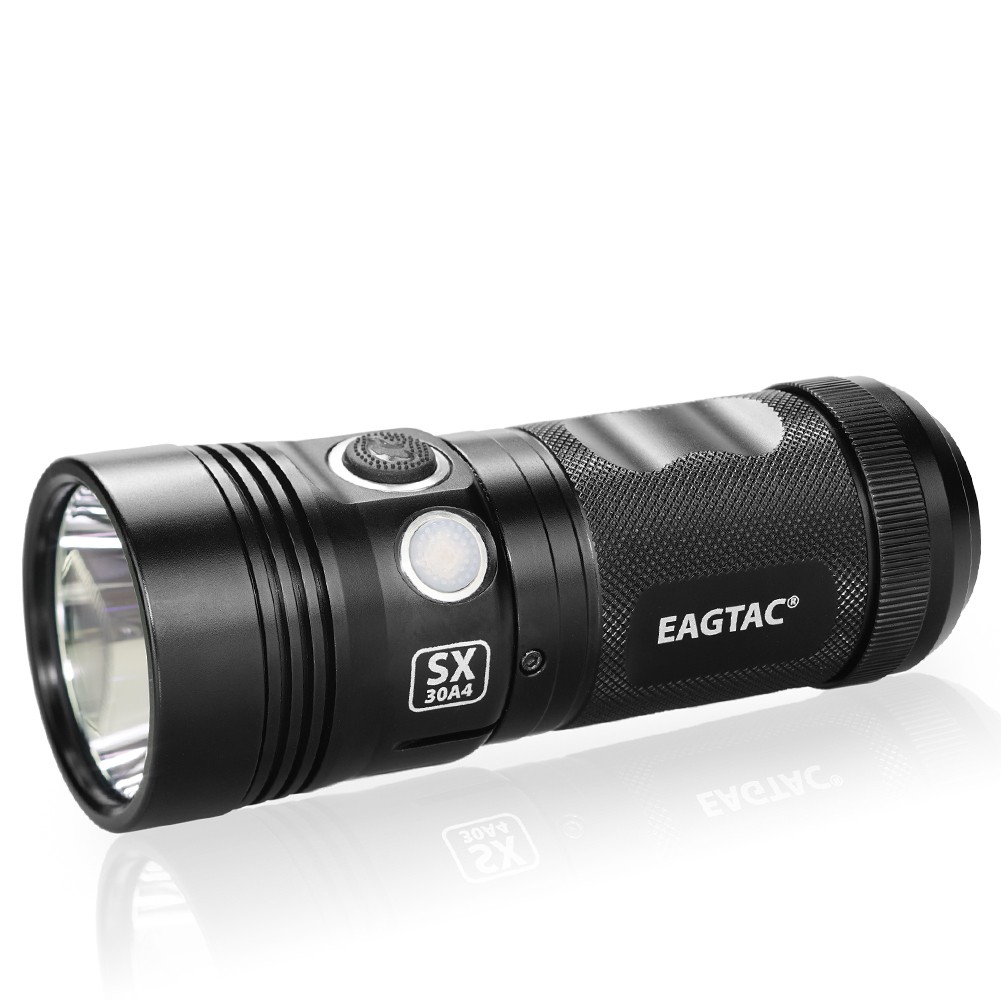

SX30A4

  • 2000 LED lumen powered by XHP35 HD E4 LED
  • Five brightness levels, disorienting Strobe
  • Programmable startup level, instant Max output and instant strobe
  • Dual head switch, tailcap switch
  • Battery level report system
  • Uses 4*AA batteries (AA – 1.2V/1.5V)
  • 603 yards / 553 meters maximum beam distance
  • Up to 1.2 hrs on MAX output, 180 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

CREE XHP35 HD E4 Cool White LED

Max output

2000 LED lumen /1618 ANSI lumen

Center lux @ 1 meter

43,200 lux

Beam distance

453 yards / 416 meters

Output levels

2000-1350/820/355/130/17 LED lumen /1618-1120/719/299/108/14 ANSI lumen

Runtime

0.9-1.2/2.4/6.5/20/180 hrs

Battery
Battery Type

AA*4

Battery included

Built-in rechargeable

Operating voltage

2.7V – 7V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

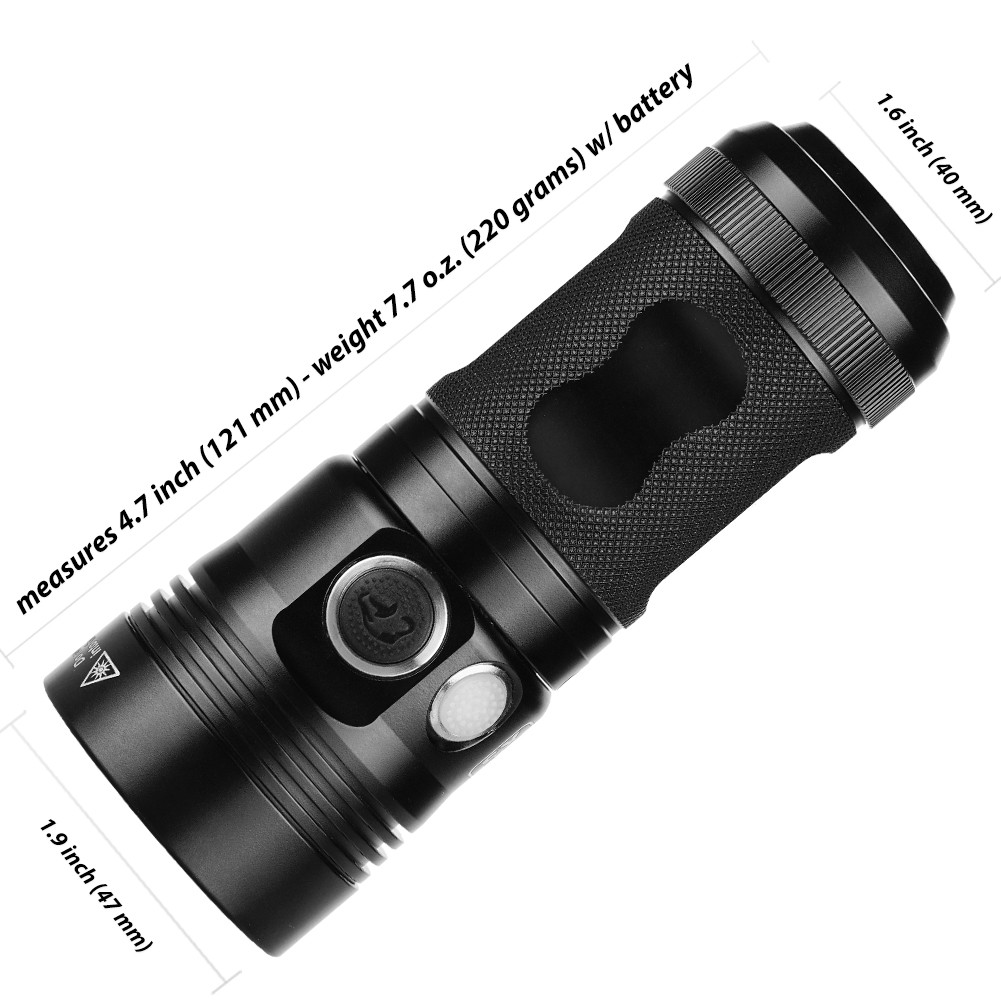

Dimensions
Body Diameter

1.6 inches (40 mm)

Head Diameter

1.9 inches (47 mm)

Length

4.7 inches (121 mm)

Weight w/ battery

4.7 inches (121 mm)

Constructions
Flashlight Body Material

HAIII hard anodization aerospace aluminum

Lens

Harden waterwhite glass lens with anti-reflective coating on both side

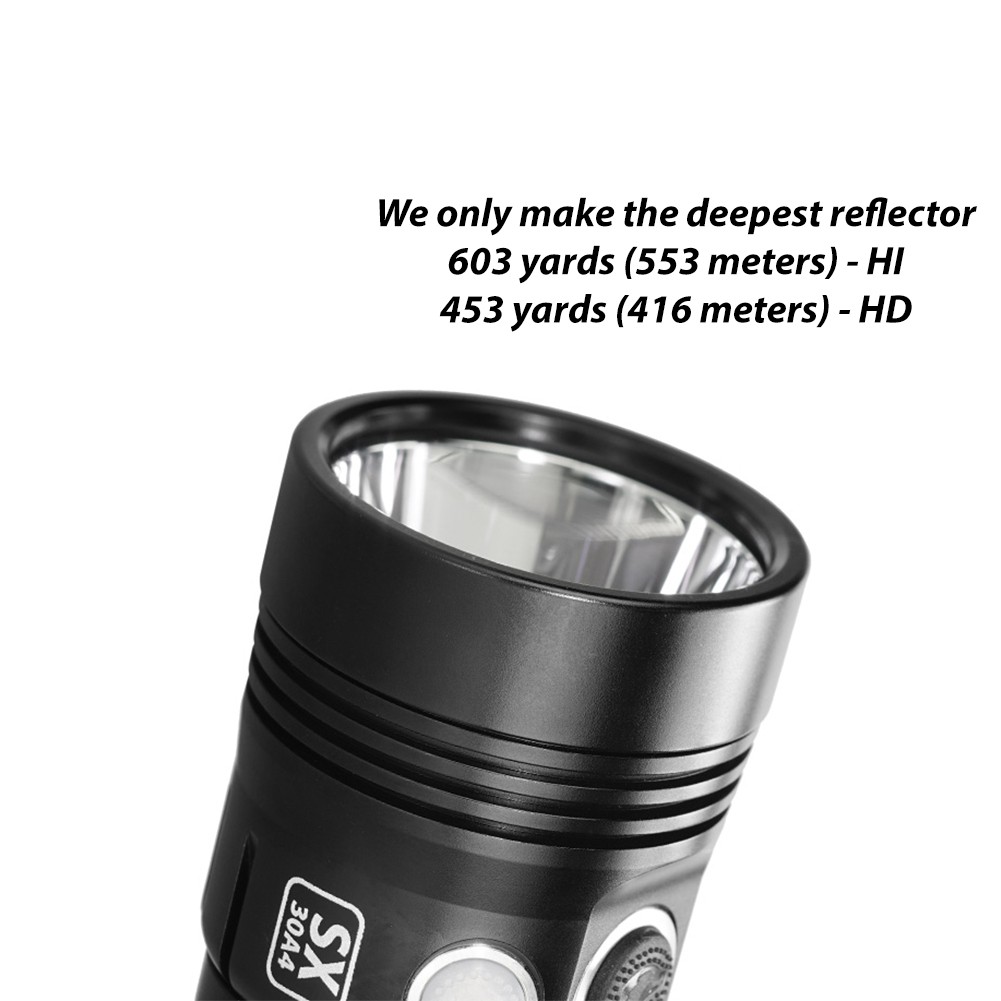

Reflector

Smooth aluminum reflector

Waterproof

IPX-8

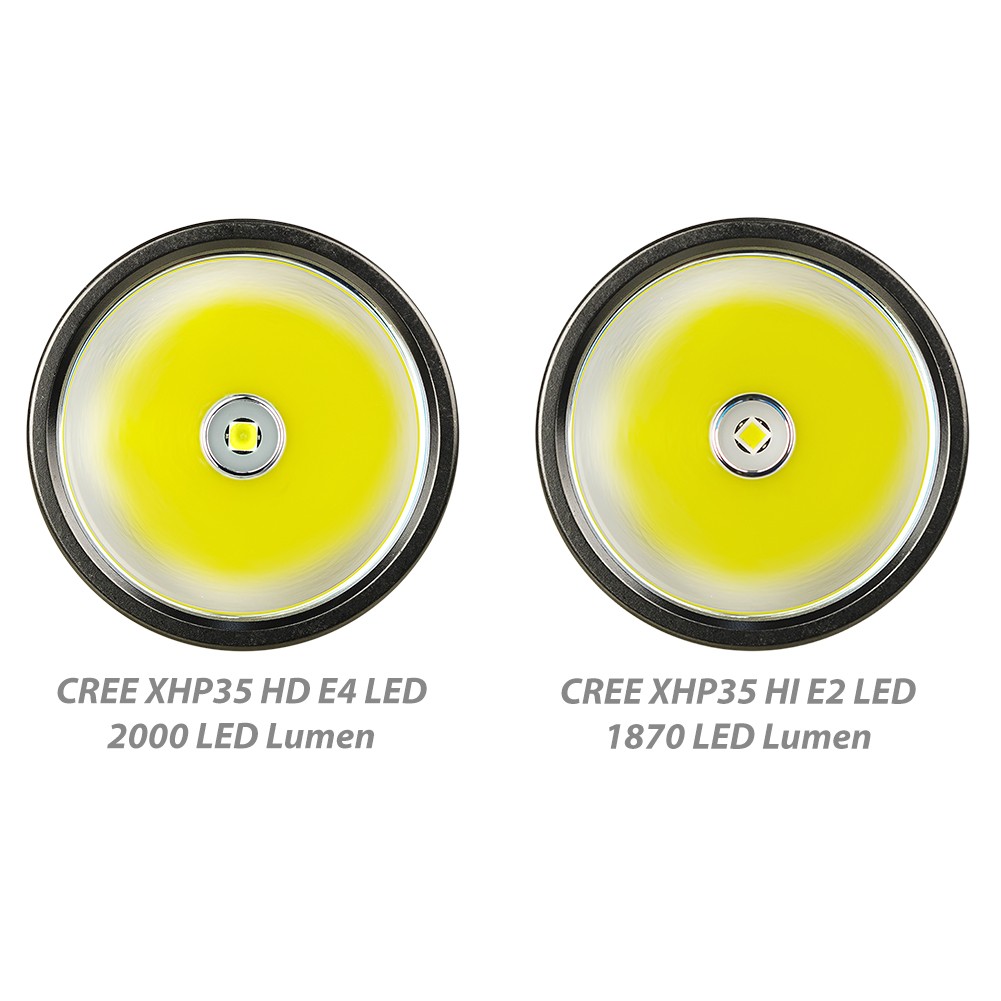

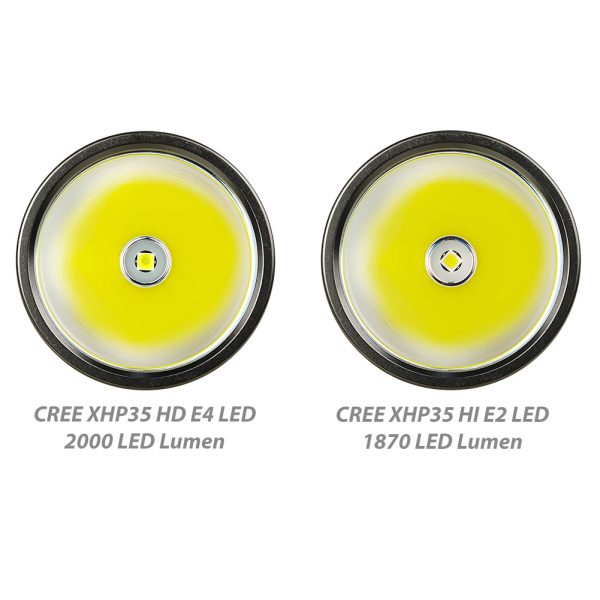

Optional LED1
LED (1)

CREE XHP35 HI E2 Cool White LED

Max output (1)

1870 LED lumen /1427 ANSI lumen

Center lux @ 1 meter (1)

76,500 lux

Beam distance (1)

603 yards / 553 meters

Output levels (1)

1870-1270/760/330/121/16 LED lumen /1427-1020/617/268/98/12 ANSI lumen

Runtime (1)

0.7-1/1.8/5/15/140 hrs

Optional LED2
LED (2)

Nichia 219C 4000K CRI92 R9050 SW40 D240 Neutral White LED

Max output (2)

885 LED lumen / 740 ANSI lumen

Center lux @ 1 meter (2)

37,600 lux

Beam distance (2)

423 yards / 388 meters

Output levels (2)

885-755/508/183/62/8 LED lumen / 740-635/425/155/53/7 ANSI lumen

Runtime (2)

0.9-1.2/2.4/6.5/20/180 hrs

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light at MAX output by pressing the BLACK button switch. Turn on the light at LOWEST output by pressing the WHITE button switch.
  • To turn off the light anytime, press and release the BLACK button switch.



Advanced operations:

  • For MAX output momentary on, press and hold the BLACK button switch for immediate output.
  • To switch between different brightness levels, press and release the WHITE button switch when the flashligh is on.
  • (For example: if you want to turn on the flashlight at the 3rd level, just press and release the white button switch three times from off.)
  • To enter hidden auxiliary levels, cycle through two set of regular output brightness level to enter.
  • For instant MAX output – at any output level, press and hold the BLACK button switch. Release the button to return to previous level.
  • For instant Strobe output – at any output level (even) off), double press and hold the BLACK button switch. Release the button to return to previous level (or off).
  • Programmable startup level – Define the white button startup level by cycling to the desired output level and keep holding the white button for more than five seconds until the blue led indicator turns on.
