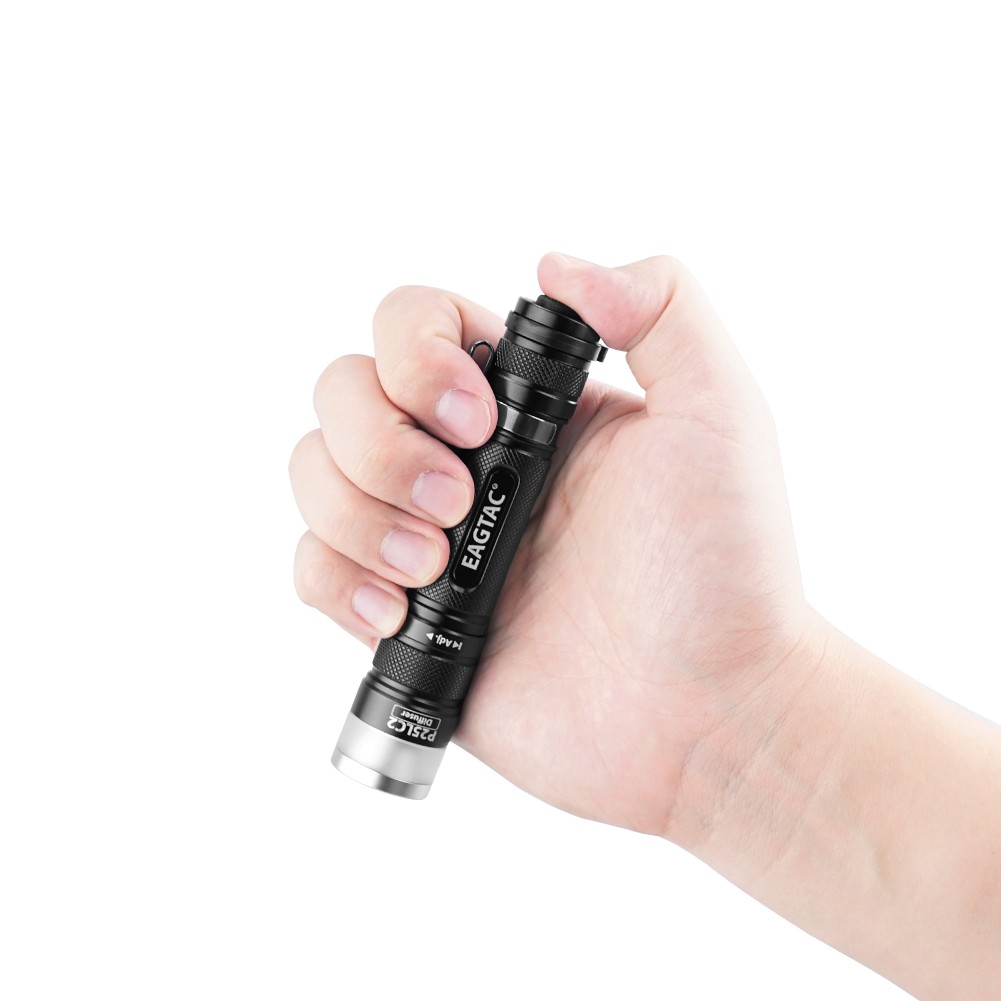

P25LC2-D

  • 1317 LED lumen powered by XM-L2 U4 LED
  • Start-up with any output, four brightness levels, three output modes
  • Spot, diffuser or both on
  • Forward clicky on/off tailcap switch
  • Uses protected 18650 li-ion battery
  • 209 yards / 180 meters maximum beam distance, 180° flood surrounding output
  • Up to 1.5 hrs on MAX output, 200 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

CREE XM-L2 Cool White U4 LED+ Flood LED Array (C.W.)

Max output

1317 LED lumen / 1008 ANSI lumen

Center lux @ 1 meter

9,000 lux

Beam distance

209 yards / 190 meters

Output levels

1317-1065/572/112/4 LED lumen / 1008-813/469/92/3 ANSI lumen

Runtime

1.5/3.5/20/200+ hours (1×18650)
Battery
Battery Type

18650*1 | CR123A*2

Battery included

–

Built-in rechargeable

–

Operating voltage

2.7V – 6V

Battery requirement

–
Control
Control Type

–

Hidden auxiliary outputs

–
Dimensions
Body Diameter

0.85 inches (22 mm)

Head Diameter

1 inches (25.4 mm)

Length

4.9 inches (124 mm)

Weight w/ battery

1.9 ounces (54 grams)
Constructions
Flashlight Body Material

HAIII hard anodization aerospace aluminum

Lens

Harden waterwhite glass lens with anti-reflective coating on both side

Reflector

Smooth aluminum reflector

Waterproof

IPX-8
Optional LED1
LED (1)

CREE XM-L2 Neutral White U2 LED+ Flood LED Array (N.W.)

Max output (1)

1150 LED lumen /880 ANSI lumen

Center lux @ 1 meter (1)

5,100 lux

Beam distance (1)

156 yards / 143 meters

Output levels (1)

–

Runtime (1)

–
Optional LED2
LED (2)

CREE XP-L HI V3 LED

Max output (2)

1122 LED lumen / 860 ANSI lumen
Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light by pressing the tailcap button until it clicks./li>
  • Twist the head to select between three output levels.



Advanced operations:

  • To access the lowest 4th level, turn the head to 3rd level, then 2nd level, and then back to 3rd level within one second.
  • You can pre-selected output level before turning on the light.
  • Cycle through auxiliary modes: tight the head (1st level), and loose the head (3rd level) and then tight the head within one second to enter auxiliary setting. Repeat to cycle through all settings. Turn off the light or loose the head to quit.
  • Toggle SPOT and FLOOD output:
    loose the head (3rd level), and tight the head (1st level) and then loose the head within one second to toggle between spot and flood output settings



Other features:

  • LED direct soldering on copper for maximum heatsink ability
  • User replaceable glass lens
  • Battery reverse polarity protection
  • Ultra low internal resistance phosphor bronze springs (silver coated)
  • Spring loaded positive and negative terminal
  • Custom made silicon oring in grey solid color for glass lens to block glare in SPOT mode
