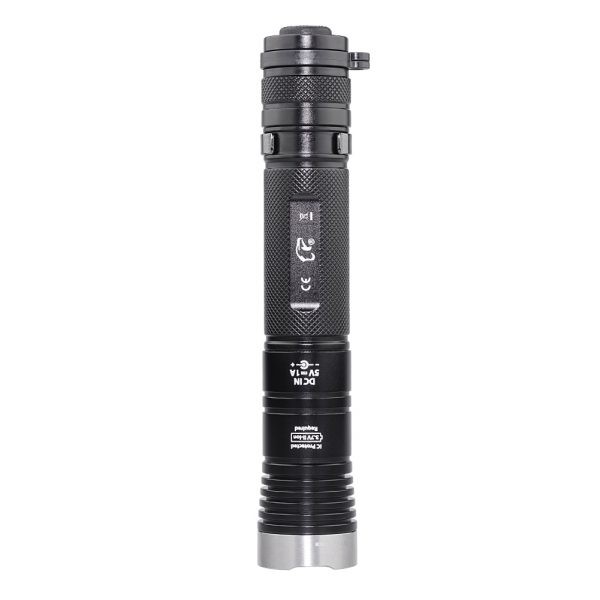

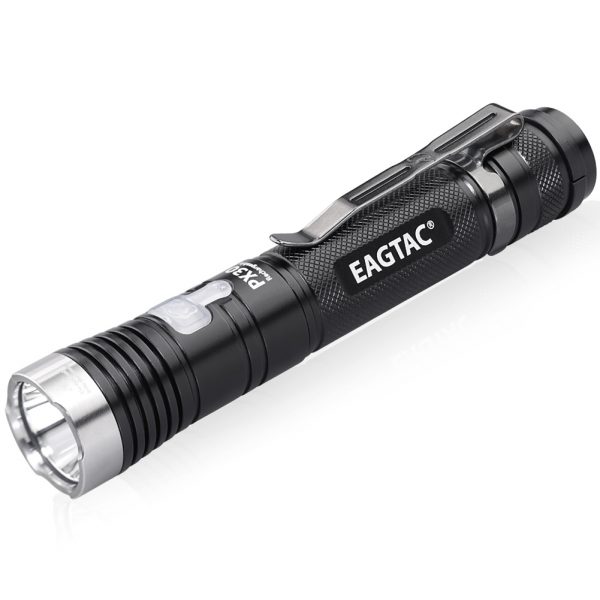

PX30LC2-R

  • 1160 LED lumen powered by XP-L HI LED
  • Five brightness levels, three hidden auxiliary outputs
  • Instant strobe and momentary-on function
  • USB charger, side switch + forward clicky operation
  • Uses protected 18650 li-ion battery (included)
  • 345 yards / 317 meters maximum beam distance
  • Up to 1.5 hrs on MAX output, 200 hrs on low output
Compare
Category:

Description

Additional information

Performance
LED

CREE XP-L HI V3 Cool White LED

Max output

1160 LED lumen / 950 ANSI lumen

Center lux @ 1 meter

25,100 lux

Beam distance

345 yards / 317 meters

Output levels

1160-980/590/221/77/9 LED lumen / 950-810/480/180/64/7 ANSI lumen

Runtime

1.5/2.8/8.5/28/200+ hours (1×18650)
Battery
Battery Type

18650*1 | CR123A*2

Battery included

–

Built-in rechargeable

–

Operating voltage

2.7V – 6V

Battery requirement

–
Control
Control Type

–

Hidden auxiliary outputs

Disorienting Strobe/Beacon (1.67Hz)/S.O.S.
Dimensions
Body Diameter

0.85 inches (22 mm)

Head Diameter

1 inches (25.4 mm)

Length

5.4 inches (137 mm)

Weight w/ battery

– | 4.2 ounces (120 grams)
Constructions
Flashlight Body Material

–

Lens

–

Reflector

Light textured aluminum reflector

Waterproof

IPX-8
Optional LED1
LED (1)

CREE XP-L HI V2 Neutral White LED

Max output (1)

1080 LED lumen / 884 ANSI lumen

Center lux @ 1 meter (1)

–

Beam distance (1)

–

Output levels (1)

1080-912/550/206/72/8.4 LED lumen / 884-753/446/167/60/6.5 ANSI lumen

Runtime (1)

1.5/2.8/8.5/28/200+ hours
Optional LED2
LED (2)

Nichia 219C CRI92 R9050 SW40 4000K D240 LED

Max output (2)

800 LED lumen / 645 ANSI lumen

Center lux @ 1 meter (2)

12,200 lux

Beam distance (2)

241 yards / 221 meters

Output levels (2)

–

Runtime (2)

1.5/2.8/8.5/28/200+ hours
Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light at MAX output by pressing the tailcap button until it clicks./li>
  • Turn on the light at LOW output by holding the side switch button while pressing the tailcap button until it clicks.



Advanced operations:

  • For momentary on function, slightly press the tailcap button
  • To switch between different brightness levels, press the side button switch w/ flashlight on
  • To enter hidden auxiliary mode, press and hold the side button switch for 3 seconds w/ flashlight on



Charging:

  • Remove the waterproof cover and insert the charging cable to charge the battery. User must turn on the flashlight switch at the tailcap to charge.
    (The flashlight will switch off the LED output during charge automatically until the charging cable is disconnected.)
  • The indicator may start flashing when user plug in the charging cable (without turning on the tailacp switch). Switch on the tailcap switch to start charging and the charging indicator will reflect the current charging level.
