Description
SX30A6-D

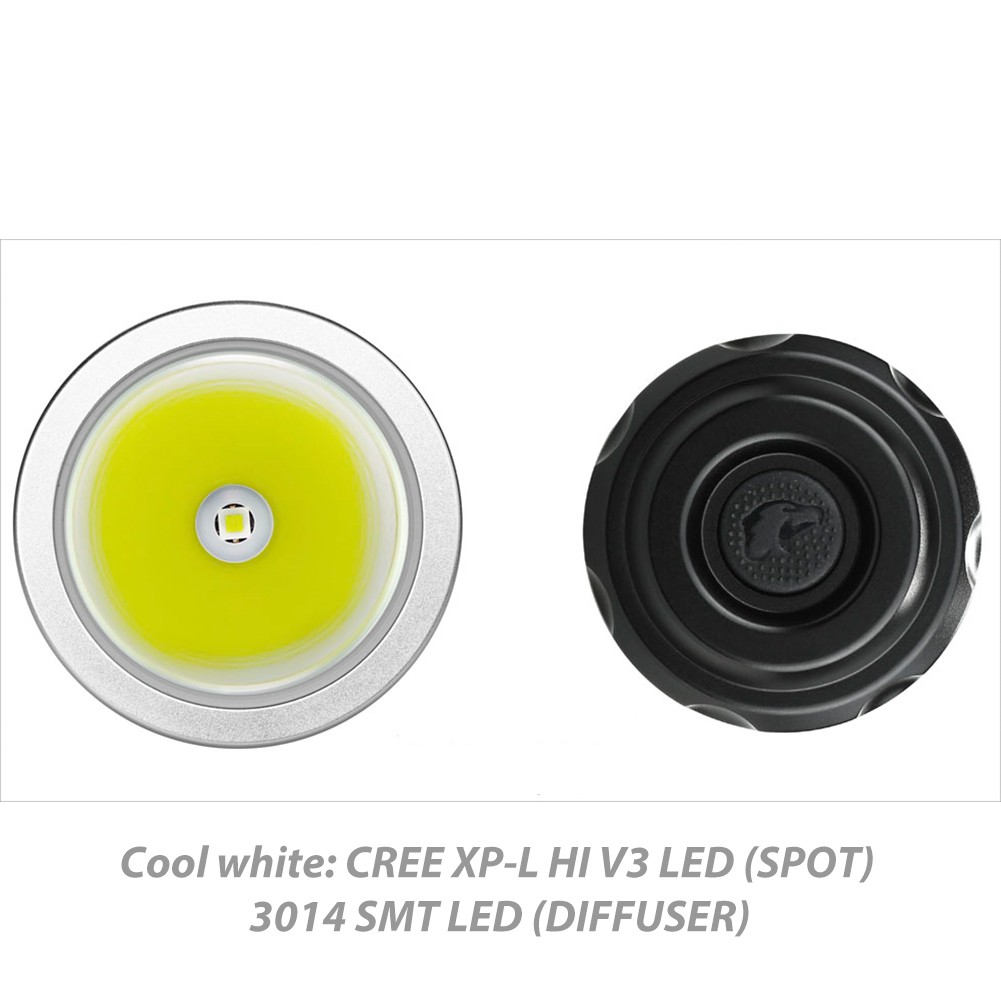

- 1405 LED lumen powered by CREE XP-L HI V3 LED
- SPOT or DIFFUSED output, or Spot + Diffuser
- Five brightness levels, disorienting Strobe/Beacon (1.67Hz)/S.O.S.
- Turn on at MAX or MIN output, instant strobe
- Dual head switch, tailcap switch
- Battery level report system
- Uses 6*AA batteries (1.2V/1.5V/1.7V AA)
- 572 yards / 180 meters maximum beam distance
- Up to 1.6 hrs on MAX output, 200 hrs on low output
Additional information
| Performance | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||
| Battery | ||||||||||||
|
||||||||||||
| Control | ||||||||||||
|
||||||||||||
| Dimensions | ||||||||||||
|
||||||||||||
| Constructions | ||||||||||||
|
||||||||||||
| Optional LED1 | ||||||||||||
|
||||||||||||
How to use?
Basic operations:
- Turn on the light at MAX output by pressing the BLACK button switch. Turn on the light at LOWEST output by pressing the WHITE button switch.
- To turn off the light anytime, press and release the BLACK button switch.
Spot / Diffuser setting:
- Press and hold the BLACK button switch and press the white button switch to cycle between i) spot, ii) diffused, and ii) all LED on setting.
Advanced operations:
- For MAX output momentary on, press and hold the BLACK button switch for immediate output.
- To switch between different brightness levels, press and release the WHITE button switch when the flashligh is on.
- (For example: if you want to turn on the flashlight at the 3rd level, just press and release the white button switch three times from off.)
- To enter hidden auxiliary levels, press and hold the WHITE button switch for 4 seconds when the flashligh is on.
- For instant MAX output – at any output level, press and hold the BLACK button switch. Release the button to return to previous level.
- For instant Strobe output – at any output level (even) off), double press and hold the BLACK button switch. Release the button to return to previous level (or off).
- The optional switch button located at the tailcap is treated as the secondary BLACK switch button.
