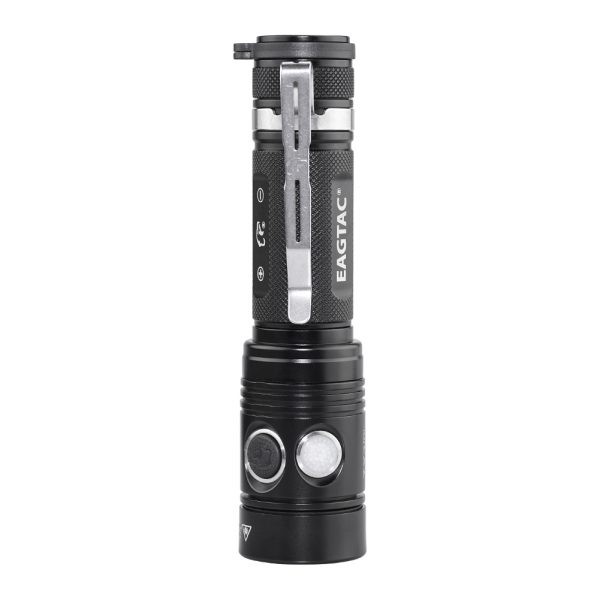

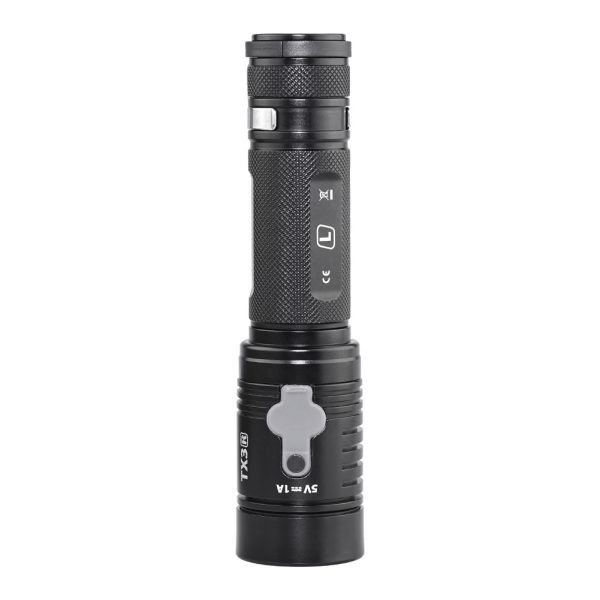

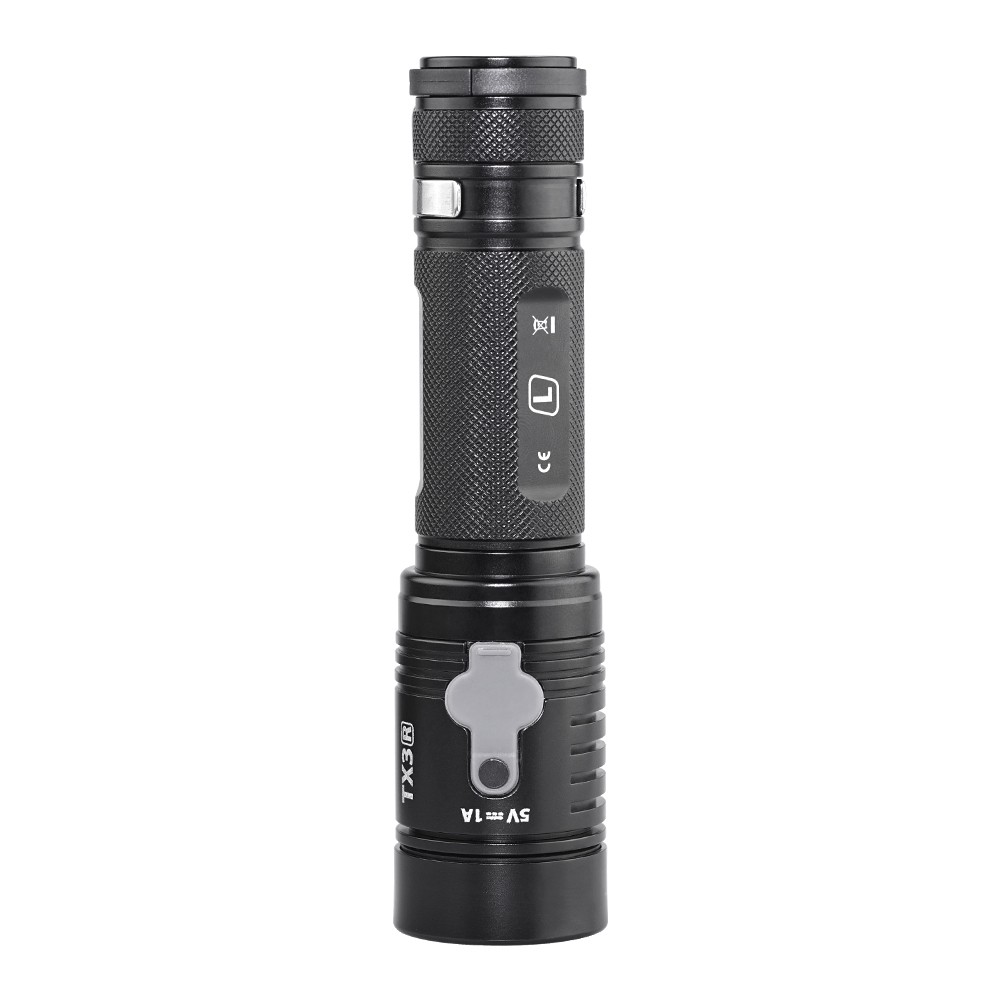

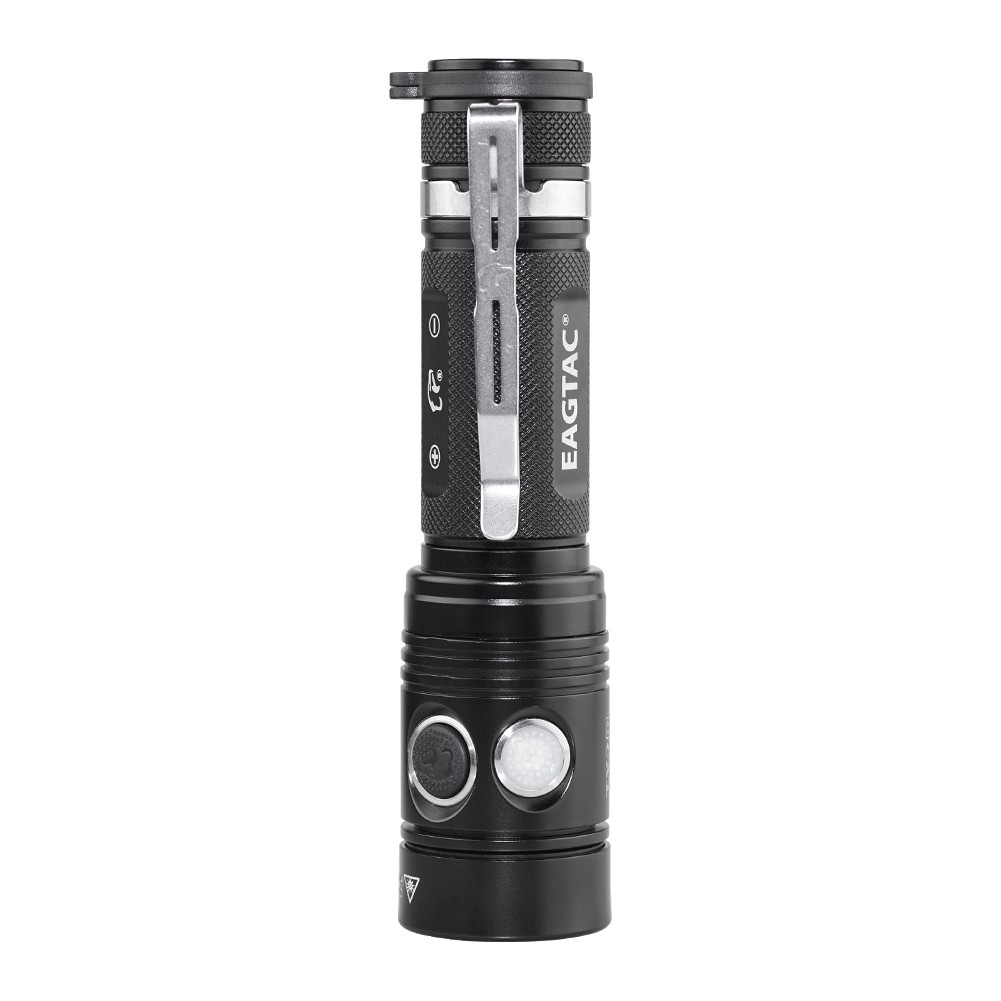

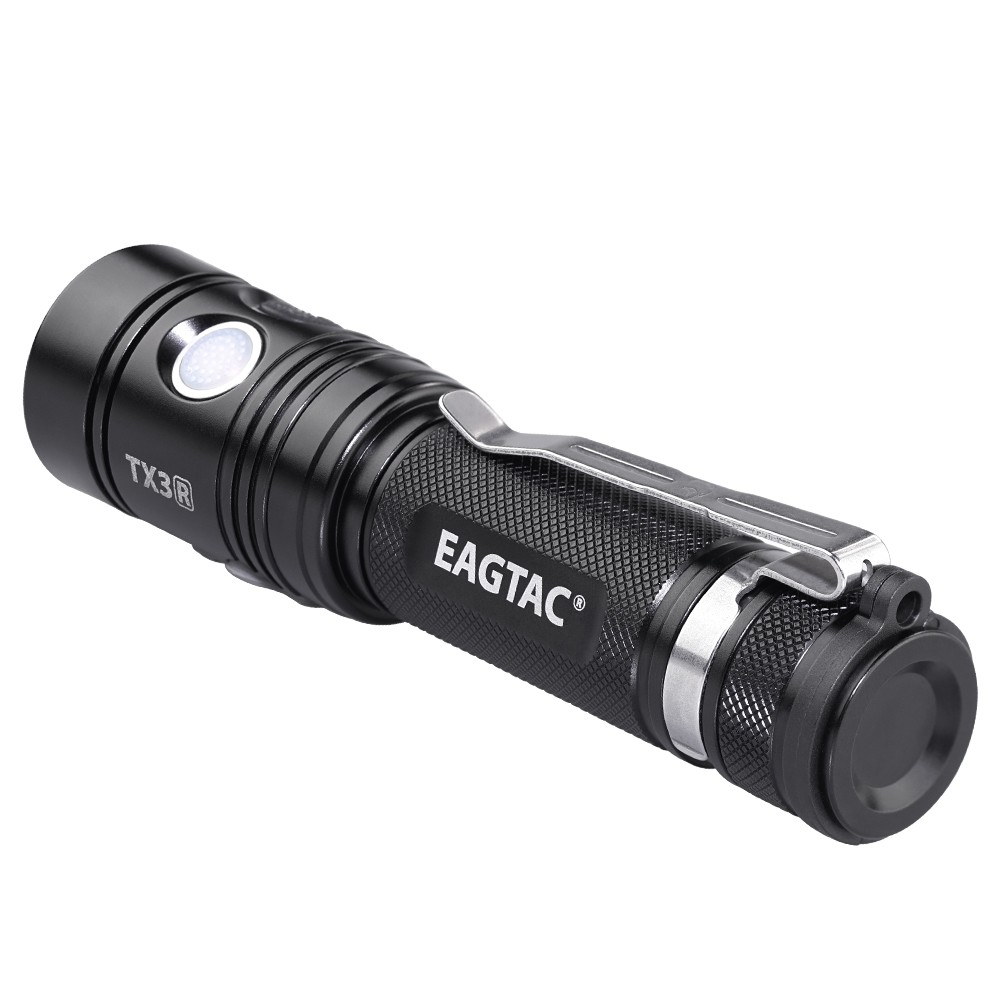

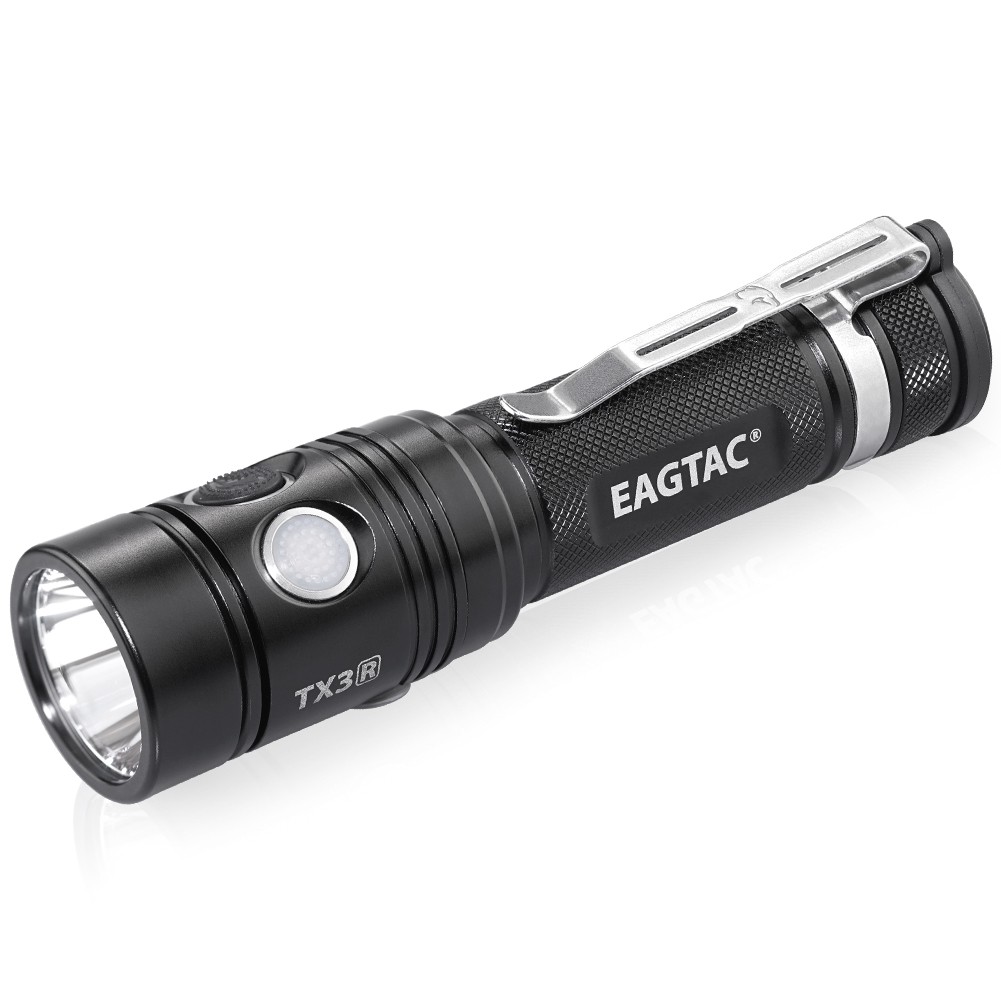

TX3L

  • 3000 LED lumen powered by XHP70.2 LED
  • Five brightness levels, programmable levels
  • Instant on at MIN/MAX level
  • Uses protected 18650 li-ion battery (3.4Ah)
  • 419 yards/385 meters maximum beam distance
  • Up to 0.7 hrs on MAX output, 150 hrs on low output
  • Version: Pro | Base
Compare
Category:

Description

Additional information

Performance
LED

CREE XHP70.2 P2 Cool White LED

Max output

3000 LED lumen / 2500 ANSI lumen

Center lux @ 1 meter

9,350 lux

Beam distance

211 yards / 193 meters

Output levels

3000-2130/1170/600/160/15 LED lumen / 2500-1790/995/510/135/13 ANSI lumen

Runtime

0.5-0.7/1.4/2.9/12.2/150 hours

Battery
Battery Type

18650*1

Battery included

Yes

Built-in rechargeable

Type-C USB

Operating voltage

2.7V – 4.2V

Battery requirement

Control
Control Type

Hidden auxiliary outputs

Disorienting Strobe/Beacon (1.67Hz)/S.O.S.

Dimensions
Body Diameter

1 inch (25 mm)

Head Diameter

1.3 inches (33 mm)

Length

5.1 inches (130 mm)

Weight w/ battery

5.8 ounces (164 grams)

Constructions
Flashlight Body Material

HAIII hard anodization aerospace aluminum

Lens

Harden waterwhite glass lens with anti-reflective coating on both side

Reflector

Smooth aluminum reflector

Waterproof

IPX-8

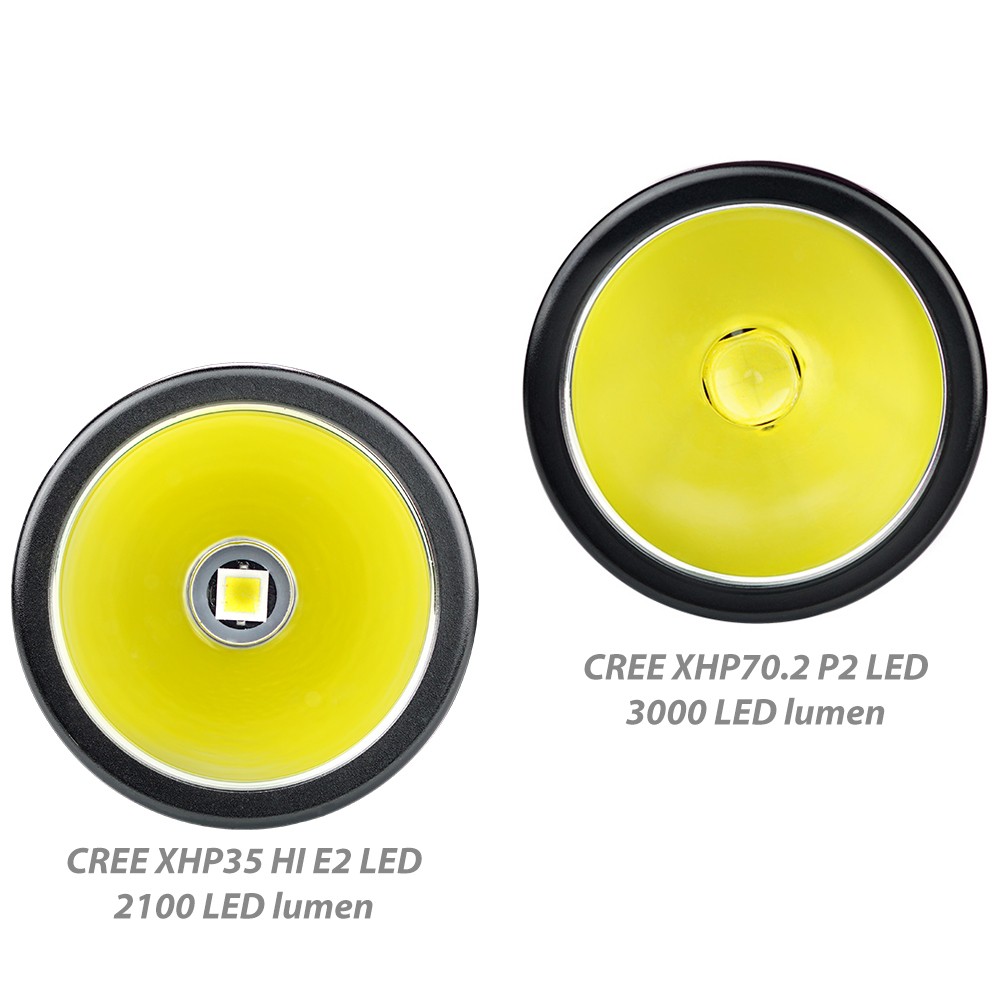

Optional LED1
LED (1)

CREE XHP35 HI E2 Cool White LED

Max output (1)

2100 LED lumen / 1700 ANSI lumen

Center lux @ 1 meter (1)

37,000 lux

Beam distance (1)

419 yards / 385 meters

Output levels (1)

2100-1550/970/550/145/18 LED lumen /1700-1300/810/460/120/15 ANSI lumen

Runtime (1)

0.5-0.7/1.3/2.8/12.5/130 hours

Optional LED2
LED (2)

CREE XHP70.2 N4 Neutral White LED

Max output (2)

2790 LED lumne / 2325 ANSI lumen

Center lux @ 1 meter (2)

Beam distance (2)

Output levels (2)

2790-1981/1088/558/149/14 LED lumen / 2325-1665/925/474/126/12 ANSI lumen

Runtime (2)

0.5-0.7/1.4/2.9/12.2/150 hours

Optional LED3
LED (3)

CREE XHP35 HI D4 Neutral White LED

Max output (3)

1953 LED lumen / 1581 ANSI lumen

Center lux @ 1 meter (3)

Beam distance (3)

Output levels (3)

1953-1442/902/512/135/17 LED lumen / 1581-1209/753/428/112/14 ANSI lumen

Runtime (3)

0.5-0.7/1.3/2.8/12.5/130 hours

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light at MAX output by pressing the BLACK button switch.
  • Turn on the light at LOWEST (programmable) output by pressing the WHITE button switch
  • To turn off the light anytime, press and release the BLACK button switch.



Advanced operations:

  • To program the startup output level, switch to the desired output level and continuously pressing and holding the button for three seconds until the side LED turns on.
  • (Flashlight w/ programmable feature) In rare occasion user may experience the absence of lowest output level from a brand new purchase. If this is case, set the programmable startup level once will initialize the memory setting and will take care of this issue once and for all.
  • For MAX output momentary on, press and hold the BLACK button switch for immediate output.
  • To switch between different brightness levels, press and release the WHITE button switch when the flashligh is on.
  • To enter hidden auxiliary levels, cycle through at least two cycle of regular output.
  • For instant MAX output – at any output level, press and hold the BLACK button switch. Release the button to return to previous level.
  • For instant Strobe output – at any output level (even off), double press and hold the BLACK button switch. Release the button to return to previous level (or off).



Charging:

  • Remove the waterproof silicon cap and insert the charging power plug to charge.
  • Blue side LED indicates the battery is being charged. It reports charging percentage by blinking.
