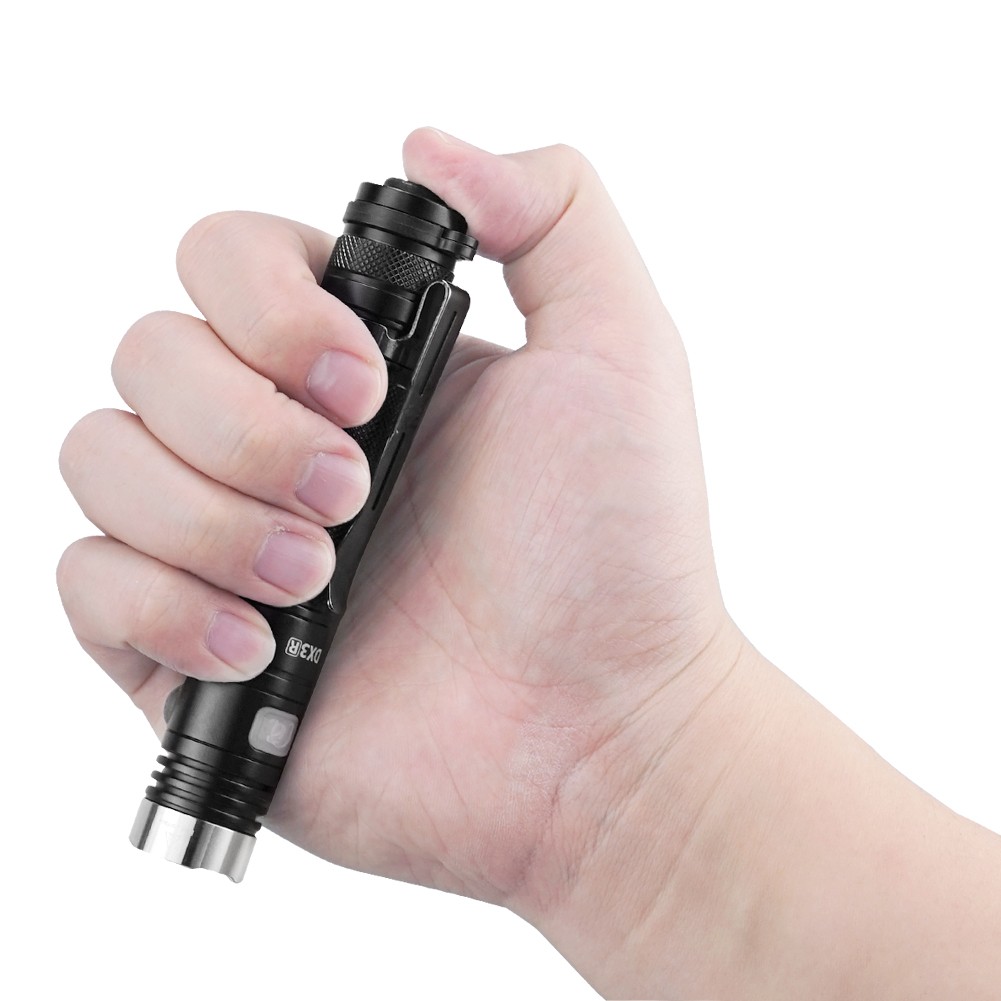

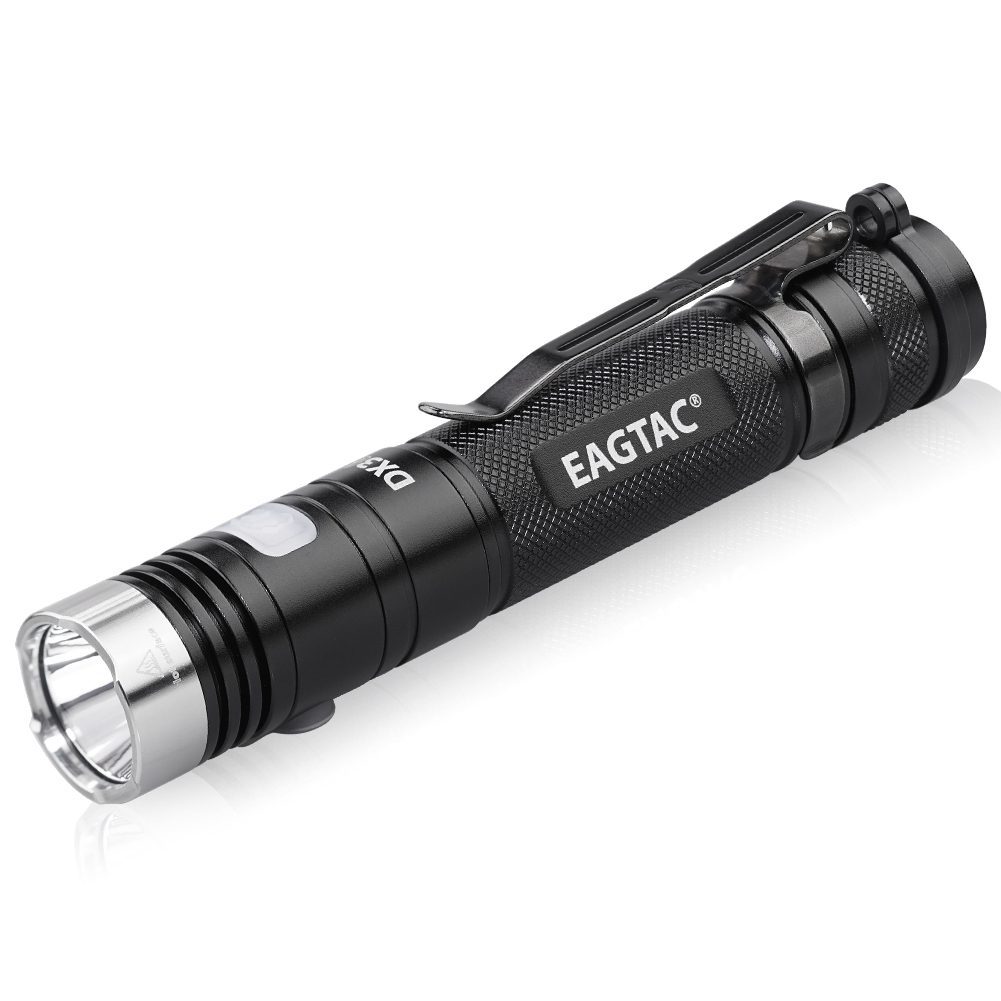

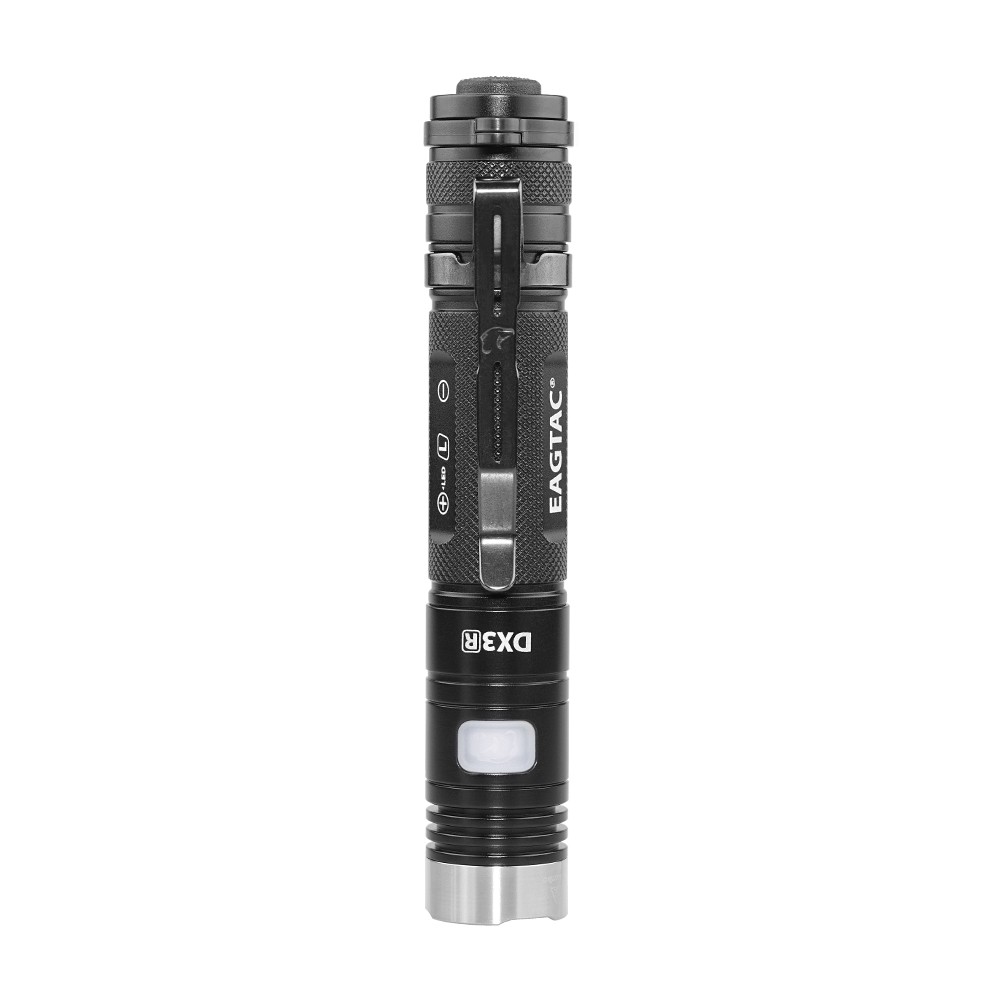

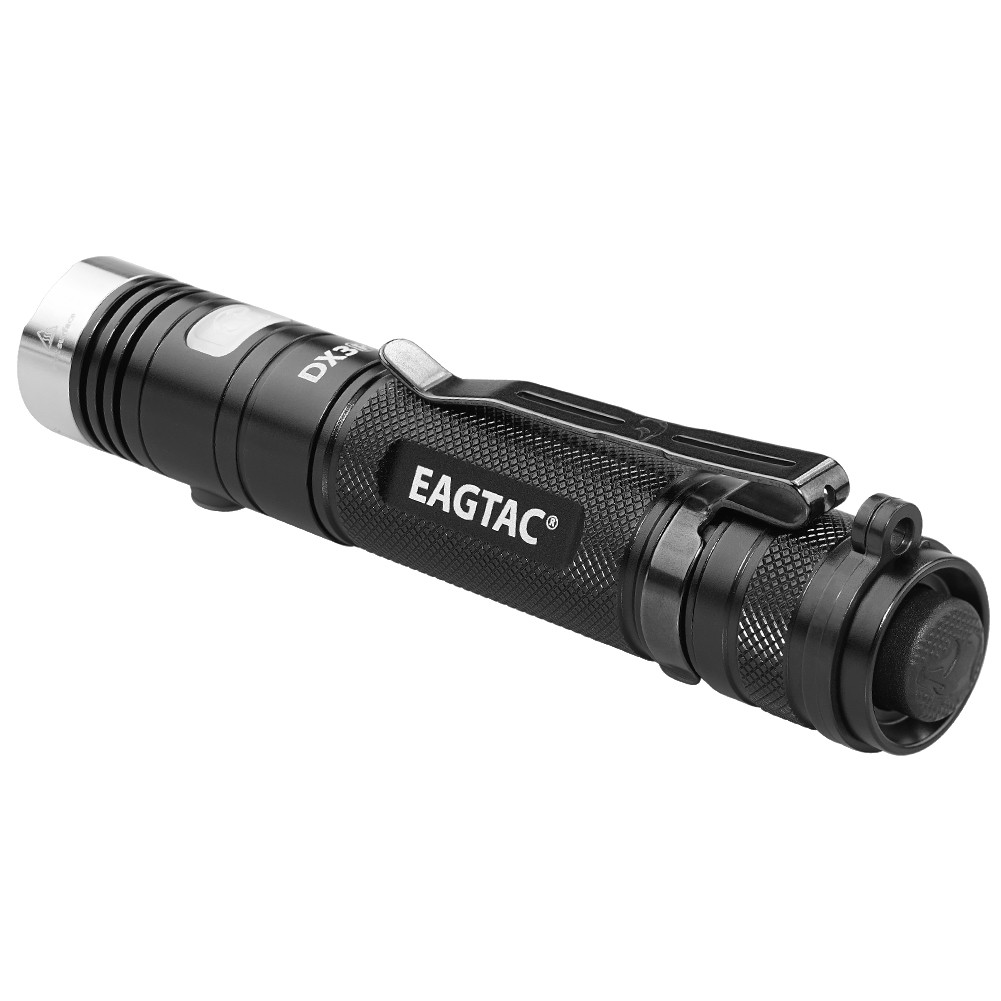

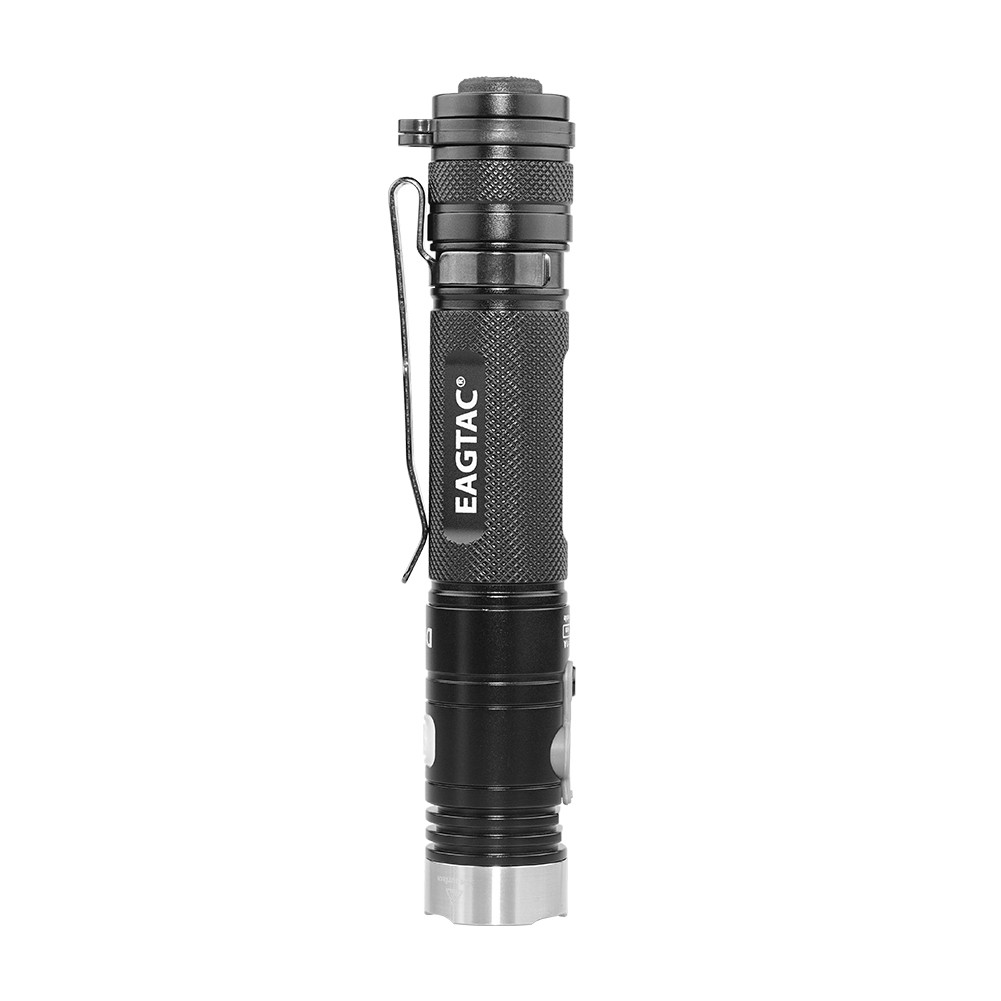

DX3L

  • 2500 LED lumen powered by CREE XHP50.2 LED
  • Five output levels + two hidden AUX outputs
  • Side switch + tactical forward clicky tailcap switch
  • Micro-USB fast charging; Programmable start-up level; Instant MAX/MIN
  • Includes protected 18650 li-ion battery (10A)
  • 185 yards / 170 meters maximum beam distance
  • Up to 1.1 hrs on MAX output, 190 hrs on low output
Compare
Category: Tags: ,

Description

Additional information

Performance
LED

CREE XHP50.2 K2 Cool White LED

Max output

2500 LED lumen / 1850 ANSI lumen

Center lux @ 1 meter

7200 lux

Beam distance

185 yards / 170 meters

Output levels

2500-1580/1180/430/150/15 LED lumen / 1850-1280/970/360/125/12 ANSI lumen

Runtime

0.7-1.1/1.6/5.4/18/190 hours

Battery
Battery Type

18650*1

Battery included

Yes

Built-in rechargeable

Micro-USB

Operating voltage

2.7V – 4.2V

Battery requirement

Battery diameter (18-18.8mm) / length (65-68.8mm) | Button-Top | Protection PCB (10A up)

Control
Control Type

Side switch | Tactical forward clicky tailcap switch

Hidden auxiliary outputs

Disorienting Strobe / Beacon (1.67Hz)

Dimensions
Body Diameter

0.85 inches (22 mm)

Head Diameter

0.9 inches (22.5 mm)

Length

5.1 inches (131 mm)

Weight w/ battery

3.8 ounces (108 grams)

Constructions
Flashlight Body Material

HAIII hard anodization aerospace aluminum

Lens

Harden waterwhite glass lens with anti-reflective coating on both side

Reflector

Smooth aluminum reflector

Waterproof

IPX-8

Optional LED1
LED (1)

CREE XHP50.2 J4 Neutral White LED

Max output (1)

2325 LED lumen /1720 ANSI lumen

Center lux @ 1 meter (1)

6600 lux

Beam distance (1)

177 yards / 162 meters

Output levels (1)

2325-1470/1100/400/140/14 LED lumen / 1720-1190/905/335/120/12 ANSI lumen

Runtime (1)

0.7-1.1/1.6/5.4/18/190 hours

Picture gallery: Download
User manual: Download



How to use?

Basic operations:

  • Turn on the light at MAX output by pressing the tailcap button until it clicks.
  • Turn on the light at lowest output (programmable) by holding the side switch button while pressing the tailcap button until it clicks.
  • For momentary on function, slightly press the tailcap button
  • To switch between different brightness levels, press the side button switch w/ flashlight on
  • To enter hidden auxiliary mode, press the side switch to cycle through two sets of standard output level to enter



Advanced operations:

  • Programmable start-up feature: To program the lowest output start-up level to any other level, press the hold the side switch for at least five seconds at other output level to set it as the start-up output level.
  • Tail strobe feature: Turn the flashlight on and off 20 times (one second or less between each click) to toggle this feature. With the tailcap strobe setting enabled, a double press of the switch button (within one second) will activate the strobe output.



Charging:

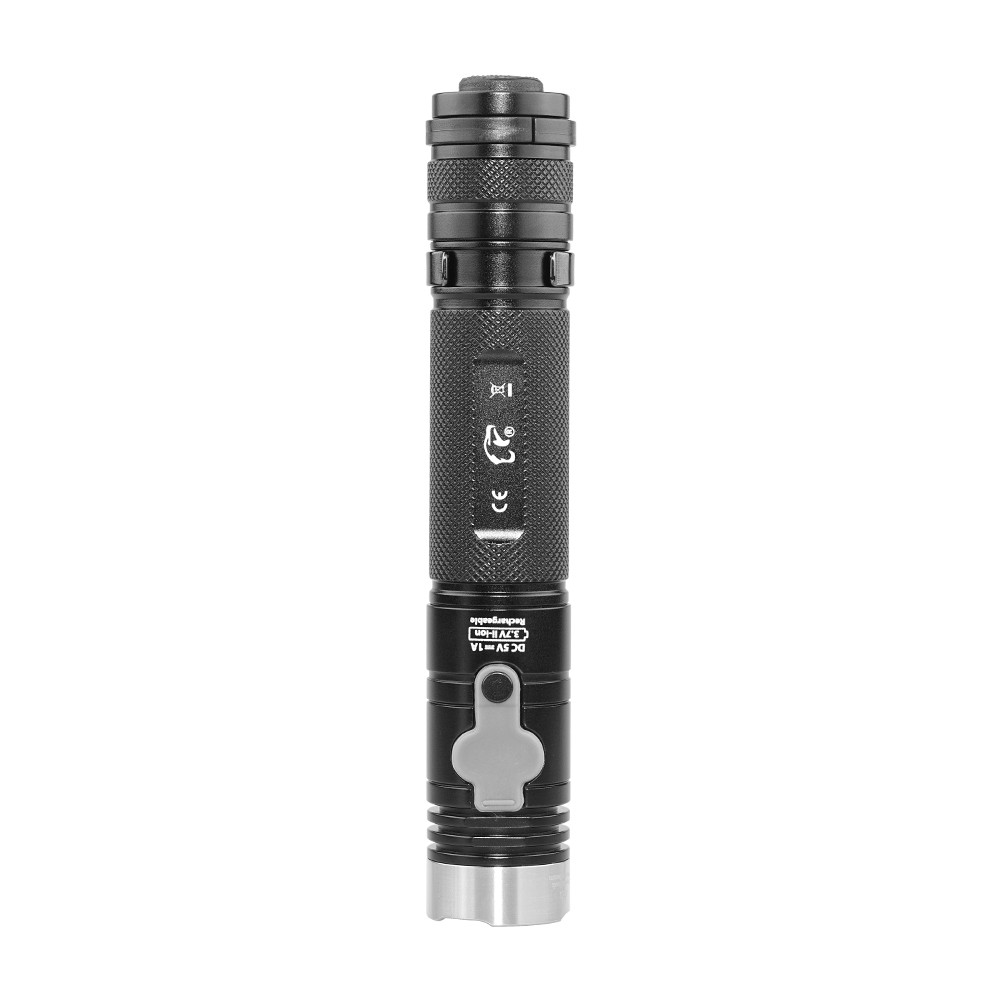

  • Remove the waterproof silicon cap, insert the charging power plug, and turn on the flashlight tailcap switch to charge.
  • Blue side LED indicates the battery is being charged. It reports charging percentage by blinking.
  • When charging is done, remove the charging power plug and turn off the flashlight tailcap switch (wait for a few seconds to let the flashlight circuit to reset itself from charging lock-out status to normal status).
  • When forcing the flashlight to start in high output mode using depleted battery, flashlight will blink to warn user that the battery is unable to keep up the high power input demand. User should switch to lower output and charge the battery as soon as possible.
